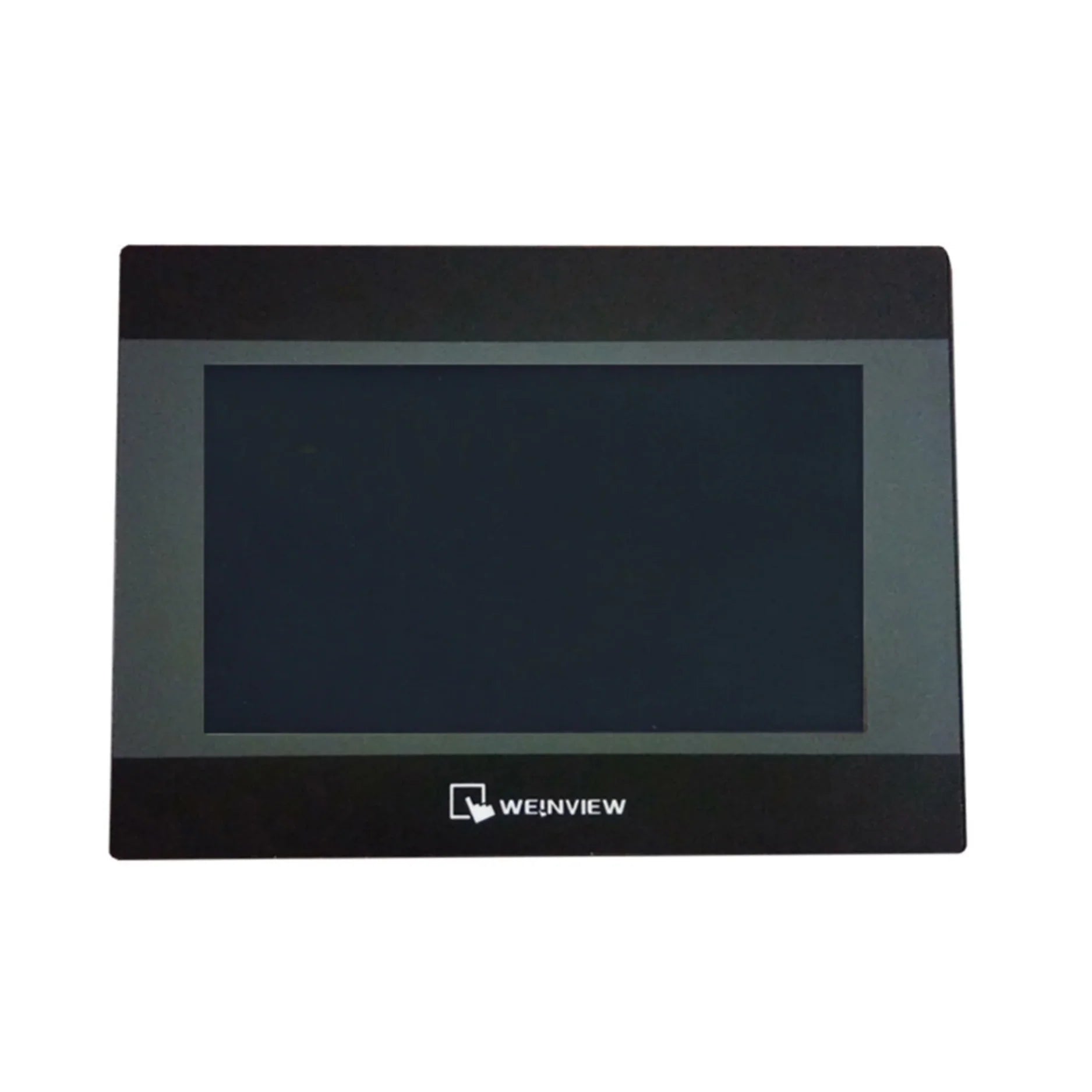

Weintek TK6071iQ

Overview

Elevate your industrial control with the Weintek TK6071iQ, an exceptionally versatile 7-inch Human Machine Interface designed for seamless operation and robust performance. This compact HMI solution perfectly balances essential functionality with powerful connectivity, making it an indispensable asset for a wide array of automation scenarios. Engineered by Weintek, a leader in HMI technology, the TK6071iQ brings together a sharp resistive touchscreen with comprehensive communication options, including both Ethernet and serial ports, to ensure integration into your existing systems is straightforward and efficient. Its intuitive design is backed by the celebrated EasyBuilder Pro software, empowering engineers to develop and deploy projects with remarkable speed and flexibility across various PLC ecosystems.

Key Features

• Vibrant 7" Resistive Touchscreen: Experience crisp visuals and precise interaction on an 800x480 resolution display, perfect for monitoring critical process data.
• Integrated Ethernet Port: Facilitates high-speed network communication, enabling remote access, data exchange, and simplified system integration.
• Flexible Serial Connectivity: Equipped with RS-232 and RS-485 ports, ensuring broad compatibility with a multitude of industrial control devices and PLCs.
• Optimized Compact Design: Thoughtfully engineered for minimal footprint, allowing for easy installation in space-constrained control panels.
• Robust Front Panel Protection: Features NEMA4/IP65 compliance, providing superior resistance against dust and water ingress in challenging industrial environments.
• Data Handling Capabilities: Includes a USB Host port and an SD Card Slot to support effortless data backup, logging, and project transfers.
• EasyBuilder Pro Software Support: Leverage the full power of Weintek's acclaimed development environment for rapid application creation and deployment.

Technical Specifications

• Model Designation: TK6071iQ
• Display Technology: 7” TFT LCD panel with 800 x 480 pixel resolution
• Touch Interface: Durable 4-wire resistive touch panel for reliable input
• Processor Core: High-performance 32-bit RISC architecture
• Memory Configuration: 256MB Flash memory coupled with 128MB RAM
• Network Interface: 1 x 10/100 Mbps Ethernet port
• Serial Communication:
  • COM1: RS-232
  • COM2: RS-485 (2-wire configuration)
• USB Port: 1 x USB 2.0 Host
• Expandable Storage: SD card slot for enhanced backup and data logging functions
• Power Requirements: 24V DC ±15% input
• Power Consumption: Approximately 400 mA at 24VDC
• Panel Cutout Dimensions: 192 x 138 mm
• Overall Dimensions (WxHxD): 200 x 146 x 34 mm
• Operational Temperature Range: 0°C to +50°C
• Mounting Type: Designed for straightforward panel mounting
• Front Panel Rating: IP65 for environmental protection
• Configuration Software: Compatible with EasyBuilder Pro

Applications

The Weintek TK6071iQ is engineered to thrive in a diverse range of industrial settings, providing a dependable and user-friendly interface for various machinery and systems. Its robust feature set makes it an excellent choice for:

• Streamlining control in small to medium-sized machine integration projects
• Creating intuitive basic HMI solutions for automated processes
• Enhancing user interaction on packaging and assembly equipment
• Visualizing data in energy management and monitoring systems
• Serving as a powerful and adaptable display for OEM machinery

Why Choose This Model?

Opting for the Weintek TK6071iQ means investing in a solution that delivers exceptional value without compromising on reliability. This model stands out for its:

• Economical Efficiency: Provides a comprehensive set of essential functionalities at a highly competitive price point, ensuring excellent ROI.
• Industrial-Grade Durability: Constructed to withstand the rigors of industrial environments, offering reliable operation in demanding conditions.
• Consistent Performance: Delivers unwavering stability and accuracy for all standard control and monitoring tasks.
• Seamless Integration: Designed for easy setup and integration with major PLC brands, reducing deployment time and effort.

Order Now

Unlock the full potential of your industrial automation projects. The Weintek TK6071iQ is readily available and ships worldwide, ensuring you can quickly implement this advanced HMI solution wherever your operations are located. Contact us today or add to your cart to secure this indispensable component for your control systems.
