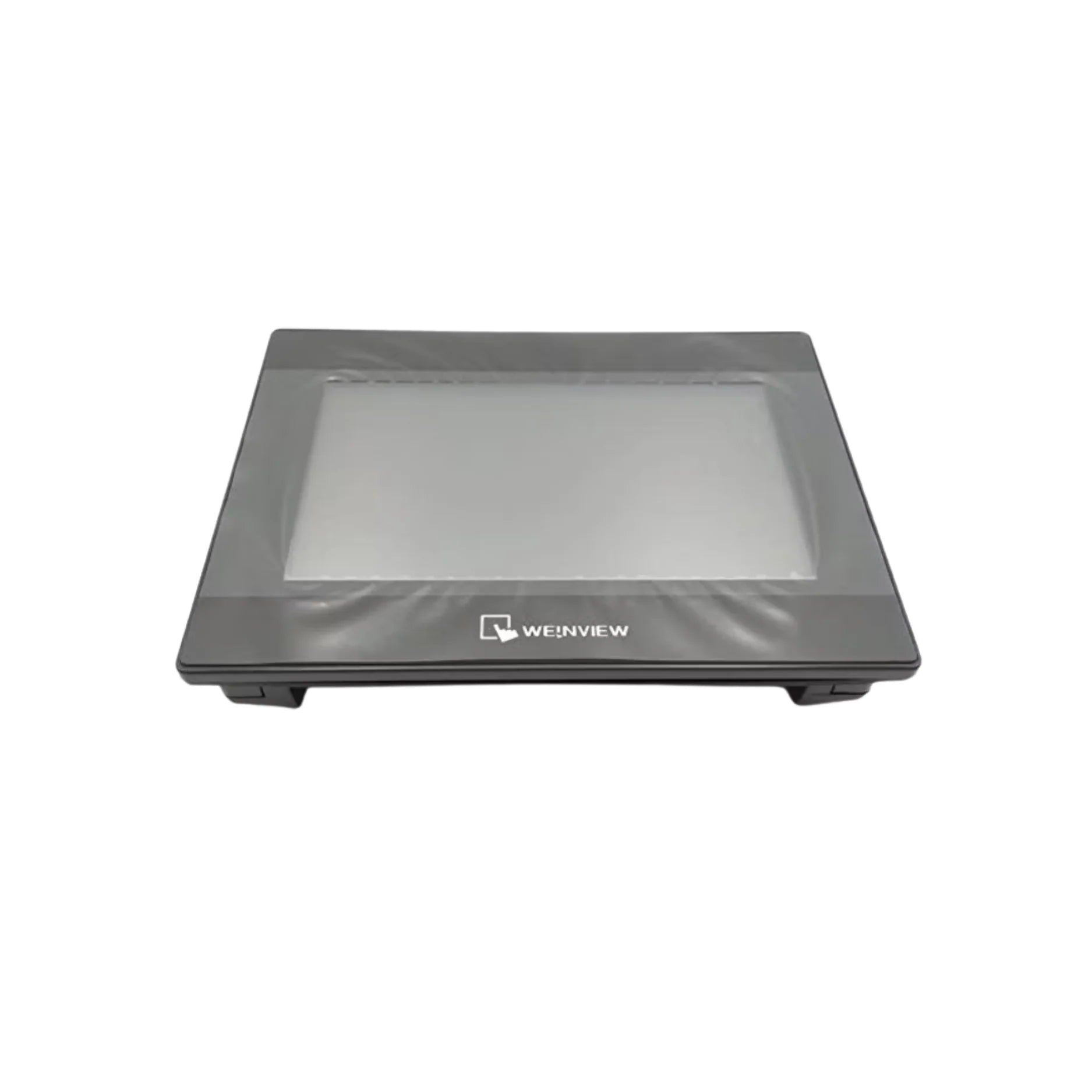

Weintek TK6070iP

Overview

Unleash powerful and intuitive control in your industrial operations with the Weintek TK6070iP, a sophisticated 7-inch Human Machine Interface. This HMI is engineered to streamline machine interaction and process oversight, offering a brilliant 800×480 pixel TFT LCD display that renders 65,536 vibrant colors for exceptional visual clarity. Designed for resilience, its IP65-rated front panel ensures unfaltering performance even in the most challenging industrial environments, providing a robust solution for demanding control applications.

Key Features

• Precision Display: Experience crisp visuals on a 7-inch TFT LCD, boasting an 800×480 resolution and a rich 65,536-color palette for superior graphic presentation.
• Responsive Touch Panel: Interact seamlessly via the highly accurate 4-wire resistive touch screen, providing reliable input for all your control commands.
• High-Speed Processing: Driven by a 32-bit RISC CPU clocked at 400 MHz, this HMI delivers rapid data processing and smooth operation for critical tasks.
• Ample Memory: Benefit from generous memory resources, featuring 128 MB of Flash memory and 64 MB of DRAM, ensuring efficient application execution and data storage.
• Reliable Power Input: Operates efficiently with a 24 V DC power supply, offering a tolerance of ±20% for stable performance across varying power conditions.
• Versatile Connectivity: Equipped with COM1 (RS-232) and COM2 (RS-485 2W/4W) for broad device compatibility, plus a convenient USB 2.0 port (Mini USB for swift program downloads).
• Integrated Real-Time Clock: A built-in RTC ensures accurate time stamping and scheduling for critical operational data.
• Industrial-Grade Construction: Housed within a durable industrial plastic enclosure, engineered to withstand the rigors of factory environments.
• Optimized Dimensions: Compact physical footprint of 200.4 × 146.5 × 34 mm with a precise panel cutout of 192 × 138 mm, facilitating easy integration into control panels.
• Lightweight Design: Weighing approximately 0.52 kg, it contributes minimally to the overall weight of integrated systems.
• Software Compatibility: Fully supported by EasyBuilder 8000 V4.65.06 or later, simplifying project development and deployment.
• Certified Quality: CE compliant, guaranteeing adherence to European safety, health, and environmental protection requirements.

Technical Specifications

• Display Type: 7" TFT LCD
• Resolution: 800×480 pixels
• Colors: 65,536
• Touch Technology: 4-wire resistive
• CPU: 32-bit RISC, 400 MHz
• Flash Memory: 128 MB
• DRAM: 64 MB
• Input Voltage: 24 V DC ±20%
• Serial Ports: COM1 (RS-232), COM2 (RS-485 2W/4W)
• USB Port: USB 2.0 (Mini USB for download)
• RTC: Yes
• Enclosure Material: Industrial Plastic
• Overall Dimensions (W×H×D): 200.4 × 146.5 × 34 mm
• Panel Cutout: 192 × 138 mm
• Approximate Weight: 0.52 kg
• Supported Software: EasyBuilder 8000 V4.65.06+
• Certifications: CE

Applications

The Weintek TK6070iP is a versatile HMI, perfectly suited for a diverse range of industrial scenarios where robust control and clear visualization are paramount. Its capabilities extend across:

• Advanced Industrial Automation Systems
• Precision Machine Control Panels
• Real-time Process Monitoring and Data Acquisition
• Sophisticated Packaging Machinery Operations
• Efficient Material Handling Equipment Management

Why Choose This Model?

Opting for the Weintek TK6070iP means investing in a solution that brings tangible benefits to your industrial setup:

• Space-Saving Footprint: Its intelligent, compact design allows for seamless integration into existing control panels without consuming valuable space.
• Enduring Durability: The IP65-rated front panel ensures exceptional resistance to dust and water splashes, guaranteeing operational continuity in challenging environments.
• Seamless Integration: With a comprehensive set of communication interfaces, including RS-232, RS-485, and USB, this HMI offers unparalleled flexibility for connecting with various industrial devices.
• Effortless Development: Leverage the power of EasyBuilder 8000 software to accelerate project creation, reduce development time, and simplify complex automation tasks.
• Unwavering Reliability: Engineered for consistent, dependable performance, the TK6070iP is a cornerstone for critical applications where uptime and precision are non-negotiable.

Order Now

Enhance your industrial control capabilities and optimize operational efficiency by integrating the Weintek TK6070iP into your systems. Experience the difference that a high-performance, durable, and user-friendly HMI can make. Secure your unit today and take the next step towards superior automation.
