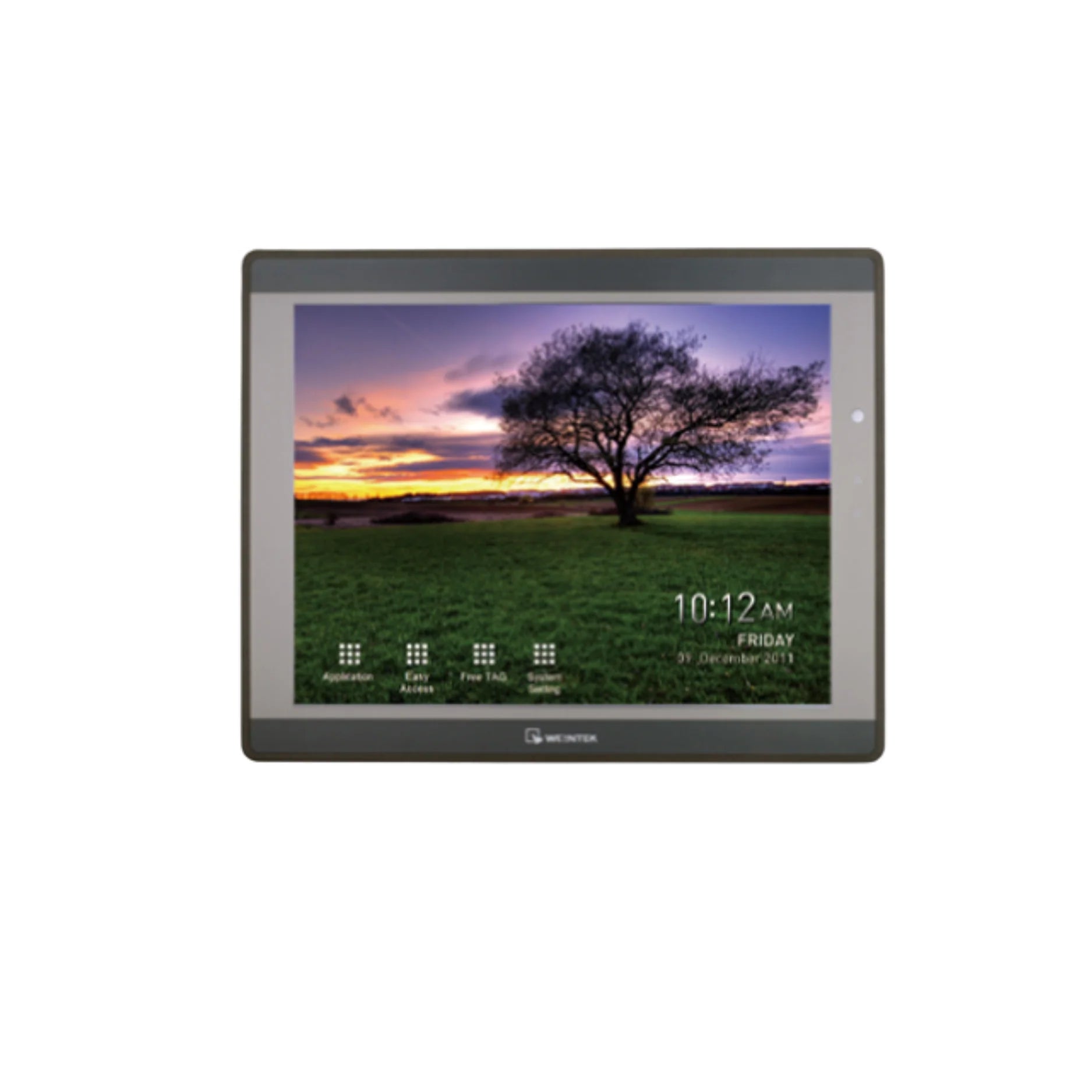

Weintek MT8150X

Overview

Unleash unparalleled control and visualization in your industrial setting with the Weintek MT8150X Human Machine Interface. This robust 15-inch HMI touchscreen is engineered to excel in the most demanding environments, providing precise machine control and comprehensive operational monitoring capabilities. Boasting a vibrant 1024x768 pixel TFT LCD with 65,536 colors, the MT8150X delivers crystal-clear visuals and an intuitive interface for operators. Its formidable design, highlighted by an IP65-rated front panel, ensures consistent performance even when exposed to dust and water jets, making it an indispensable asset for various industrial applications where durability is paramount.

Key Features

• Expansive Visuals: Immerse yourself in a brilliant 15-inch TFT LCD, offering a sharp 1024x768 resolution and a rich palette of 65,536 colors for detailed data representation.
• Responsive Interaction: Navigate with ease using the precise and durable 4-wire resistive touch panel, designed for reliable input in busy industrial settings.
• High-Performance Processing: Powering your operations is a rapid 32-bit CISC CPU clocking in at 500 MHz, ensuring swift command execution and smooth graphical transitions.
• Ample Memory Resources: Benefit from substantial onboard memory, including 256 MB Flash for system and project storage, alongside 256 MB RAM for efficient multitasking.
• Versatile Powering: Operates reliably on a standard 24 V DC input, accommodating typical industrial power supplies with a ±10% tolerance.
• Comprehensive Connectivity: Equipped with a full suite of communication ports: COM1 (RS-232/RS-485 2W/4W), COM2 (RS-232), COM3 (RS-232/RS-485 2W), dual USB 2.0 Host ports, and a 10/100 Base-T Ethernet port for seamless network integration.
• Integrated Real-Time Clock: Maintain accurate timekeeping with the built-in RTC, crucial for data logging and event timestamping.
• Rugged Construction: Encased in a sturdy aluminum enclosure, providing exceptional protection against physical impacts and environmental factors.
• Optimized Dimensions: Precisely engineered with dimensions of 366 × 293 × 57 mm, and a panel cutout of 352 × 279 mm for straightforward installation.
• Lightweight Design: Weighing approximately 2.9 kg, facilitating easier handling and mounting without compromising on robustness.
• Superior Protection: Adheres to NEMA4 and IP65 standards for the front panel, guaranteeing protection against dust ingress and water jets, enabling deployment in challenging industrial environments.
• Wide Operating Range: Performs consistently across a broad temperature spectrum, from 0 °C to 50 °C, and stores safely from -20 °C to 60 °C.
• Humidity Resilient: Functions optimally within 10% to 90% RH (non-condensing) relative humidity, underscoring its industrial readiness.
• Globally Compliant: Carries CE certification, affirming its adherence to European safety, health, and environmental protection requirements.
• Seamless Software Integration: Fully compatible with Weintek's intuitive EasyBuilder software, streamlining project development and deployment.

Technical Specifications

• Display Size: 15-inch TFT LCD
• Resolution: 1024×768 pixels
• Color Depth: 65,536 colors
• Touch Panel Type: 4-wire resistive
• Processor: 32-bit CISC CPU, 500 MHz
• Flash Memory: 256 MB
• RAM: 256 MB
• Power Input: 24 V DC ±10%
• Serial Ports: COM1 (RS-232/RS-485 2W/4W), COM2 (RS-232), COM3 (RS-232/RS-485 2W)
• USB Ports: USB 2.0 Host x 2
• Ethernet Port: 10/100 Base-T x 1
• RTC: Built-in
• Enclosure Material: Aluminum
• Dimensions (W×H×D): 366 × 293 × 57 mm
• Panel Cutout: 352 × 279 mm
• Weight: ~2.9 kg
• Front Panel Protection: NEMA4 / IP65 compliant
• Operating Temperature: 0 °C to 50 °C
• Storage Temperature: -20 °C to 60 °C
• Relative Humidity: 10% to 90% RH (non-condensing)
• Certifications: CE
• Software Compatibility: EasyBuilder

Applications

• Advanced Industrial Automation Systems requiring reliable data visualization and control.
• Integral to high-performance Machine Control Panels across diverse manufacturing sectors.
• Critical for efficient Process Monitoring in chemical, pharmaceutical, and food & beverage industries.
• Enhancing operational oversight in Packaging Machinery for high-speed and precision tasks.
• Enabling intuitive command and feedback in sophisticated Material Handling Equipment.
• Serving as a central control point in Building Management Systems for automation.
• Ideal for Human-Machine Interfaces in Water Treatment Plants due to its robust design.

Why Choose This Model?

• Unwavering Durability: The MT8150X stands as a testament to resilience with its IP65-rated front panel and sturdy aluminum enclosure, ensuring unwavering operation in the most challenging industrial environments, from dusty factory floors to areas exposed to cleaning agents.
• Seamless Integration: Equipped with a comprehensive array of communication interfaces including multiple RS-232/RS-485 ports, dual USB hosts, and Ethernet, this HMI facilitates effortless integration into existing and new automation networks, promoting flexible system architecture.
• Streamlined Development: Leverage the power of Weintek’s acclaimed EasyBuilder software, which significantly simplifies the creation and deployment of sophisticated HMI projects, reducing development time and enhancing productivity for engineers and technicians alike.
• Consistent Performance: Engineered for reliability, the MT8150X guarantees stable and predictable performance, minimizing downtime and maximizing throughput in mission-critical applications where operational consistency is paramount.
• Exceptional Clarity: The expansive 15-inch 1024x768 TFT LCD delivers crisp, clear visual feedback and intuitive touch control, empowering operators with the information and tools they need to make informed decisions swiftly and efficiently.

Order Now

Elevate your industrial operations with the Weintek MT8150X 15-inch HMI Touchscreen. Designed for superior performance and exceptional durability, this HMI is the smart choice for demanding automation and control applications. Enhance efficiency, improve operator interaction, and ensure the reliability of your systems. Contact us today to secure your Weintek MT8150X and revolutionize your approach to industrial control!
