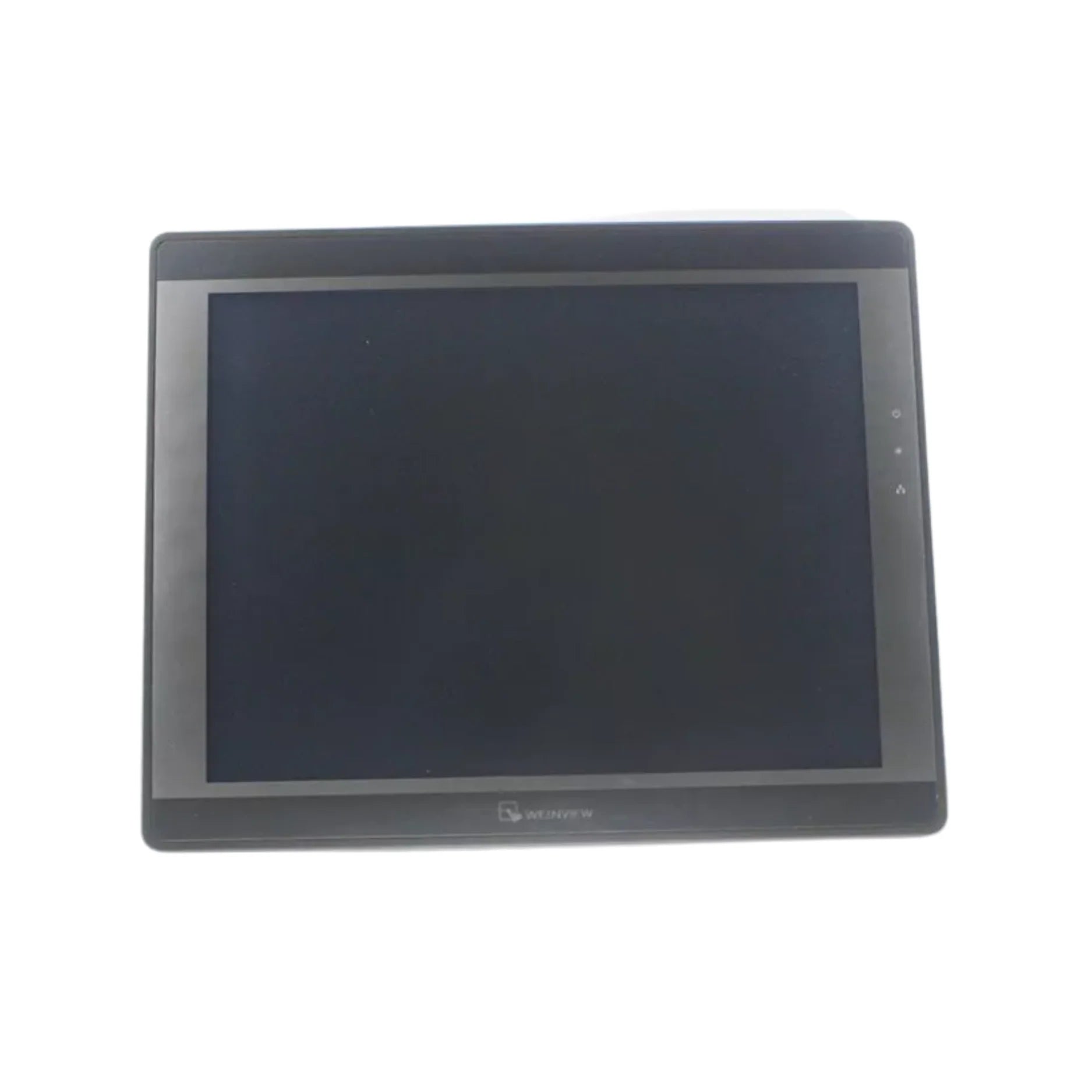

Weintek MT8121iE

Overview

Unleash unparalleled control and visualization within demanding industrial environments with the Weintek MT8121iE, a meticulously engineered 12.1-inch Human Machine Interface (HMI). This powerhouse display unit is purpose-built to streamline operational oversight and enhance user interaction across a multitude of automation systems. Boasting a vibrant, high-resolution 1024x768 TFT LCD, the MT8121iE ensures crystal-clear presentation of critical data, schematics, and control interfaces. Its robust design is complemented by comprehensive connectivity options, including integrated Ethernet, diverse serial communication ports, and a convenient USB host. Designed for seamless integration, this HMI is fully compatible with an extensive array of Programmable Logic Controllers (PLCs) and industrial controllers, making it an indispensable asset for system integrators, OEMs, and facility managers seeking reliable and flexible control solutions. Programming is intuitive and efficient, facilitated by the industry-standard EasyBuilder Pro software, empowering users to quickly deploy and manage complex industrial processes.

Key Features

• Expansive 12.1" TFT LCD Display: Experience superior visual clarity with a high-definition 1024x768 resolution, rendered in a rich 16.2 million color palette for detailed graphical representation.
• Responsive 4-Wire Resistive Touchscreen: Benefit from dependable and precise touch input, ensuring accurate control and navigation even in challenging industrial settings.
• Integrated 10/100 Mbps Ethernet Port: Achieve effortless network integration, enabling remote monitoring, data exchange, and seamless connectivity within your industrial network architecture.
• Versatile Serial Communication: Equipped with both RS-232 and RS-485 (2-wire/4-wire) ports, providing extensive compatibility for connecting to a wide spectrum of PLCs and legacy systems.
• Convenient USB Host Port: Facilitates easy connection of external devices for data logging, software updates, or expanded functionality.
• Expandable SD Card Slot: Offers flexible storage expansion for backups, recipe management, and process data archival.
• Built-In Real-Time Clock (RTC): Ensures accurate time-stamping of events and data, critical for process analysis and compliance.
• Efficient Fanless Cooling System: Guarantees silent operation, reduces maintenance requirements, and enhances reliability by eliminating moving parts.
• Robust NEMA4/IP65 Front Panel Protection: Provides exceptional resistance to dust and liquid ingress, making it suitable for deployment in demanding and harsh industrial environments.

Technical Specifications

• Model: MT8121iE
• Display: 12.1” TFT, 1024 x 768 resolution
• Touchscreen: 4-wire resistive
• Processor: Cortex-A8 600 MHz
• Memory: 256 MB RAM / 128 MB Flash
• Ethernet: 1 x 10/100 Mbps
• Serial Ports: COM1: RS-232/RS-485 2W/4W; COM3: RS-485 2W
• USB Host: 1 x USB 2.0
• SD Card Slot: Supports SD/SDHC
• Power Supply: 24VDC ±20%
• Power Consumption: 800 mA @ 24VDC
• Dimensions (WxHxD): 322 x 243 x 51 mm
• Panel Cutout: 305 x 231 mm
• Operating Temperature: 0°C to +50°C
• Mounting: Panel mount
• Protection: NEMA4 / IP65 (front), IP20 (rear)
• Certifications: CE marked, UL compliant
• Software: EasyBuilder Pro V4.00.01 or newer

Applications

• Precision control in diverse Factory Automation Systems
• Intuitive operator interfaces for PLC-Based Control Panels
• Customized machine insights as an OEM Machine Interface
• Front-end visualization and data presentation for SCADA systems
• Centralized monitoring for building management systems
• Data acquisition and display in process control industries

Why Choose This Model?

The Weintek MT8121iE stands out as a superior choice for industrial applications due to its harmonious blend of advanced features and rugged construction. Unlike standard HMIs, this model provides a significantly larger, high-resolution display, critical for intricate visualization and enhanced readability of complex schematics and extensive data sets. Its comprehensive communication suite, featuring both robust Ethernet and versatile serial ports, ensures seamless integration into virtually any existing or new automation infrastructure, offering unparalleled flexibility. Engineered to excel in demanding operational settings, the MT8121iE is particularly well-suited for overseeing complex or large-scale automation systems where reliability, precision, and clear data presentation are paramount. Invest in the MT8121iE to elevate your control capabilities and optimize operational efficiency.

Order Now

Seamlessly integrate the powerful Weintek MT8121iE into your industrial setup. This advanced HMI solution is ready for immediate deployment to enhance your automation processes. Contact us today to secure your order and experience the next level of industrial control and visualization.
