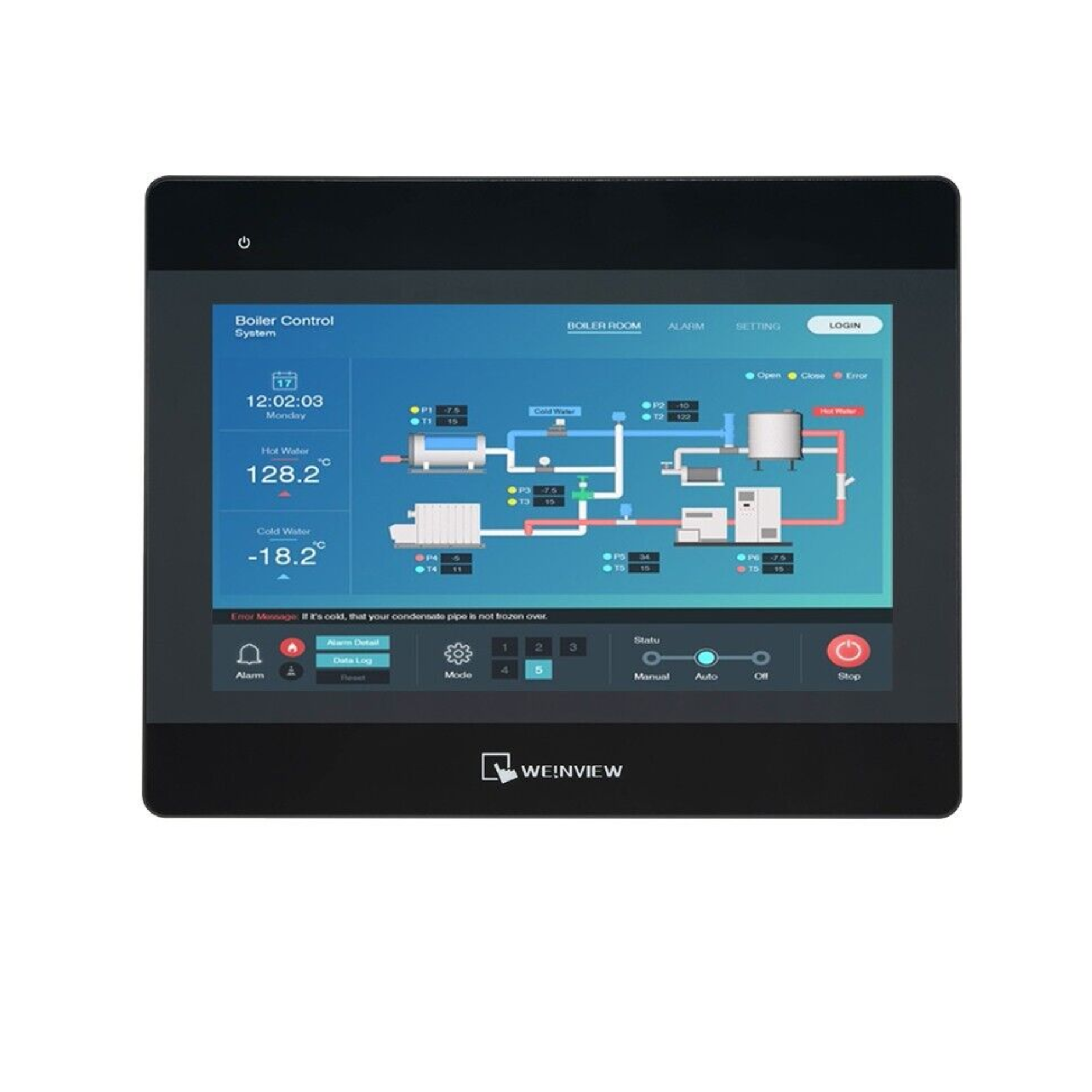

Weintek MT8106iP

Overview

Elevate your industrial control strategy with the Weintek MT8106iP, a sophisticated Human-Machine Interface engineered for demanding automation environments. This 10.1-inch HMI panel combines a vivid Wide Viewing Angle (WVA) TFT LCD with a high-performance dual-core RISC processor, delivering exceptional reliability and responsiveness for overseeing critical industrial processes. Designed for seamless integration, the MT8106iP boasts integrated Ethernet and multiple serial communication interfaces, facilitating robust connections with a diverse array of Programmable Logic Controllers (PLCs) and sophisticated control systems. From detailed process monitoring to intuitive parameter adjustments, this HMI stands as a cornerstone for modern industrial operations, ensuring clarity and control at every touchpoint. Its robust construction and advanced feature set make it an indispensable tool for engineers and operators seeking precision and efficiency.

Key Features

• Exceptional Visuals: Experience unparalleled clarity on the 10.1-inch WVA TFT LCD, offering a rich 1024 x 600 resolution and a spectrum of 16.7 million colors for detailed graphical representation.
• Responsive Touch Control: Navigate your operations effortlessly via the highly sensitive 4-wire resistive touch panel, ensuring precise input and responsive interaction even in challenging industrial settings.
• High-Performance Processing: Powered by a dual-core RISC CPU, the MT8106iP guarantees swift data processing and fluid application execution, minimizing latency and maximizing operational efficiency.
• Ample Memory Configuration: Equipped with 256 MB Flash memory for robust application storage and 128 MB RAM for superior multitasking capabilities, supporting complex HMI projects without compromise.
• Comprehensive Communication Suite:
• 1 x Ethernet (10/100 Base-T) for high-speed network integration.
• Flexible Serial Ports: Con.A supports COM2 RS-485 (2W/4W) and COM3 RS-485 (2W); Con.B provides COM1 RS-232 (4W) and COM3 RS-232 (2W)* for diverse device connectivity.
• USB Host Port: Includes 1 x USB 2.0 Host port for convenient data transfer, peripheral connectivity, and expanded functionality.
• Robust Power Input: Designed to operate reliably on a 24 VDC ±20% power supply, ensuring stable performance in fluctuating industrial power environments.
• Industrial-Grade Mounting: Features panel mount installation with a NEMA4 / IP65 compliant front panel, protecting against dust, water spray, and harsh environmental conditions.
• Extended Operating Range: Functions efficiently across a wide temperature spectrum from 0°C to 55°C (32°F to 131°F), suitable for various industrial climates.
• Software Compatibility: Fully compatible with EasyBuilder Pro V6.08.01 or later versions, offering powerful design tools and intuitive project development.
• Certified Quality: CE marked, affirming compliance with European health, safety, and environmental protection standards.

*Note: When COM3 RS-232 is in use, COM1 RS-232 functionality is limited to Tx & Rx lines only (RTS/CTS not available).

Technical Specifications

• Physical Dimensions (W x H x D): Precisely engineered at 271 x 213 x 36.4 mm for streamlined panel integration.
• Panel Cutout Dimensions: Requires a cutout of 260 x 202 mm for a perfect fit.
• Weight: Approximately 1 kg, balancing robust construction with manageable installation.
• Backlight Longevity: High-efficiency LED backlight with an impressive lifespan exceeding 50,000 hours, ensuring consistent illumination.
• Superior Contrast: A contrast ratio of 1000:1 provides sharp, clear distinctions between colors and text.
• Brightness Level: Delivers 350 cd/m² of brightness, ensuring excellent visibility in various lighting conditions.
• Wide Viewing Angles (T/B/L/R): Enjoy consistent image quality with 89°/89°/89°/89° viewing angles.
• Front Panel Protection: Features NEMA4 / IP65 compliant front panel for superior protection against environmental ingress.
• Efficient Power Consumption: Consumes 510mA at 24VDC, optimizing energy usage within your systems.
• High Isolation Resistance: Exceeds 50MΩ at 500VDC, ensuring electrical safety and minimizing interference.
• Vibration Endurance: Robustly designed to withstand 10 to 25Hz (X, Y, Z direction 2G 30 minutes) sustained vibration, ideal for industrial machinery.
• Enclosure Material: Constructed from durable plastic, offering a balance of protection and weight efficiency.

Applications

• Advanced Factory Automation: Deploy for real-time monitoring, precise control, and data visualization of complex production lines and machinery.
• Intelligent Building Management Systems: Serve as a central interface for managing and optimizing HVAC, lighting systems, access control, and comprehensive security infrastructure.
• Sustainable Energy Management: Ideal for displaying critical data, controlling operational parameters, and optimizing performance in renewable energy systems, including solar and wind farms.
• Precise Process Control: Provide intuitive visualization and exacting control within sensitive industries such as chemical manufacturing, pharmaceutical production, and food processing, ensuring operational integrity.

Why Choose This Model?

The Weintek MT8106iP stands out as a premier choice for industrial HMI solutions due to its compelling blend of advanced features and robust construction. Its dual-core processor guarantees not just smooth but exceptionally responsive operation, significantly enhancing operator efficiency and reducing potential bottlenecks in control processes. The versatility of its communication ports, encompassing both Ethernet and multiple serial options, ensures unparalleled flexibility in integrating this unit into virtually any existing or new control system architecture. Furthermore, the intuitive touchscreen interface is meticulously designed for user-friendliness, allowing operators of all skill levels to interact with complex machinery with ease and confidence. Capped with a durable, industrial-grade design, the MT8106iP is built to withstand the rigors of challenging operational environments, promising longevity and consistent performance where it matters most. Choosing this model means investing in a reliable, high-performance HMI that simplifies complex control, improves operational visibility, and contributes to overall system resilience.
