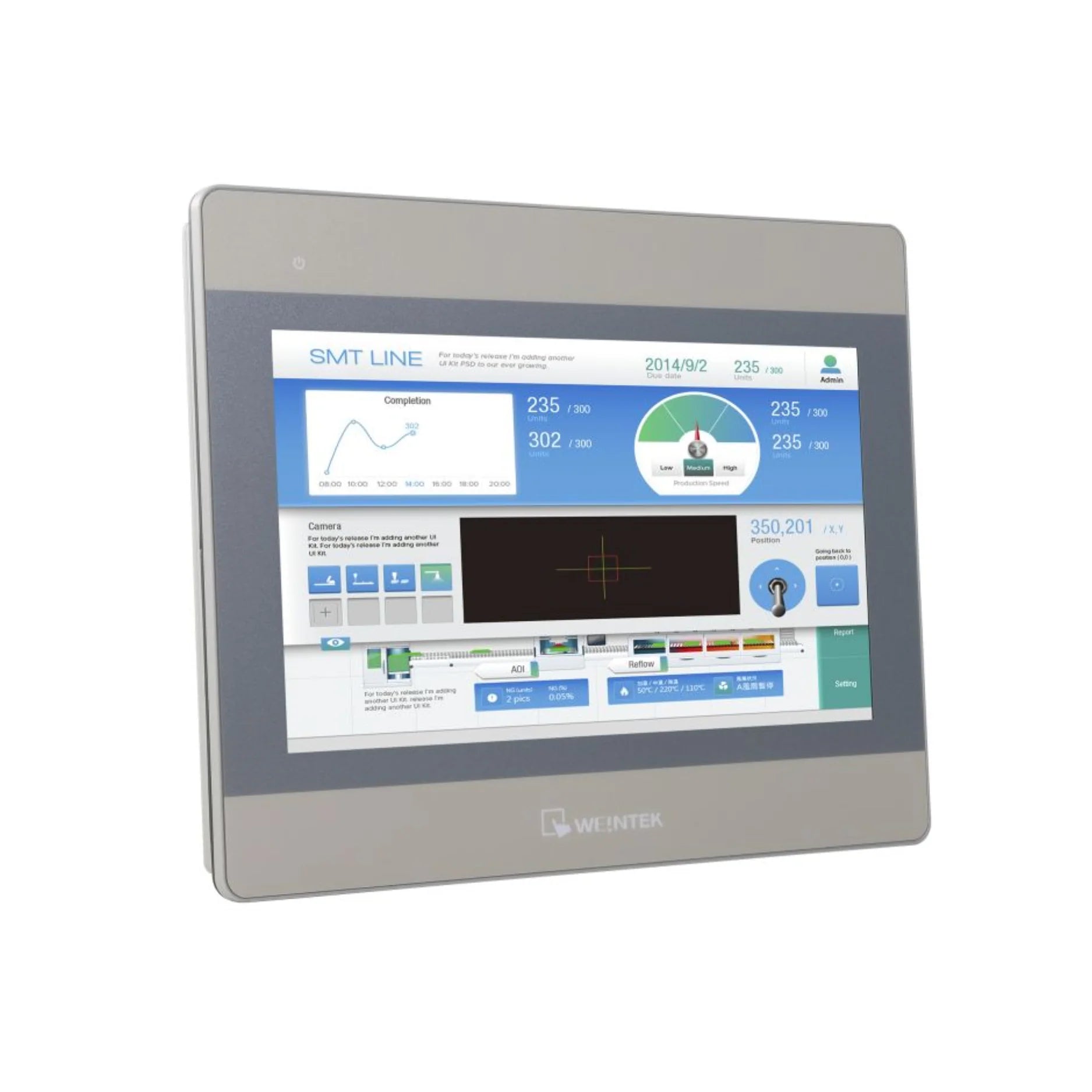

Weintek MT8102iE

Overview

Unlock the full potential of your industrial operations with the Weintek MT8102iE, a meticulously engineered 10.1-inch Human-Machine Interface. This advanced HMI touch panel is specifically designed to meet the rigorous demands of modern industrial automation, offering unparalleled clarity, responsiveness, and connectivity. Featuring a brilliant TFT LCD and a high-performance 600MHz RISC processor, the MT8102iE provides a robust and intuitive platform for monitoring, controlling, and optimizing complex industrial processes with exceptional reliability. Its comprehensive suite of communication options ensures effortless integration into diverse control architectures, making it an indispensable asset for any sophisticated automation setup.

Key Features

• Vivid 10.1" TFT LCD: Experience crystal-clear visuals with a 1024 x 600 resolution and a stunning 16.7 million color palette, ensuring critical data is displayed with precision.
• Responsive Resistive Touch: Navigate menus and control systems effortlessly with a durable 4-wire resistive touch panel, built for industrial environments.
• Powerful 600MHz RISC CPU: Benefit from rapid data processing and smooth application performance, driven by a high-speed 32-bit RISC processor.
• Ample Memory: Equipped with 128 MB Flash and 128 MB RAM, providing sufficient space and speed for complex applications and data logging.
• Extensive Communication Options:
• 1 x Ethernet (10/100 Base-T) for high-speed network integration.
• Flexible Serial Ports: COM1 RS-485 2W, COM2 RS-485 2W/4W, COM3 RS-485 2W/4W (via Con.A), and COM1 RS-232 4W, COM3 RS-232 2W (via Con.B).
• USB 2.0 Host: Easily connect peripheral devices and transfer data with the integrated USB port.
• Robust Power Supply: Operates efficiently with a 24 VDC ±20% input, suitable for standard industrial power systems.
• Industrial-Grade Mounting: Designed for panel mounting with a NEMA4 / IP65 compliant front panel, offering superior protection against dust and water ingress.
• Optimized Operating Temperature: Performs reliably across a wide temperature range from 0°C to 50°C (32°F to 122°F).
• Software Compatibility: Fully supported by EasyBuilder Pro V5.03.02 or later, simplifying project development and deployment.
• International Certification: CE marked, ensuring compliance with European safety, health, and environmental protection requirements.

Technical Specifications

• Physical Dimensions (W x H x D): 271 x 213 x 36.4 mm
• Panel Cutout: 260 x 202 mm
• Weight: Approximately 1 kg
• Backlight Lifespan: LED backlight with an impressive >50,000 hours, minimizing maintenance needs.
• Contrast Ratio: 500:1 for clear distinction between light and dark elements.
• Brightness: 350 cd/m² ensures visibility even in varying lighting conditions.
• Wide Viewing Angles (T/B/L/R): 70°/70°/80°/80° allows for clear viewing from multiple perspectives.
• Front Panel Protection: NEMA4 / IP65 compliant for superior environmental resistance.
• Power Consumption: Efficient operation at 650mA @ 24VDC.
• Isolation Resistance: Exceeds 50MΩ at 500VDC, ensuring electrical safety.
• Vibration Endurance: Capable of withstanding 10 to 25Hz (X, Y, Z direction 2G for 30 minutes) for reliable performance in dynamic environments.
• Enhanced Durability: Features PCB coating for exceptional corrosion resistance, extending lifespan in harsh settings.
• Enclosure Material: Constructed from robust plastic for industrial resilience.
• Real-Time Clock (RTC): Built-in for accurate timekeeping and event logging.

Applications

The Weintek MT8102iE is a versatile HMI solution, perfectly suited for a wide array of industrial applications:

• Precision Factory Automation: Empower operators with comprehensive monitoring and precise control over complex production lines, optimizing efficiency and throughput.
• Integrated Building Management Systems: Serve as an intuitive interface for managing critical building functions, including HVAC, lighting, and advanced security protocols.
• Efficient Energy Management: Provide clear visualization and control mechanisms for renewable energy systems, aiding in resource optimization and sustainability efforts.
• Advanced Process Control: Offer a robust platform for real-time visualization and meticulous control within sensitive industries such as chemical manufacturing, pharmaceuticals, and food processing.

Why Choose This Model?

Choosing the Weintek MT8102iE means investing in a future-proof solution that delivers on performance, reliability, and ease of use:

• Elevated Performance: The powerful 600MHz RISC processor guarantees swift response times and seamless operation of even the most demanding applications.
• Unmatched Versatility: With a comprehensive array of communication ports, this HMI offers unparalleled flexibility for integration into virtually any existing or new control system.
• Intuitive User Experience: The highly responsive touchscreen and user-friendly interface significantly reduce operator training time and enhance overall efficiency.
• Exceptional Durability: Engineered with a robust design, including a NEMA4 / IP65 compliant front panel and PCB coating, ensuring longevity and reliable performance in challenging industrial environments.

Order Now

Secure your Weintek MT8102iE today and redefine your industrial control capabilities. Available now for rapid, worldwide shipping.
