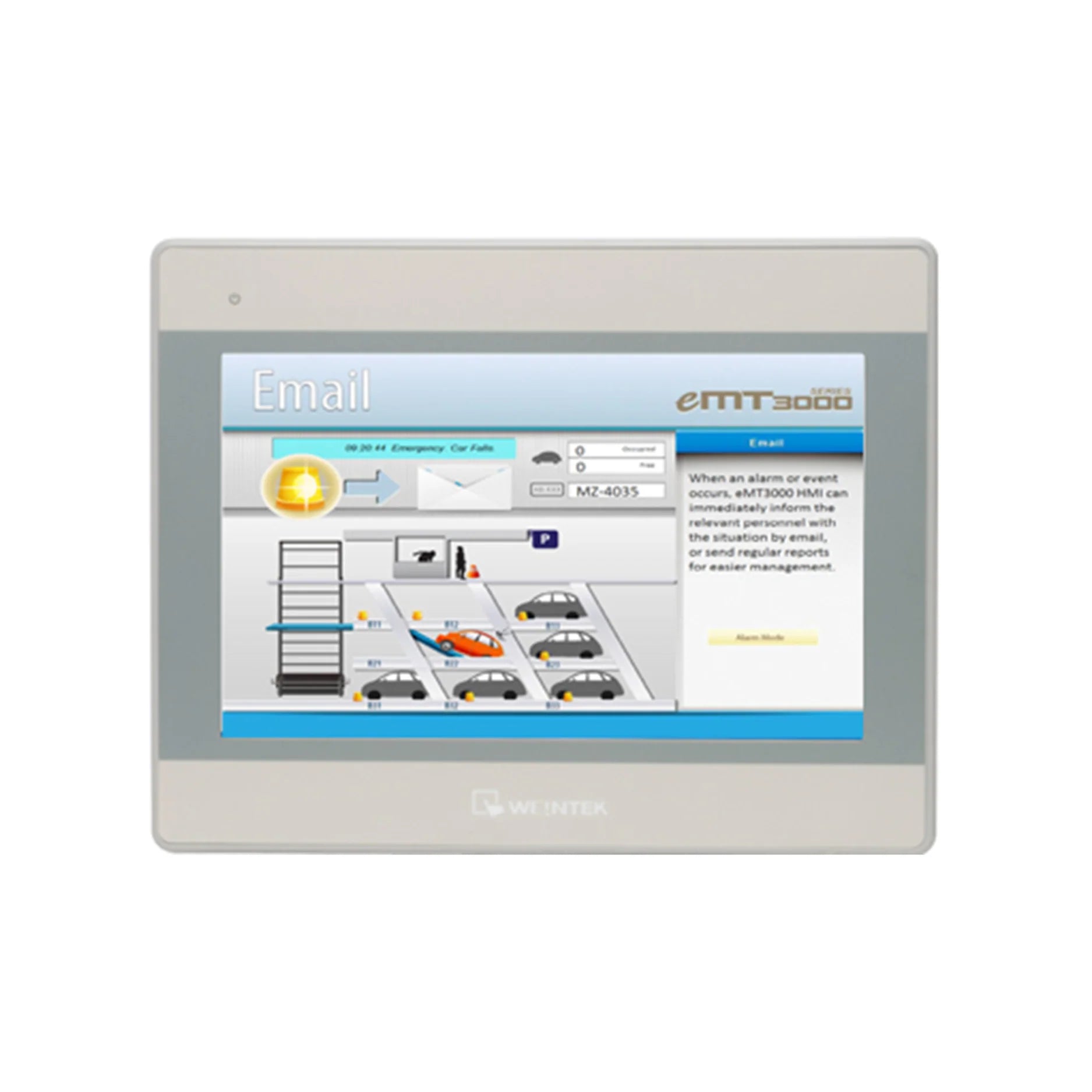

Weintek MT8101iE

Overview

Elevate your industrial control systems with the Weintek MT8101iE, a meticulously engineered 10.1-inch Human Machine Interface renowned for its stability and user-friendly design. This unit brings together a high-definition 1024x600 TFT LCD with a comprehensive suite of connectivity options, including Ethernet, RS-232, RS-485, and a USB host port. Such versatility ensures seamless integration into a wide array of industrial automation environments and compatibility with various Programmable Logic Controllers (PLCs). The MT8101iE is configured effortlessly using the complimentary EasyBuilder Pro software, solidifying its position as a go-to solution for original equipment manufacturers (OEMs), systems integrators, and control panel developers seeking optimal performance and ease of deployment.

Key Features

• Expansive 10.1" TFT LCD: Experience crystal-clear visuals with a vibrant 1024x600 resolution display, offering rich color reproduction and wide viewing angles for superior operational clarity.
• Precision Resistive Touch: Benefit from highly accurate and dependable operator input via the 4-wire resistive touchscreen technology, designed for robust industrial usage.
• High-Speed Ethernet Connectivity: Facilitate swift data exchange and enable remote access capabilities with a fully integrated 10/100 Mbps Ethernet port.
• Flexible Serial Communication: Maximize your compatibility with an extensive range of PLCs and devices, thanks to the included RS-232 and RS-485 serial ports.
• Versatile USB Host Port: Connect essential peripheral devices and streamline data logging tasks with the conveniently located USB 2.0 host port.
• Integrated Real-Time Clock (RTC): Ensure precise time-stamping for data logs, event tracking, and scheduled alarms with the built-in real-time clock functionality.
• Silent Fanless Operation: Enjoy a quiet and low-maintenance environment due to the efficient fanless cooling design, reducing downtime and operational noise.
• Rugged NEMA4/IP65 Front Panel: Deploy with confidence in harsh industrial settings, as the front panel offers excellent protection against dust ingress and water splashes.

Technical Specifications

• Model: MT8101iE
• Display: 10.1” TFT LCD
• Resolution: 1024 x 600 pixels
• Touch Panel: 4-wire resistive
• CPU: 32-bit RISC
• Memory: 128 MB Flash / 128 MB RAM
• Ethernet: 1 x 10/100 Base-T
• Serial Ports:
  • COM1: RS-232
  • COM2: RS-485 2W/4W
  • COM3: RS-485 2W
• USB Host: 1 x USB 2.0
• Power Supply: 24V DC ±15%
• Power Consumption: 450 mA @ 24VDC
• Dimensions: 271 x 213 x 36 mm
• Panel Cutout: 260 x 202 mm
• Operating Temperature: 0°C to +50°C
• Mounting: Panel mount

Applications

The Weintek MT8101iE is a versatile HMI solution, perfectly suited for a multitude of demanding industrial applications, including:

• Sophisticated Industrial Automation Systems
• Intuitive Control Panels for PLC-Based Operations
• Streamlined Machine Interfaces for Equipment Manufacturers
• High-Performance SCADA and Data Logging Display Systems

Why Choose This Model?

Opting for the Weintek MT8101iE means investing in a high-caliber HMI that delivers on all fronts: visual excellence, robust connectivity, and unparalleled ease of use. Its generous 10.1-inch widescreen display ensures operators have ample space for critical data visualization and control, while the high resolution guarantees every detail is rendered with precision. The industrial-grade construction, coupled with flexible communication options, provides the longevity and adaptability required for continuous operation in challenging environments. Furthermore, the seamless integration facilitated by the free EasyBuilder Pro software dramatically reduces development time and complexity, making it an intelligent choice for any project requiring reliable and efficient human-machine interaction. This HMI is not just a component; it's a foundational element for advanced, responsive industrial control.

Order Now

This essential industrial HMI is currently in stock and readily available for worldwide shipping. Secure your Weintek MT8101iE today to enhance your automation infrastructure.
