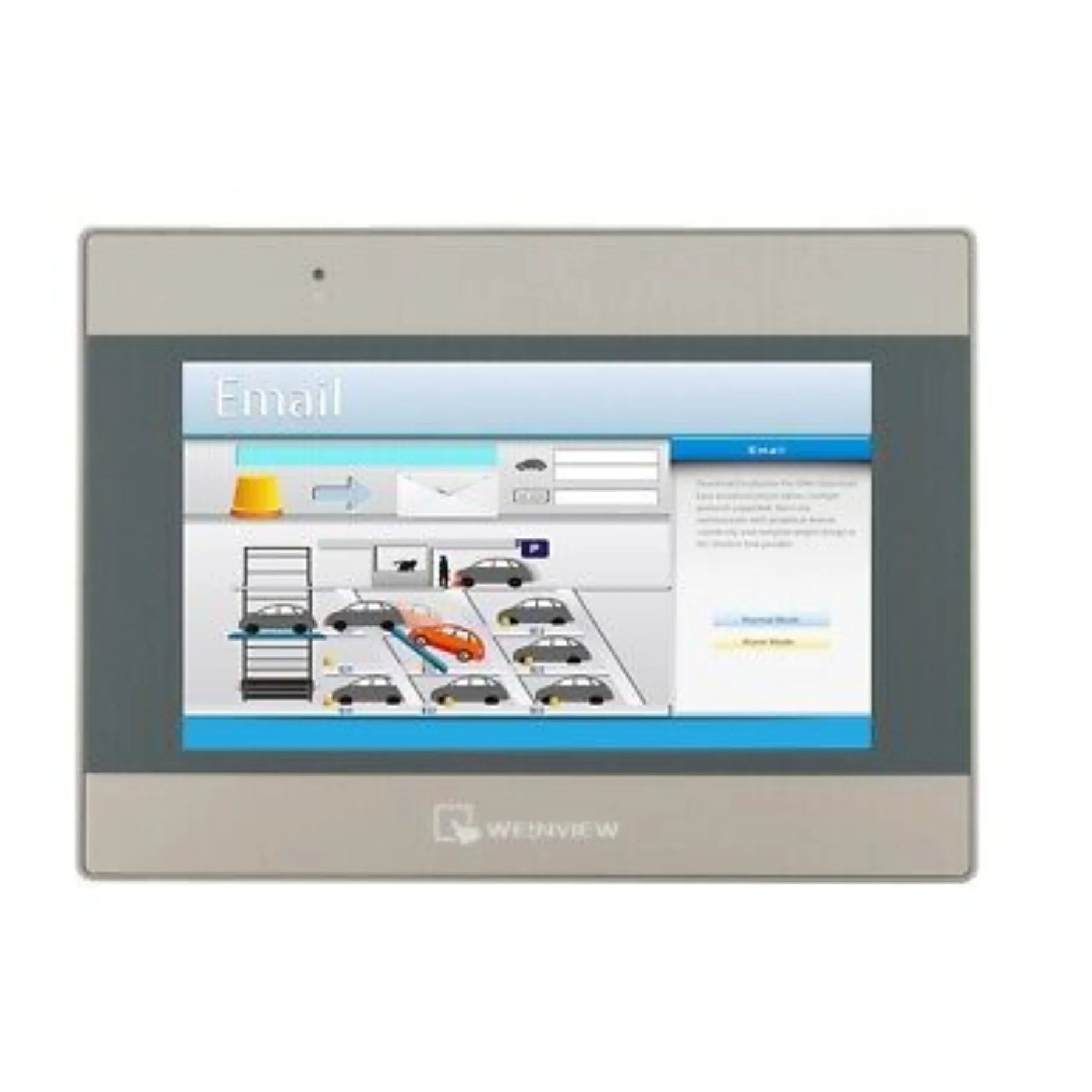

Weintek MT8072iE

Overview

Unlock enhanced control and visualization within your industrial operations with the Weintek MT8072iE, an exceptional 7-inch HMI panel engineered for precision and durability. This compact yet powerful touchscreen solution seamlessly integrates into diverse automation ecosystems, providing operators with intuitive command over critical processes. Designed with a vibrant 800x480 resolution display, robust communication capabilities including Ethernet and dual serial ports (RS-232 and RS-485), the MT8072iE is a versatile choice for original equipment manufacturers (OEMs) and system integrators seeking reliable and efficient human-machine interface technology. Its compatibility with a vast array of PLC brands, combined with the user-friendly EasyBuilder Pro software, positions this HMI as an indispensable tool for modern industrial environments.

Key Features

• Brilliant 7-inch Widescreen TFT Display: Experience crisp, clear visuals with an 800x480 resolution and 16.7 million colors, bringing your process data to life.
• Responsive Resistive Touch Interface: Navigate effortlessly through menus and controls using the highly accurate 4-wire resistive touchscreen, ensuring reliable operation even in challenging conditions.
• Integrated Ethernet Connectivity: Facilitate seamless networking, remote access, and data exchange with the built-in 10/100 Mbps Ethernet port, enhancing system accessibility and management.
• Dual Serial Communication Versatility: Benefit from extensive PLC protocol compatibility through dedicated RS-232 and RS-485 ports, ensuring broad integration possibilities across various industrial setups.
• Convenient USB Host Port: Expand functionality with easy data logging, program transfers, and peripheral device connections via the accessible USB host port.
• Accurate Real-Time Clock (RTC): Maintain precise, time-stamped records of events and data, crucial for diagnostics, reporting, and regulatory compliance.
• Complimentary EasyBuilder Pro Software: Leverage a powerful, intuitive, and free configuration tool that simplifies project development and deployment for maximum efficiency.
• Sleek, Industrial-Grade Construction: Its slim profile and robust design are optimized for reliable panel-mounted installations, ensuring longevity in demanding operational settings.

Technical Specifications

• Model Identifier: MT8072iE
• Screen Diagonal: 7 inches
• Display Resolution: 800 x 480 pixels (16:9 aspect ratio)
• Touch Technology: 4-wire resistive sensor
• Core Processor: 32-bit RISC architecture
• Onboard Memory: 128 MB Flash / 128 MB RAM
• Connectivity Ports:
  • 1x Ethernet (10/100 Mbps)
  • 1x RS-232
  • 1x RS-485 (configurable for 2-wire or 4-wire)
  • 1x USB Host (Type A)
• Power Input: 24V DC ±15%
• Energy Consumption: Approximately 400 mA @ 24V DC
• Physical Dimensions (WxHxD): 200.1 x 146.1 x 36 mm
• Panel Cutout Requirement: 192 x 138 mm
• Operating Temperature Range: 0°C to +50°C
• Mounting Method: Panel mount installation

Applications

• OEM Machine Integration: Ideal for manufacturers incorporating HMIs into new machinery designs, providing a polished and functional user interface.
• Advanced Factory Automation: Enhance control and monitoring in complex automated production lines and manufacturing facilities.
• PLC Interface and Supervision: Serve as an intuitive front-end for various Programmable Logic Controllers, facilitating parameter adjustments and status observation.
• SCADA System Visualization: Deploy as efficient human-machine interfaces within Supervisory Control and Data Acquisition architectures for real-time data presentation.

Why Choose This Model?

The Weintek MT8072iE stands out as a superior choice for industrial control, offering an compelling blend of affordability and powerful performance. Its wide-ranging compatibility with countless PLC brands ensures seamless integration into existing or new systems, minimizing setup complexities. Engineered for resilience, this HMI guarantees unwavering operation even within the most challenging industrial settings, providing peace of mind and sustained productivity. Furthermore, the inclusion of the free and remarkably easy-to-use EasyBuilder Pro software dramatically streamlines the configuration process, empowering users to develop sophisticated HMI projects with ease, regardless of their technical proficiency. Opt for the MT8072iE to elevate your automation strategy with a dependable, feature-rich, and cost-effective solution.

Order Now

This high-performance Weintek MT8072iE HMI panel is readily available in stock and prepared for immediate dispatch. Take advantage of our worldwide shipping options to bring this essential industrial tool to your facility, no matter your location. Enhance your control systems today.
