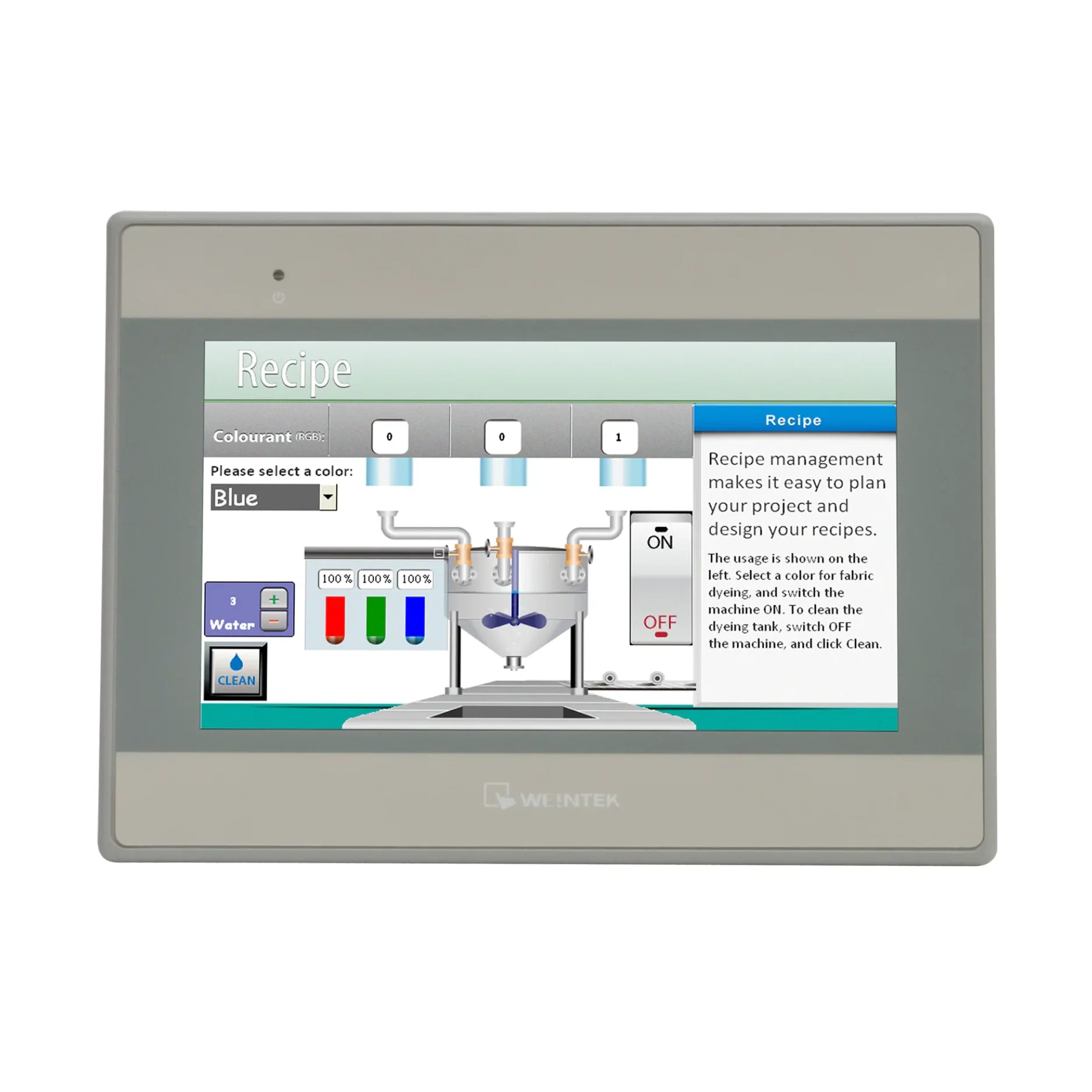

Weintek MT8070iE

Overview

Unlock streamlined control and superior oversight for your industrial processes with the Weintek MT8070iE. This cutting-edge 7-inch Human Machine Interface (HMI) is engineered for resilience and efficiency, perfectly suited for the demands of modern automation. The MT8070iE transcends basic functionality, offering a compact yet powerful solution for a diverse range of small to medium-scale machinery and systems. Its integrated Ethernet capabilities ensure robust network communication, while comprehensive serial port support guarantees broad compatibility with various programmable logic controllers (PLCs).

Designed for intuitive operation and rapid deployment, the MT8070iE leverages Weintek’s acclaimed EasyBuilder Pro software. This powerful development environment allows for swift and flexible project creation, empowering engineers to design dynamic and user-friendly interfaces with unparalleled ease. Experience the advantage of enhanced connectivity and intelligent control, all housed within a durable and space-efficient form factor.

Key Features

• Vibrant 7" Resistive Touchscreen: Crystal-clear 800x480 resolution provides sharp visuals for critical operational data and intuitive direct interaction.
• Integrated Ethernet Connectivity: Facilitates seamless network integration, offering robust communication pathways and enabling efficient remote access and monitoring.
• Versatile Serial Communication: Equipped with both RS-232 and RS-485 ports to ensure broad compatibility with an extensive array of industrial PLC systems and devices.
• Optimized Compact Design: Thoughtfully engineered dimensions make this HMI an ideal fit for control panels where installation space is at a premium.
• Rugged NEMA4/IP65 Front Panel: Offers superior protection against ingress from dust and water splashes, ensuring reliable performance in challenging industrial environments.
• Convenient USB Host Port: Enables straightforward data logging, project backups, and peripheral connectivity for enhanced operational flexibility.
• EasyBuilder Pro Software Compatibility: Accelerates development cycles with a user-friendly platform for designing and deploying sophisticated HMI applications quickly.

Technical Specifications

• Model: MT8070iE
• Display Type: 7” TFT LCD, with a crisp 800 x 480 pixel resolution
• Touch Panel: Highly responsive 4-wire resistive type
• CPU: High-performance 32-bit RISC Cortex-A8 processor clocked at 600MHz
• Memory: Generous 128MB Flash memory combined with 128MB RAM for smooth operation
• Ethernet Port: 1 x 10/100 Mbps port for reliable network communication
• Serial Ports:
  • COM1: Supports RS-232/RS-485 (2W/4W)
  • COM3: Supports RS-485 (2W)
• USB Host: 1 x USB 2.0 port
• SD Card Slot: Not available on this model
• Power Input: Operates efficiently on 24V DC ±20%
• Power Consumption: Approximately 350 mA at 24VDC
• Panel Cutout: Precise dimensions of 192 x 138 mm
• Dimensions (WxHxD): Compact size of 200.3 x 146.3 x 34 mm
• Operating Temperature: Designed for reliability in temperatures from 0°C to +50°C
• Mounting: Standard panel mount for secure installation
• Front Panel Protection: IP65 rated for robust environmental resistance
• Software: Fully compatible with Weintek’s intuitive EasyBuilder Pro

Applications

The Weintek MT8070iE is a versatile HMI solution, perfectly suited for a wide array of industrial applications requiring dependable control and clear data visualization:

• Instrumentation and Control Panels for Small-Scale Installations
• Supervisory Interfaces for Basic Machine Operations
• Integration into Packaging and Filling Line Equipment
• Real-time Data Display for Energy Monitoring and Management Systems
• Embedded Machine Displays for Original Equipment Manufacturers (OEMs)
• Process Visualization in Water Treatment and Pumping Stations

Why Choose This Model?

The MT8070iE stands out as an exceptional choice for professionals seeking a high-value, high-performance HMI. Its strategic blend of essential features, robust construction, and user-friendly interface delivers significant advantages for industrial automation:

• Outstanding Value: Provides a comprehensive set of critical HMI functionalities without unnecessary complexity, offering a cost-effective path to enhanced control.
• Industrial Durability: Engineered to withstand harsh factory and workshop environments, boasting a compact yet rugged design that ensures longevity and consistent performance.
• Unwavering Reliability: Delivers unwavering performance for a broad spectrum of standard control and monitoring tasks, reducing downtime and optimizing operational continuity.
• Seamless Integration: Designed for effortless integration into existing systems, minimizing setup time and maximizing compatibility with widely used industrial protocols.
• Future-Ready Connectivity: Ethernet port offers modern networking capabilities, supporting remote diagnostics and future expansion of your control architecture.

Order Now

Elevate your operational efficiency and gain superior control with the Weintek MT8070iE 7-inch HMI. This reliable and feature-rich unit is ready to transform your machinery interfaces. We facilitate worldwide shipping to ensure your business, wherever it may be, can benefit from this advanced automation solution. Secure your MT8070iE today and experience the difference!
