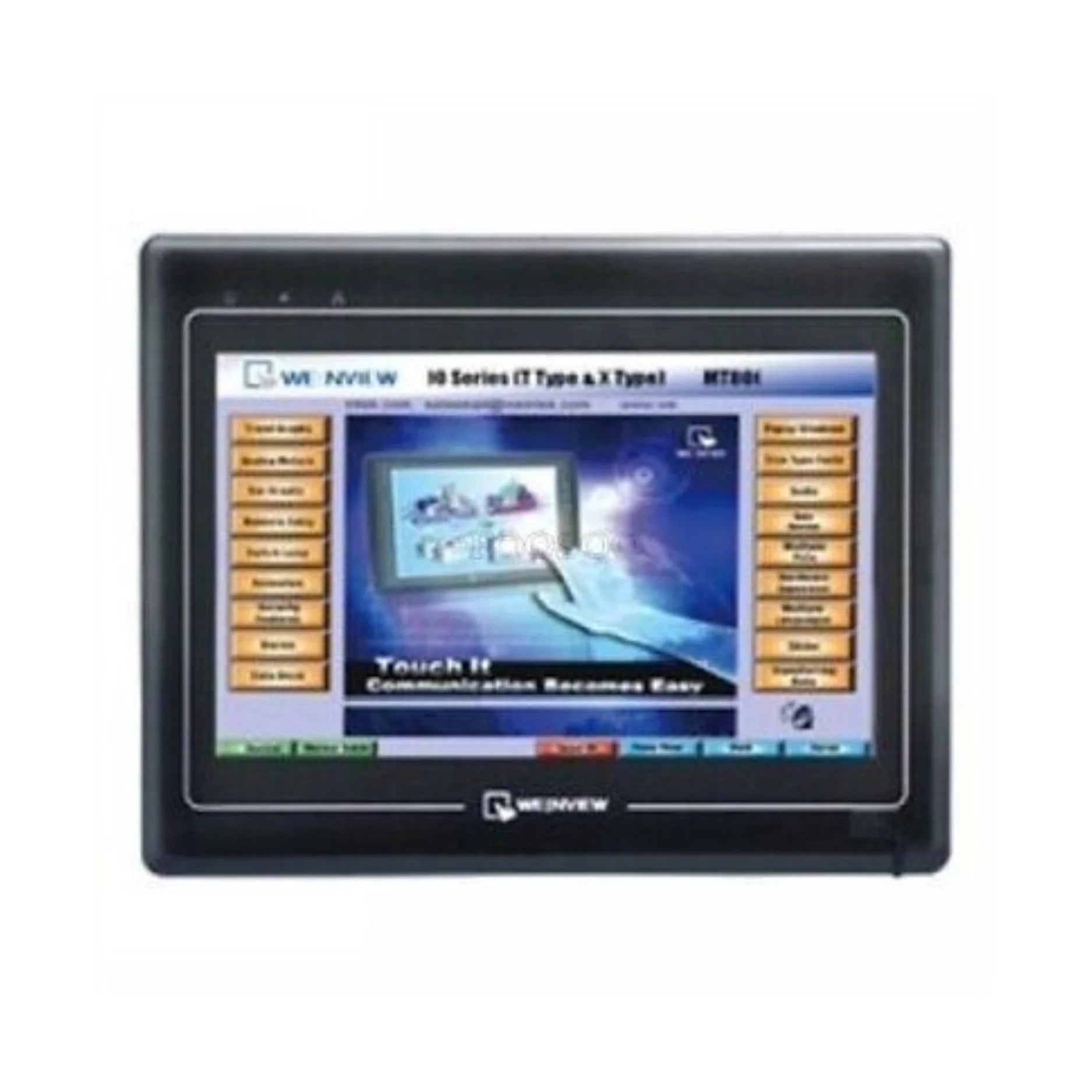

Weintek MT6100i

Overview

Unlock enhanced operational efficiency with the Weintek MT6100i, a robust 10-inch Human Machine Interface designed from the ground up to streamline interactions within even the most demanding industrial settings. This operator panel integrates a high-resolution, high-contrast TFT LCD with responsive touch technology and an array of communication options, creating a central hub for seamless control and monitoring. Engineered for durability and extensive connectivity, the MT6100i stands as an indispensable component for modern automation and precision control systems, offering a clear window into your machinery's performance and status.

Key Features

• Expansive 10" Widescreen Display: Delivers critical operational data with clarity and precision, enhancing user comprehension and reducing errors.
• Vivid 800 × 480 Resolution: Experience crisp, detailed graphics and text across 65,536 vibrant colors, ensuring an intuitive and visually engaging interface.
• Reliable 4-Wire Resistive Touchscreen: Provides dependable and accurate input, even in environments where operators may wear gloves.
• High-Performance 32-bit RISC Processor: Operating at 400 MHz, this powerful core ensures rapid response times and smooth handling of complex applications.
• Ample Memory Configuration: Equipped with 128 MB Flash memory for secure project storage and 64 MB RAM for efficient data processing.
• Flexible Power Input: Operates reliably on a 24 V DC ±20% power supply, suitable for diverse industrial power infrastructures.
• Comprehensive Communication Suite: Includes COM1 (RS-232/RS-485 2W/4W), COM2 (RS-232), and COM3 (RS-232/RS-485 2W) for extensive device integration capabilities.
• Dual USB Port Convenience: Features one USB Host for peripheral connectivity and one USB Client for direct programming and data transfer.
• Integrated SD Card Slot: Facilitates convenient data logging, recipe management, and project backups, ensuring operational continuity.
• Built-in Real-Time Clock (RTC): Maintains accurate timekeeping for critical timestamps and scheduling tasks without external intervention.
• IP65 Rated Front Panel: Ensures superior protection against dust and water ingress, making it suitable for deployment in challenging industrial environments.
• Durable Plastic Enclosure: Designed for longevity and resilience in demanding operational conditions.
• Optimized Panel Mount Design: Streamlines integration into existing control cabinets and operator consoles.
• Compact Dimensions: Measures 271 × 212 × 50 mm with a panel cutout of 259 × 201 mm, balancing screen size with installation flexibility.
• Lightweight Construction: Weighs approximately 1.4 kg for ease of handling and installation.
• Broad Environmental Tolerance: Operates effectively from 0 °C to 50 °C and stores from –20 °C to 60 °C, with a humidity range of 10–90% RH (non-condensing).

Technical Specifications

• Model: Weintek MT6100i
• Display Type: TFT LCD
• Screen Size: 10 inches
• Resolution: 800 × 480 pixels
• Colors: 65,536
• Touch Panel: 4-wire Resistive
• CPU: 32-bit RISC, 400 MHz
• Flash Memory: 128 MB
• RAM: 64 MB
• Power Input: 24 V DC ±20%
• Serial Ports: COM1 (RS-232/RS-485 2W/4W), COM2 (RS-232), COM3 (RS-232/RS-485 2W)
• USB Ports: 1 Host, 1 Client
• SD Card Slot: Yes
• Real-Time Clock: Yes
• Front Panel Protection: IP65
• Enclosure: Plastic
• Mounting: Panel Mount
• External Dimensions (W×H×D): 271 × 212 × 50 mm
• Panel Cutout (W×H): 259 × 201 mm
• Weight: 1.4 kg
• Operating Temperature: 0 °C to 50 °C
• Storage Temperature: –20 °C to 60 °C
• Relative Humidity: 10–90% RH (non-condensing)

Applications

The Weintek MT6100i is a versatile HMI solution, perfectly suited for a multitude of industrial applications where reliable control and intuitive interaction are paramount:

• Industrial Equipment Control: Provides a centralized and easy-to-use interface for managing complex machinery and processing units.
• Factory Automation: Enhances the efficiency of manufacturing lines, assembly systems, and material handling processes.
• Conveyor and Logistics Systems: Offers real-time monitoring and control for sorting, routing, and packaging operations.
• Process Monitoring Terminals: Ideal for displaying critical process variables, alarms, and operational trends in industries such as chemical, pharmaceutical, and food & beverage.
• Machine Diagnostics and Setup: Facilitates quick troubleshooting, parameter adjustments, and configuration changes for production equipment.
• Building Management Systems: Can be integrated for controlling HVAC, lighting, and security systems in commercial and industrial facilities.

Why Choose This Model?

The Weintek MT6100i offers a compelling blend of performance, durability, and user-centric design, making it an exceptional choice for your industrial automation needs. Its high-resolution 10-inch display ensures that all critical information is visible at a glance, minimizing operator fatigue and improving decision-making. The responsive resistive touchscreen guarantees precise input, even in less-than-ideal factory conditions. With its comprehensive suite of serial and USB ports, the MT6100i provides unparalleled flexibility for integrating with a wide array of industrial devices and PLCs. Furthermore, the inclusion of an SD card slot offers convenient options for data archival and system updates, bolstering the longevity and adaptability of your control system. Its robust IP65-rated front panel safeguards against environmental hazards, ensuring consistent performance day in and day out. Invest in the Weintek MT6100i for a dependable, high-performing HMI that truly elevates your industrial operations.
