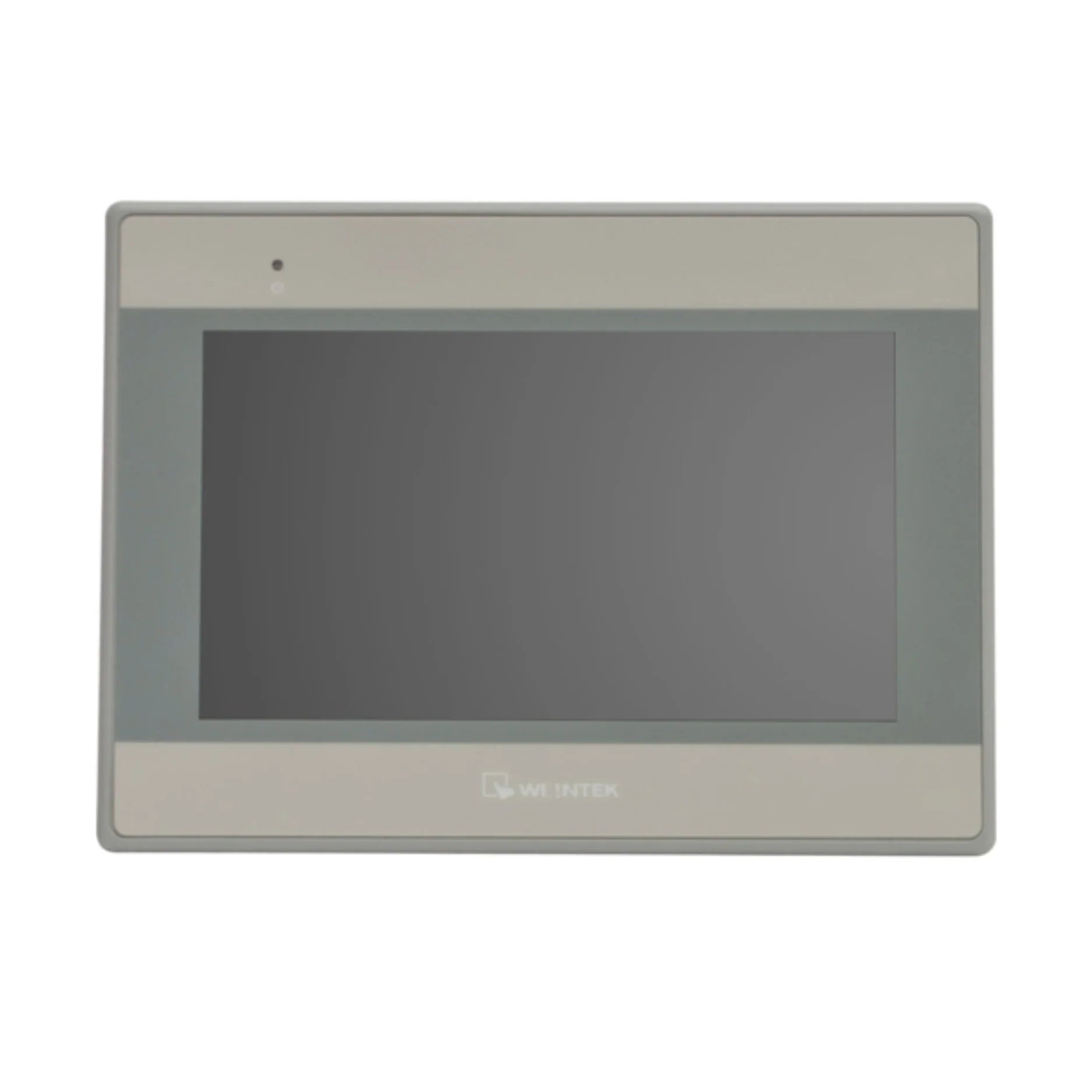

Weintek MT6071iE

Overview

Elevate your industrial control with the Weintek MT6071iE, a meticulously engineered 7-inch Human Machine Interface designed to thrive in demanding operational environments. This compact yet powerful HMI delivers a commanding visual experience with its brilliant 800x480 resolution TFT LCD, making it an optimal choice for nuanced machine interfaces, streamlined PLC panels, and integrated OEM control solutions. Its thoughtful design prioritizes both space efficiency and high-performance communication, ensuring seamless integration into intricate automation architectures.

Equipped with an extensive array of connectivity options, including both RS-232 and RS-485 serial ports, alongside advanced USB Host and Client interfaces, the MT6071iE stands ready to connect with a diverse ecosystem of industrial automation protocols and devices. Configuration and customization are intuitively managed through the award-winning EasyBuilder Pro software, empowering engineers to craft sophisticated, user-centric control panels with remarkable ease and precision.

Key Features

• Vivid 7" TFT LCD Display: Experience crystal-clear visuals on a high-definition 800x480 resolution screen, featuring an energy-efficient LED backlight and supporting a rich palette of 16.7 million colors for exceptional visual fidelity.
• Robust 4-Wire Resistive Touchscreen: Engineered for reliability, this responsive touchscreen ensures accurate input recognition, even when operators are wearing industrial gloves, enhancing operational safety and efficiency.
• Versatile RS-232 and RS-485 Communication: Establish robust connections with an extensive range of Programmable Logic Controllers (PLCs) and other industrial equipment through integrated serial ports, supporting various communication modes.
• Dual USB Host and Client Ports: Expand your capabilities with versatile USB connectivity, enabling effortless data logging, efficient recipe transfer, straightforward device updates, and convenient peripheral integration.
• Integrated Real-Time Clock (RTC): Facilitate precise time-stamping for critical event logging, alarm management, and historical data archiving, indispensable for comprehensive process monitoring.
• Silent Fanless Operation: Benefit from a maintenance-free and completely silent operational experience, courtesy of the advanced fanless design, reducing wear and tear and ensuring long-term reliability.
• Durable NEMA4 / IP65 Front Panel Protection: Safeguard your investment with a front panel engineered to withstand harsh industrial conditions, offering superior protection against dust ingress and water splashes.

Technical Specifications

• Model: MT6071iE
• Display: 7" TFT LCD, 800 x 480 pixels
• Touchscreen: 4-wire resistive type
• Processor: High-performance 32-bit RISC Cortex-A8, 600 MHz
• Memory: 128 MB RAM / 128 MB Flash
• Serial Communication Ports:
  • COM1: RS-232/RS-485 (2W/4W support)
  • COM3: RS-485 (2W support)
• USB Interface:
  • 1 x USB Host
  • 1 x USB Client
• Power Requirements: 24V DC ±20%
• Typical Power Consumption: Approximately 350 mA @ 24V DC
• Physical Dimensions (WxHxD): 200.3 x 146.3 x 35 mm
• Panel Cutout Dimensions: 192 x 138 mm
• Operating Temperature Range: 0°C to +50°C
• Mounting Method: Standard Panel mount
• Front Panel Environmental Rating: IP65 / NEMA4 compliant
• Programming Software: EasyBuilder Pro

Applications

The Weintek MT6071iE is a highly adaptable HMI solution, perfectly suited for a wide array of industrial applications requiring intuitive control and reliable data visualization:

• Specialized OEM Machine Interfaces: Integrate seamlessly into bespoke machinery, providing operators with clear, concise, and immediate control over complex operations.
• Compact PLC Control Panels: Optimize space within control cabinets without compromising on functionality, offering a powerful interface for Programmable Logic Controllers.
• Diverse Industrial Automation Equipment: Serve as the central point of interaction for a multitude of automated systems, enhancing overall system usability and performance.
• Advanced SCADA and Data Logging Systems: Facilitate comprehensive supervisory control and data acquisition, enabling efficient monitoring and historical data analysis for process optimization.

Why Choose This Model?

Opting for the Weintek MT6071iE means investing in a solution that marries high performance with unparalleled reliability and connectivity. Its compact footprint belies a powerful core, delivering a superior HMI experience critical for modern industrial operations. The extensive support for various serial communication protocols makes it exceptionally versatile, capable of integrating with nearly any existing or new automation infrastructure. Furthermore, the inclusion of a USB Host port significantly expands its functionality, offering convenient options for data backup, system updates, and connecting external devices, ensuring your operations remain agile and data-rich. This model represents a strategic choice for engineers and integrators seeking a robust, future-proof HMI solution that consistently performs under pressure.

Order Now

Enhance your industrial control systems today with the Weintek MT6071iE. This cutting-edge HMI is available for prompt worldwide delivery, bringing advanced monitoring and control capabilities directly to your facility, no matter your global location.
