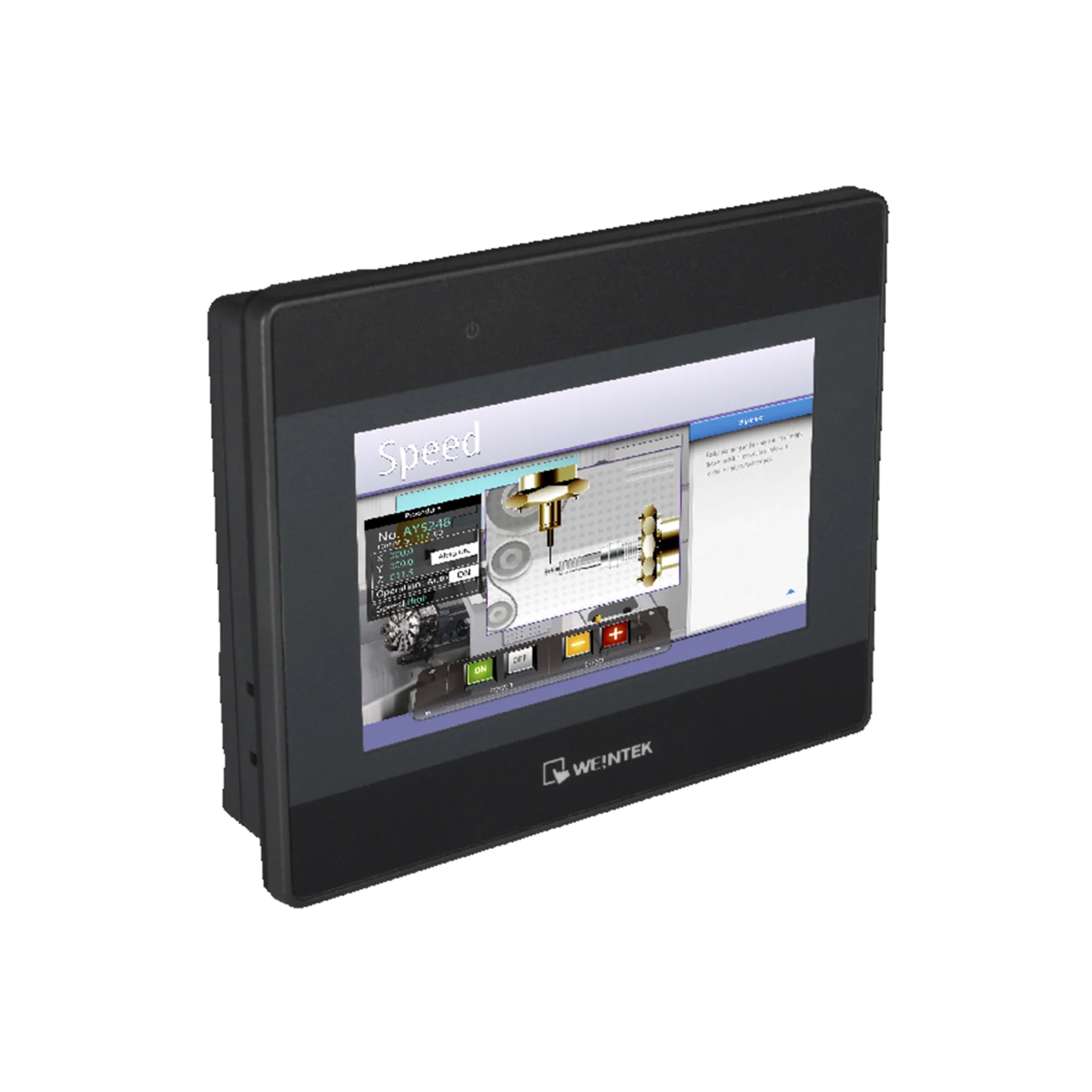

Weintek MT6050iP

Overview

Unlock superior control and monitoring capabilities within demanding industrial settings with the Weintek MT6050iP. This sophisticated 4.3-inch Human Machine Interface (HMI) integrates seamlessly into automation systems, providing a critical nexus for operators. Engineered for clarity and durability, the MT6050iP boasts a crisp 4.3-inch TFT LCD, presenting a vivid 480x272 pixel display capable of rendering 65,536 colors. Its intuitive touch panel ensures effortless interaction, while the robust IP65-rated front panel guarantees resilience against dust and water ingress, making it an ideal solution for challenging operational environments. Experience a new benchmark in compact, high-performance industrial control interfaces.

Key Features

• Vibrant Display: 4.3-inch TFT LCD with 480x272 resolution and 65,536 colors for exceptional visual clarity.
• Responsive Touch: Precision 4-wire resistive touch panel ensures smooth and accurate user input.
• Advanced Processing: Powered by a high-performance 32-bit RISC CPU clocked at 400 MHz for rapid data handling.
• Ample Memory: Equipped with 128 MB Flash memory and 64 MB DRAM, providing robust storage and operational capacity.
• Reliable Power: Operates efficiently with a 24 V DC ±20% power supply, suitable for industrial setups.
• Flexible Connectivity: Features COM1 (RS-232/RS-485 2W/4W) and COM3 (RS-485 2W) for diverse communication needs.
• Convenient USB: Includes a USB 2.0 Client port for easy data transfer and peripheral connections.
• Integrated RTC: Built-in Real-Time Clock (RTC) with a CR2032 3V lithium battery for accurate timekeeping.
• Resilient Construction: Housed within a durable plastic molding enclosure, designed for longevity.
• Compact Form Factor: Dimensions of 128 × 102 × 32 mm and a lightweight design (approx. 0.25 kg) for effortless integration.
• Environmental Protection: NEMA4 / IP65 compliant front panel provides superior resistance to harsh elements.
• Operational Versatility: Functions reliably across a temperature range of 0 °C to 50 °C with 10% to 90% RH (non-condensing).
• Global Compliance: CE certified, ensuring adherence to international safety and quality standards.
• Software Compatibility: Fully supports EasyBuilder 8000 V4.65.06 or later, simplifying project development and deployment.

Technical Specifications

• Display Size: 4.3 inches
• Display Type: TFT LCD
• Resolution: 480 × 272 pixels
• Colors: 65,536
• Touchscreen Type: 4-wire Resistive
• CPU: 32-bit RISC, 400 MHz
• Flash Memory: 128 MB
• DRAM: 64 MB
• Power Input: 24 V DC ±20%
• Serial Ports: COM1 (RS-232/RS-485 2W/4W), COM3 (RS-485 2W)
• USB Port: 1 x USB 2.0 Client
• Real-Time Clock (RTC): Yes (CR2032 3V lithium battery)
• Enclosure Material: Plastic Molding
• Dimensions (W×H×D): 128 × 102 × 32 mm
• Panel Cutout: 119 × 93 mm
• Weight: 0.25 kg (approximately)
• Front Panel Protection: NEMA4 / IP65
• Operating Temperature: 0 °C to 50 °C
• Storage Temperature: -20 °C to 60 °C
• Relative Humidity: 10% to 90% RH (non-condensing)
• Certifications: CE Compliant
• Software Support: EasyBuilder 8000 V4.65.06 or later

Applications

• Advanced Industrial Automation: Centralized control for intricate manufacturing processes.
• Precision Machine Interfacing: Ideal for integrating with and operating complex machinery.
• Comprehensive Process Surveillance: Real-time visual monitoring of production lines and critical parameters.
• Automated Packaging Systems: Enhancing control and efficiency in high-speed packaging operations.
• Efficient Material Handling: Streamlining the management and movement of goods in logistics and warehousing.

Why Choose This Model?

The Weintek MT6050iP distinguishes itself as a premier choice for professionals seeking a compact yet powerful HMI solution. Its space-saving design makes it incredibly versatile for cramped control panels without compromising on functionality. The robust IP65 front panel protection offers unparalleled peace of mind, ensuring continuous operation even in environments exposed to dust, splashes, or corrosive agents. Moreover, the MT6050iP provides a rich array of communication interfaces, simplifying integration into existing systems and supporting various network topologies. Coupled with the intuitive EasyBuilder 8000 software, development time is significantly reduced, allowing for quicker deployment and enhanced project efficiency. Opt for the MT6050iP for a blend of reliability, advanced features, and user-friendliness that drives operational excellence.
