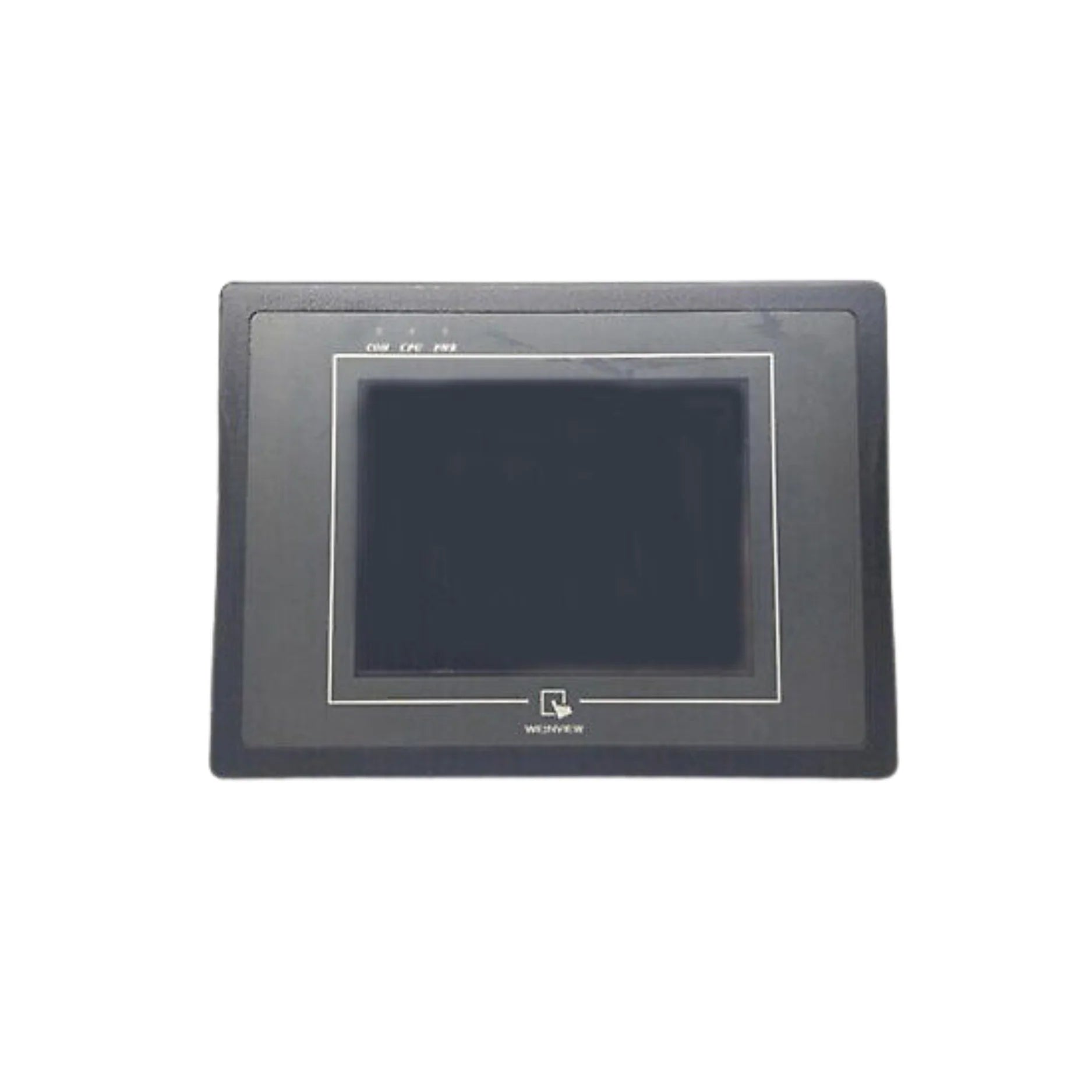

Weintek MT506MV

Overview

Elevate your industrial control systems with the Weintek MT506MV, a purpose-built 5.6-inch Human Machine Interface renowned for its reliability and compact design. Engineered to provide seamless operator interaction and real-time machine oversight, this HMI boasts a vibrant 320x234 pixel TFT LCD, ensuring crisp visual feedback within a surprisingly small footprint. Ideal for modern manufacturing, automation, and process control applications, the MT506MV delivers performance and durability in demanding environments.

Key Features

• Compact Visual Interface: Brilliant 5.6-inch TFT LCD display with a resolution of 320x234 pixels for clear data presentation.
• Rich Color Depth: Supports 256 colors, enhancing the readability and detail of graphical interfaces.
• Responsive Touch Technology: Equipped with a reliable 4-wire resistive touchscreen for precise and durable input.
• High-Performance Processing: Powered by a 32-bit RISC CPU operating at 200 MHz for rapid data processing and responsiveness.
• Ample Memory: Integrates 2 MB of onboard flash memory for application storage and operational data.
• Robust Power Input: Operates efficiently on a standard 24 V DC ±5% power supply, suitable for industrial settings.
• Versatile Communication Ports: Features COM1 (RS-232) and COM2 (RS-232/RS-485) for flexible connectivity with diverse industrial devices.
• Integrated Timekeeping: Includes a built-in Real-Time Clock (RTC) for accurate time and date stamping of events.
• Secure Mounting: Designed for convenient panel mounting, ensuring a flush and integrated installation.
• Enhanced Front Panel Protection: IP65 compliant front panel offers superior protection against dust and water ingress.
• Durable Construction: Housed in a robust plastic enclosure built to withstand challenging industrial conditions.
• Optimized Dimensions: Measures 204 × 150 × 48 mm (W×H×D) with a panel cutout of 192 × 138 mm for easy integration.
• Lightweight Design: Weighs approximately 0.84 kg, facilitating installation and reducing structural load.
• Broad Operating Range: Functions reliably in temperatures ranging from 0 °C to 45 °C.
• Flexible Storage Conditions: Can be stored in temperatures from –20 °C to 60 °C.
• Environmental Adaptability: Tolerates humidity levels of 10%–90% RH (non-condensing).

Technical Specifications

• Display Size & Type: 5.6" TFT LCD
• Resolution: 320×234 pixels
• Color Support: 256 colors
• Touch Panel: 4-wire resistive
• CPU: 32-bit RISC, 200 MHz
• Flash Memory: 2 MB
• Power Requirement: 24 V DC ±5%
• Serial Ports: COM1: RS-232; COM2: RS-232/RS-485
• Real-Time Clock: Yes
• Mounting: Panel Mount
• Front Panel Rating: IP65
• Enclosure Material: Plastic
• Dimensions (W×H×D): 204 × 150 × 48 mm
• Panel Cutout: 192 × 138 mm
• Weight: 0.84 kg (approx.)
• Operating Temperature: 0 °C to 45 °C
• Storage Temperature: –20 °C to 60 °C
• Humidity: 10%–90% RH (non-condensing)

Applications

The Weintek MT506MV is a versatile solution, perfectly suited for a wide array of industrial applications where clear visualization and reliable interaction are paramount. Its robust build and compact size make it an excellent choice for:

• Control Panels for Machinery: Providing intuitive operator interfaces for various industrial machines.
• Manufacturing Line Monitoring: Offering real-time insights into production processes and equipment status.
• Compact Automation Systems: Integrating seamlessly into smaller automation setups requiring dedicated control.
• Packaging and Labeling Equipment: Enhancing user control and visibility for critical packaging operations.
• Building Management Systems: Facilitating localized control and monitoring of environmental parameters.
• Material Handling Systems: Optimizing operator input for conveyor belts, sorting systems, and robotic cells.

Why Choose This Model?

When selecting an HMI, the Weintek MT506MV stands out as a superior choice for several compelling reasons:

• Optimized for Space: Its remarkably compact footprint is meticulously designed for installations where panel space is at a premium, without compromising functionality.
• Dependable Interaction: Experience consistent and accurate operation with its highly reliable 4-wire resistive touchscreen technology, ensuring longevity and performance in busy environments.
• Advanced Connectivity: Equipped with dual serial ports (RS-232 and RS-232/RS-485), this HMI offers unparalleled flexibility for integrating with a diverse range of PLCs, sensors, and other legacy or modern industrial devices.
• Industrial-Grade Protection: The IP65-rated front panel provides robust defense against dust and splashing water, making it perfectly suited for challenging industrial applications where cleanliness and protection are critical.
• Clear Visuals: The 5.6" TFT LCD delivers clear and bright visuals, crucial for quick data interpretation and operational efficiency.
• Cost-Effective Performance: Offers a powerful set of features and industrial durability at a competitive price point, providing excellent value for your investment.

Order Now

Ready to upgrade your industrial interface? The Weintek MT506MV 5.6" HMI Touchscreen offers the ideal blend of compact design, robust features, and reliable performance essential for modern industrial automation. Enhance operator productivity and machine control today. Contact us for competitive pricing or to place your order!
