Weintek cMT2078X

Overview

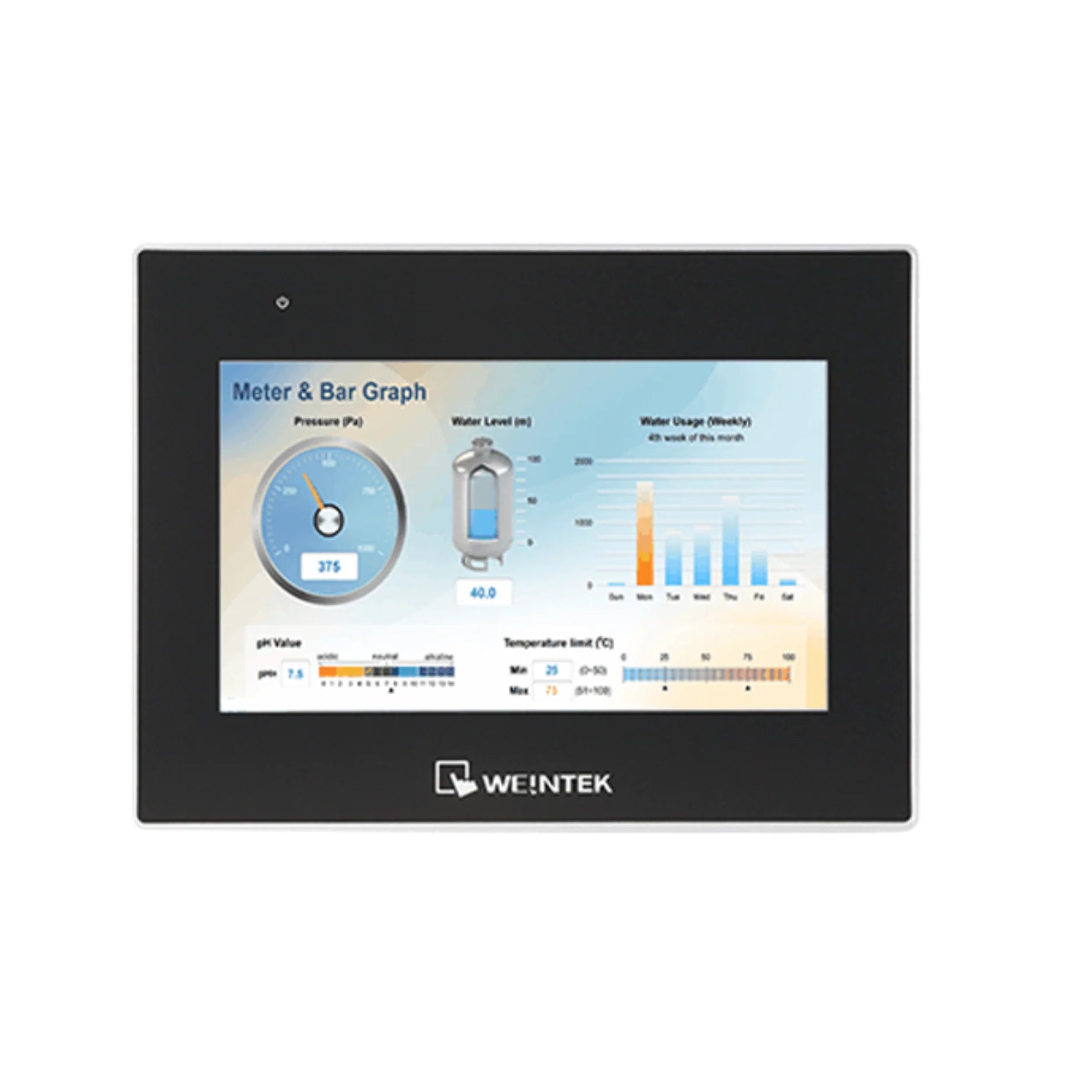

Elevate your industrial operations with the Weintek cMT2078X, a sophisticated 7-inch Human Machine Interface engineered for the demands of modern automation and the evolving Industrial Internet of Things (IIoT). This advanced HMI doesn't just display data; it acts as an intelligent edge device, providing a robust platform for complex control, monitoring, and data interchange. Featuring a potent 1.5 GHz quad-core 64-bit RISC processor, complemented by 1 GB of RAM and 4 GB of flash memory, the cMT2078X delivers the computational muscle required for intricate visualization and data processing tasks directly at the machine level. Its comprehensive connectivity suite, including dual 10/100 Mbps Ethernet ports and versatile serial interfaces, ensures seamless integration into diverse network architectures, while native support for OPC UA, MQTT, and Modbus TCP/IP protocols positions it as a cornerstone for future-proof industrial ecosystems.

Key Features

• Vivid 7" Resistive Touchscreen: Experience clear, responsive interaction with an 800x480 resolution display featuring 16.7 million colors and an energy-efficient LED backlight.
• High-Performance Quad-Core Processing: Drive demanding applications with a 1.5 GHz 64-bit RISC CPU, ensuring rapid data handling and smooth graphical performance.
• Dual Network Flexibility: Integrate effortlessly into multiple network segments or create redundant connections with two independent 10/100 Mbps Ethernet ports.
• Extensive Serial Connectivity: Communicate with a wide array of industrial devices via RS-232 (4-wire), RS-485 (2W/4W), and a configurable RS-232/RS-485 port.
• USB 2.0 Host Port: Easily connect peripherals such as memory sticks for data logging, software updates, or device expansion.
• Integrated Real-Time Clock (RTC): Maintain accurate time-stamps for logs, historical data, and scheduled events, even during power outages.
• Fanless Industrial Design: Benefit from enhanced long-term reliability and reduced maintenance thanks to a passively cooled design, free from moving parts.
• Rugged Front Panel Protection: Trust in durability with a NEMA4 / IP66 compliant front panel, offering superior resistance against dust and water ingress.
• Optional Remote Access & PLC Support: Leverage EasyAccess 2.0 for secure remote monitoring and control, and CODESYS for integrated PLC programming capabilities.

Technical Specifications

• Model Designation: cMT2078X
• Display Type: 7” TFT LCD, 800 x 480 pixel resolution, 400 cd/m² brightness, 800:1 contrast
• Touch Panel Technology: 4-wire resistive type
• Processor Architecture: Quad-core 64-bit RISC, operating at 1.5 GHz
• Memory Configuration: 4 GB Flash storage, 1 GB RAM
• Ethernet Interface: LAN1: 10/100 Mbps, LAN2: 10/100 Mbps
• Serial Communication Ports: COM1: RS-232 (4-wire); COM2: RS-485 (2W/4W); COM3: RS-232 (2-wire) / RS-485 (2-wire) configurable
• USB Connectivity: 1 x USB 2.0 Host port
• Power Requirements: 24V DC ±20% input
• Power Consumption: Approximately 820 mA at 24VDC
• Device Dimensions (WxHxD): 200.3 x 146.3 x 35.0 mm
• Panel Cutout Dimensions: 192 x 138 mm
• Product Weight: Approx. 0.6 kg
• Operational Temperature Range: 0°C to +55°C
• Storage Temperature Range: -20°C to +60°C
• Humidity Rating: 10% to 90% RH (non-condensing)
• Mounting Method: Panel mount installation
• Environmental Protection: NEMA4 / IP66 compliant front panel
• Regulatory Certifications: CE, cULus approved
• Programming Software: EasyBuilder Pro v6.05.02 or later versions

Applications

• Advanced Machine Control: Provide intuitive control and monitoring for complex machinery in manufacturing and process industries.
• Edge IIoT Gateway: Act as an intelligent data aggregator and bridge between operational technology (OT) and information technology (IT) networks.
• SCADA & MES Integration: Serve as a critical interface for Supervisory Control and Data Acquisition (SCADA) and Manufacturing Execution Systems (MES).
• Remote Diagnostics & Monitoring: Facilitate secure and efficient remote management of distributed industrial assets.
• Data Acquisition & Trend Visualization: Capture, log, and graphically represent critical operational data for performance analysis and process optimization.

Why Choose This Model?

The Weintek cMT2078X stands out as an exceptional choice for demanding industrial applications due to its unparalleled combination of power, connectivity, and resilience. Its cutting-edge quad-core processor ensures that even the most data-intensive HMI projects run flawlessly, empowering operators with real-time insights and control. The dual Ethernet ports offer superior network segmentation and redundancy options, while its extensive array of serial ports guarantees compatibility with legacy and modern industrial equipment alike. Crucially, the cMT2078X is designed with the future of IIoT in mind, supporting key protocols that enable seamless integration into smart factory environments. Furthermore, its robust, fanless construction and IP66-rated front panel ensure reliable operation in challenging industrial settings, minimizing downtime and maximizing productivity. Choose the cMT2078X for a future-ready HMI that delivers performance and peace of mind.

Order Now

The Weintek cMT2078X is readily available and poised to enhance your industrial automation infrastructure. Take advantage of its advanced capabilities and secure your competitive edge. We offer immediate worldwide shipping to ensure your projects stay on track.
