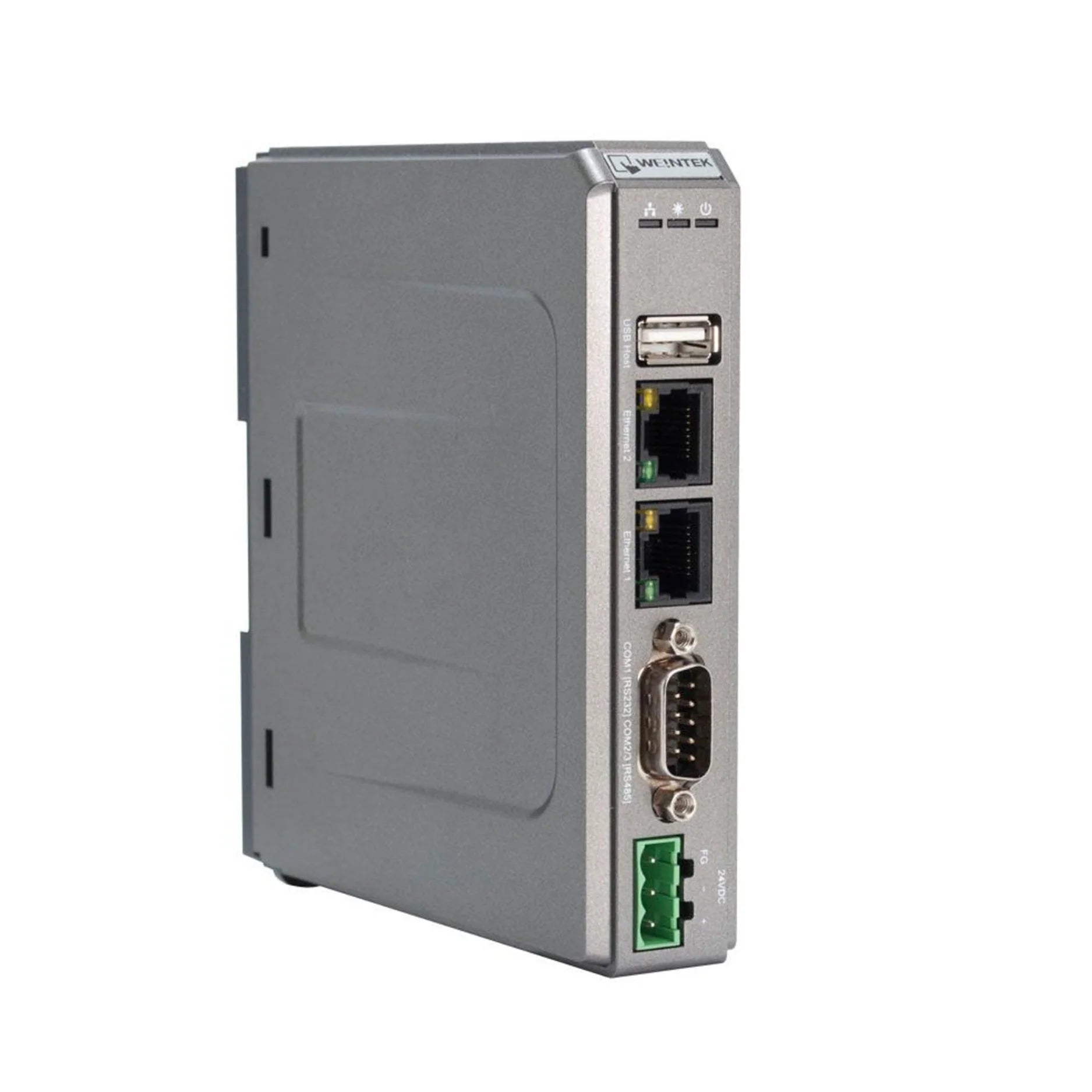

Weintek cMT-SVR-100

Overview

Elevate your industrial automation infrastructure with the Weintek cMT-SVR-100, an innovative headless HMI server engineered for unparalleled remote visualization and control. This compact, DIN-rail mountable unit redefines flexibility, allowing access to critical operational data and system interaction via an array of external devices such as tablets, industrial monitors, or the intuitive cMT Viewer application. Designed for seamless integration into diverse industrial environments, the cMT-SVR-100 delivers reliable performance and extensive communication capabilities without the need for an integrated display, making it a superior choice for advanced, distributed HMI architectures.

Key Features

• Display-Less Design: Optimised for remote or distributed HMI solutions, offering significant space savings and installation versatility.
• Redundant Network Connectivity: Equipped with dual 10/100/1000 Mbps Ethernet ports to support network segmentation, ensuring robust and reliable data transmission.
• Versatile Serial Communication: Features dedicated RS-232 and multiple RS-485 ports, guaranteeing broad compatibility with an extensive range of industrial controllers and PLCs.
• Integrated USB Host: Provides convenient connectivity for essential functions such as data logging, system backups, and the integration of various peripheral devices.
• Expandable Storage: An SD card slot supports SD/SDHC cards, perfect for archiving historical data, recipe management, and custom application storage.
• Passive Cooling System: Its fanless architecture ensures silent operation, reduces maintenance requirements, and enhances durability in challenging industrial settings.
• Space-Saving Installation: Designed for 35mm DIN-rail mounting, facilitating quick and secure deployment within control cabinets.
• Intuitive Configuration: Fully compatible with EasyBuilder Pro software, streamlining the setup and configuration process for efficient system deployment.

Technical Specifications

• Model: cMT-SVR-100
• Processor: High-performance Cortex-A8 600 MHz CPU
• Memory: 256 MB RAM / 256 MB Flash for stable operation and data retention
• Display Interface: Headless device, designed for external display solutions
• Ethernet Ports: 2 x 10/100/1000 Mbps for high-speed network integration
• Serial Connectivity:
  • COM1: RS-232
  • COM2: RS-485 2W/4W
  • COM3: RS-485 2W
• USB Port: 1 x USB 2.0 Host
• Storage Expansion: SD Card Slot (supports SD/SDHC)
• Power Requirements: 24V DC ±20%
• Power Consumption: Efficient 230 mA @ 24V DC
• Mounting Type: Standard 35 mm DIN rail
• Physical Dimensions (L x W x H): 130 x 115 x 27 mm
• Operational Temperature Range: -20°C to +55°C
• Ingress Protection: IP20
• Compliance: CE, UL/cUL certified for global deployment

Applications

The Weintek cMT-SVR-100 is engineered for versatility, making it an indispensable component across various industrial applications:

• SCADA Data Aggregation: Acts as an intelligent gateway, proficiently collecting, processing, and routing data from diverse field devices to SCADA systems.
• Remote Control and Monitoring: Facilitates secure remote access to HMI screens and plant operations from anywhere, using tablets, smartphones, or PCs.
• Optimised Control Panels: Ideal for creating compact and efficient control panels where space is a premium, without compromising functionality or accessibility.
• OEM System Integration: Offers a flexible and powerful solution for bespoke machine designs and integration into custom original equipment manufacturing projects.

Why Choose This Model?

Opting for the Weintek cMT-SVR-100 means investing in a future-proof, highly adaptable HMI solution. Its headless architecture provides unparalleled design flexibility, allowing engineers to create truly distributed and scalable HMI systems. With support for over 250 PLC protocols, seamless integration into existing and new automation frameworks is guaranteed. This device is built to deliver consistently reliable performance, even in the most demanding industrial environments, ensuring your operations run smoothly and efficiently. Its robust design, coupled with advanced networking and communication features, positions the cMT-SVR-100 as a smart choice for optimising automation processes and achieving superior operational insights.

Order Now

Secure your Weintek cMT-SVR-100 today and take the first step towards a more flexible and efficient industrial automation setup. This advanced headless HMI server is available and ready for worldwide delivery, ensuring your projects can proceed without delay, no matter your location.
