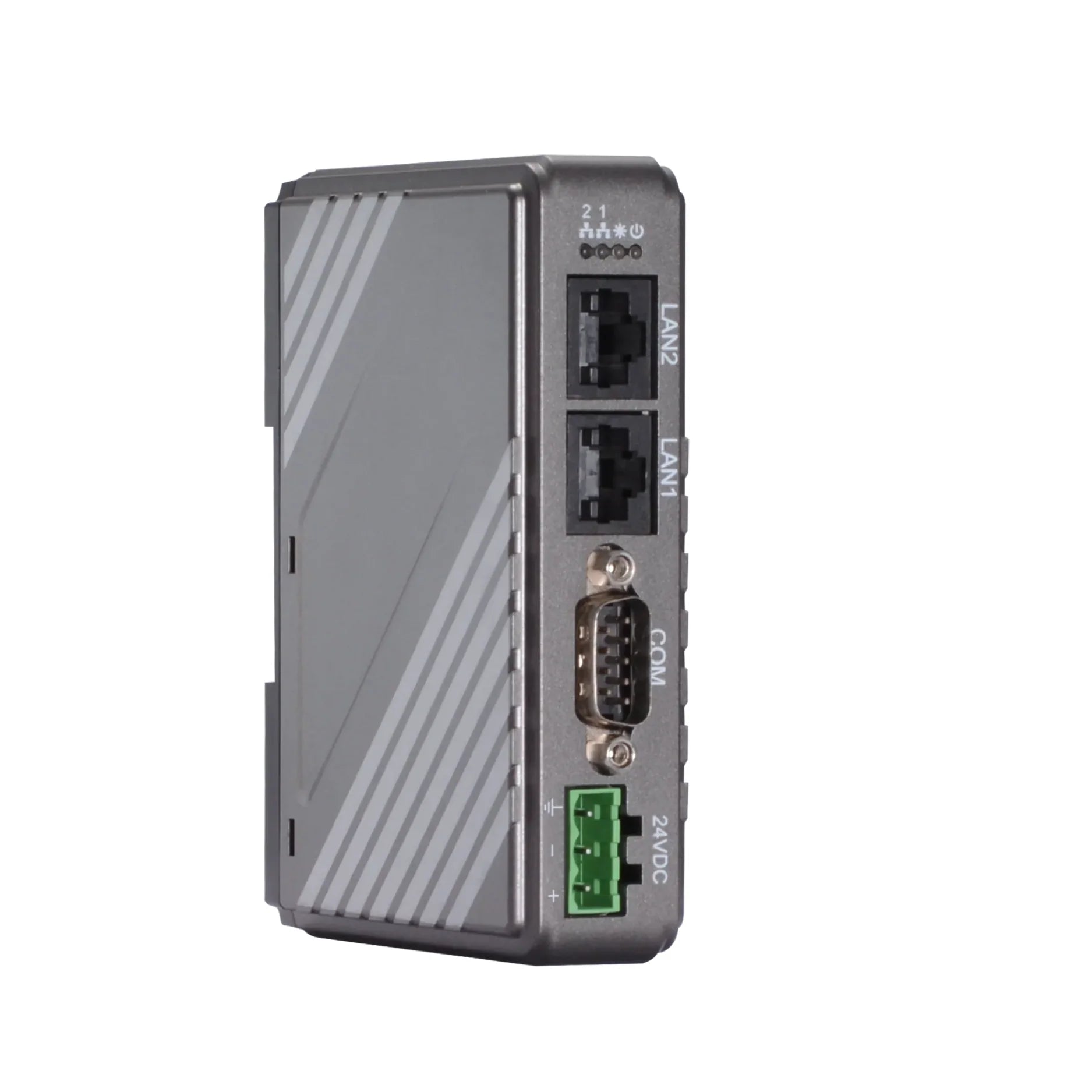

Weintek cMT-G01

Overview

Elevate your industrial infrastructure with the Weintek cMT-G01, a highly adaptable and compact IIoT gateway engineered to harmonize traditional operational technology with cutting-edge digital ecosystems. This device acts as a critical link, translating diverse industrial protocols to facilitate fluid data exchange between field devices, enterprise systems, and prevalent cloud environments. Integrating OPC UA, MQTT, and Modbus TCP/IP capabilities, the cMT-G01 ensures that your legacy machinery can communicate effectively within a modern, interconnected framework. Its robust design, featuring dual Ethernet ports, a trio of serial interfaces, and a fanless architecture for DIN-rail mounting, makes it an indispensable component for industrial settings demanding resilient protocol conversion and comprehensive remote monitoring solutions.

Key Features

• Universal Protocol Support: Boasts OPC UA and MQTT, paving the way for effortless integration with SCADA, MES, ERP, and diverse cloud services.
• Modbus TCP/IP Translation: Efficiently converts Modbus RTU/ASCII signals to Modbus TCP/IP, ensuring broad compatibility.
• Dual Network Connectivity: Equipped with two Ethernet ports (1 x Gigabit LAN1 and 1 x 10/100 Mbps LAN2) for intelligent network segmentation and enhanced data flow management.
• Comprehensive Serial Communication: Offers versatile serial connectivity with COM1 (RS-232), COM2 (RS-485 2W/4W), and COM3 (RS-485 2W) to interface with a wide array of industrial devices.
• Integrated Real-Time Clock (RTC): Guarantees accurate timestamping for all logged data, crucial for precise analysis and compliance.
• Passive Cooling System: Features a fanless design, significantly boosting reliability and extending operational lifespan in challenging industrial environments.
• Space-Saving DIN-Rail Design: Offers a compact form factor for straightforward installation within crowded control cabinets.
• Built-in Electrical Isolation: Provides enhanced electrical protection, safeguarding against power surges and ensuring stable operation.
• EasyAccess 2.0 Ready: Supports optional remote access and monitoring capabilities, enabling proactive maintenance and operational oversight.

Technical Specifications

• Model: cMT-G01
• Processor: 600 MHz 32-bit RISC
• Memory: 256 MB Flash / 256 MB RAM
• Ethernet Ports:
  • LAN1: 10/100/1000 Mbps
  • LAN2: 10/100 Mbps
• Serial Ports:
  • COM1: RS-232 (2-wire)
  • COM2: RS-485 (2-wire/4-wire)
  • COM3: RS-485 (2-wire)
• USB Ports: None
• SD Card Slot: Not available
• Power Input: 24V DC ±20%
• Power Consumption: ~230 mA @ 24VDC
• Dimensions (WxHxD): 27 x 109 x 81 mm
• Weight: Approx. 0.14 kg
• Mounting: 35 mm DIN rail
• Operating Temperature: 0°C to +50°C
• Storage Temperature: -20°C to +60°C
• Humidity: 10% to 90% (non-condensing)
• Protection Rating: IP20
• Certifications: CE, cULus
• Software: EasyBuilder Pro v5.06.01 or later

Applications

• Advanced Industrial Protocol Conversion
• Seamless Integration of Legacy Manufacturing Equipment
• Enhanced SCADA and MES System Connectivity
• Reliable Cloud-Based Data Acquisition
• Proactive Remote Monitoring and Control Systems

Why Choose This Model?

The Weintek cMT-G01 stands out as a superior choice for modern industrial applications due to its unparalleled versatility and robust design. Its comprehensive protocol support ensures connectivity across a myriad of industrial systems, eliminating compatibility hurdles. The gateway's compact footprint and durable, fanless construction make it perfectly suited for demanding industrial environments where space is at a premium and reliability is paramount. Furthermore, its easy integration with Weintek's acclaimed EasyBuilder Pro software simplifies setup and configuration, allowing for rapid deployment and efficient operation. Invest in the cMT-G01 to future-proof your operations and unlock the full potential of your industrial data.

Order Now

Secure your Weintek cMT-G01 today. This essential IIoT gateway is available for immediate global shipping, ready to transform your industrial connectivity.
