Schneider Electric TM5SAI4L

Overview

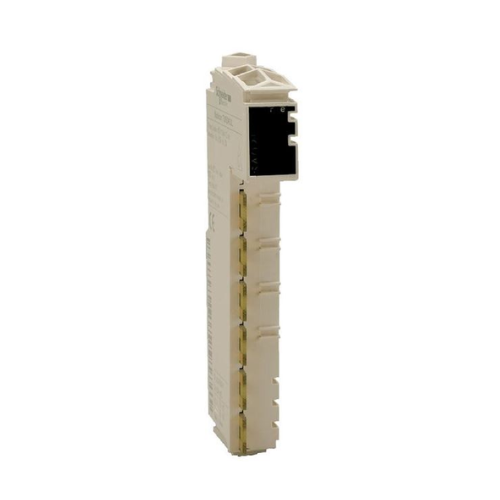

Engineered for exacting industrial environments, the Schneider Electric TM5SAI4L stands as a robust 4-channel analog input module within the esteemed Modicon TM5 series. This state-of-the-art component is meticulously crafted for the precise capture of analog signals, making it an indispensable asset for critical applications demanding absolute accuracy. Its versatile design accommodates both voltage and current inputs, empowering it to seamlessly integrate into systems where accurate analog data—such as that from advanced sensor arrays, intricate process control loops, or automated machinery—is paramount.

Distinguished by its differential input architecture, the TM5SAI4L inherently offers superior noise immunity, safeguarding signal integrity and ensuring unparalleled data reliability in even the most challenging operational contexts. This intelligent design minimizes interference, providing clean, consistent data essential for stable and efficient industrial processes.

Key Features

• Quad Analog Inputs: Equipped with four fully differential channels for enhanced signal stability.
• Flexible Signal Compatibility: Supports a broad spectrum of analog signals including:
• Voltage: ±10 V, 0–10 V
• Current: 0–20 mA, 4–20 mA
• Exceptional Resolution & Accuracy: Delivers superior data quality with:
• 16-bit resolution for fine-grained data capture.
• ±0.1% full-scale accuracy, ensuring dependable measurements.
• Galvanic Isolation: Provides critical electrical separation between input channels and logic circuits, boosting system resilience.
• Integrated Diagnostic LEDs: Clear visual indicators for input status and module diagnostics, simplifying troubleshooting.
• Space-Evolving Form Factor: Its compact footprint is optimized for efficient DIN rail mounting, maximizing panel real estate.
• Seamless System Integration: Guarantees full compatibility and effortless integration within Modicon TM5 and other Modicon controller ecosystems.

Technical Specifications

• Model Identifier: TM5SAI4L
• Product Series: Modicon TM5
• Input Channel Count: 4 differential analog inputs
• Supported Input Ranges:
• Voltage: ±10 V, 0–10 V
• Current: 0–20 mA, 4–20 mA
• Measurement Resolution: 16 bits
• Accuracy Rating: ±0.1%
• Conversion Speed: Less than 1 millisecond per channel
• Isolation Potential: 500 V galvanic isolation between channels and logic circuitry
• Power Supply: Utilizes power from the TM5 bus
• Operational Temperature Range: 0°C to +60°C
• Mounting Method: Standard DIN rail
• Environmental Protection: IP20 rating
• Physical Dimensions (W x H x D): Approximately 22.5 mm x 100 mm x 70 mm
• Product Weight: Approximately 0.12 kg

Applications

The versatility and precision of the Schneider Electric TM5SAI4L make it an ideal choice for a diverse array of industrial applications, including:

• Advanced Process Automation: Essential for accurate input from pressure, flow, and level sensors in sophisticated control systems.
• OEM Machine Monitoring: Provides high-resolution analog supervision for critical parameters in custom-built machinery.
• Energy Consumption Tracking: Integral component for precise data acquisition in comprehensive energy monitoring infrastructures.
• Industrial Equipment Control: Facilitates accurate analog input for robust control and regulation mechanisms across various industrial apparatus.

Why Choose This Model?

Investing in the Schneider Electric TM5SAI4L means opting for a module that delivers superior performance and reliability where it matters most. Its engineering ensures:

• Unwavering Precision & Dependability: Achieve consistent, accurate data crucial for optimizing industrial processes.
• Advanced Signal Integrity: The differential input design actively mitigates noise, ensuring cleaner and more reliable signal acquisition.
• Scalable & Adaptable Design: Benefit from a compact, modular form factor that supports scalable control systems and future expansion.
• Effortless Ecosystem Integration: Enjoy seamless compatibility and simplified deployment within your existing Modicon TM5 infrastructure, enhancing system performance and ease of use.

Order Now

Elevate your industrial control capabilities with the Schneider Electric TM5SAI4L. Experience swift processing and worldwide delivery to meet your project timelines.
