Schneider Electric TM3AQ2

Overview

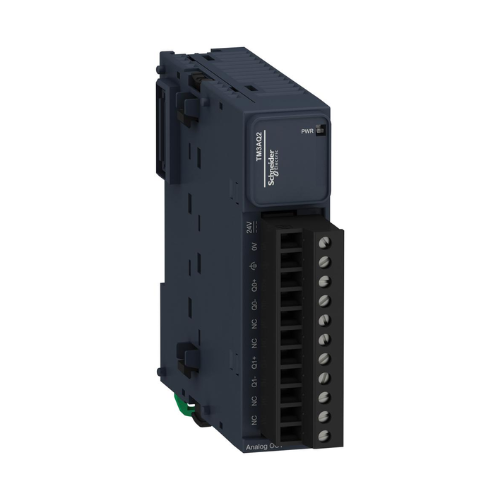

Elevate your industrial automation capabilities with the Schneider Electric TM3AQ2, a high-performance 2-channel analog output module. As a vital component of the Modicon TM3 expansion I/O ecosystem, this module is engineered to seamlessly integrate with your Modicon M221, M241, and M251 Programmable Logic Controllers (PLCs). The TM3AQ2 empowers precise generation of analog signals, making it an indispensable solution for sophisticated applications demanding meticulous voltage or current control over actuators, valves, and variable speed drives. Experience enhanced operational accuracy and system efficiency with this robust and reliable expansion module.

Key Features

• Dual Analog Outputs: Equipped with two fully independent analog output channels, offering versatile control.
• Flexible Signal Types: Supports industry-standard 0–10 V and 4–20 mA output signals, catering to diverse application needs.
• Superior Resolution: Boasts a 12-bit resolution, ensuring ultra-fine control and signal accuracy for critical processes.
• Rapid Update Time: Designed for fast response, facilitating real-time operational adjustments and dynamic control.
• Space-Saving Footprint: Its compact form factor is optimized for efficient control panel real estate utilization.
• Effortless Integration: Guarantees straightforward and reliable connectivity with all Modicon TM3-compatible PLCs.
• Field-Serviceable: Supports hot-swapping, allowing for installation or replacement without requiring a complete system shutdown.

Technical Specifications

• Model Designation: TM3AQ2
• Product Series: Modicon TM3
• Output Configuration: 2 independent analog channels
• Supported Output Types:
  • Voltage: 0–10 V
  • Current: 4–20 mA
• Output Precision: 12-bit resolution
• Accuracy Rating: ±0.5% of full scale
• Load Impedance Requirements:
  • Voltage mode: ≥ 1 kΩ
  • Current mode: ≤ 500 Ω
• Power Input: 24V DC (sourced directly from the base PLC unit)
• Current Draw: Approximately 50 mA at 5 V DC
• Operational Temperature Range: 0°C to 55°C
• Ingress Protection: IP20
• Mounting Method: Standard DIN rail compatibility
• Physical Dimensions (W x H x D): 23.5 mm x 90 mm x 70 mm
• Approximate Weight: 100 g

Applications

• Industrial Process Control: Essential for managing analog actuators and a variety of connected devices.
• HVAC Management: Provides precise regulation for variable components in heating, ventilation, and air conditioning systems, such as dampers and fan speeds.
• Automated Machinery: Facilitates sending critical analog signals to motor drives, hydraulic valves, and pneumatic components.
• Complex Process Automation: Perfectly suited for systems that demand intricate and dynamic analog output adjustments for optimal operation.

Why Choose This Model?

The Schneider Electric TM3AQ2 stands out as a premier choice for expanding your control system. Its exceptional 12-bit resolution ensures unparalleled precision in analog outputs, guaranteeing your processes operate with optimal accuracy. With the versatility to handle both voltage and current signal types, this module adapts effortlessly to a broad spectrum of industrial requirements. Its robust, compact design makes it an ideal fit for any control panel, maximizing space efficiency without compromising performance. Furthermore, its seamless compatibility with Modicon M221, M241, and M251 PLCs ensures a straightforward upgrade path and reliable integration into existing or new Schneider Electric architectures.
