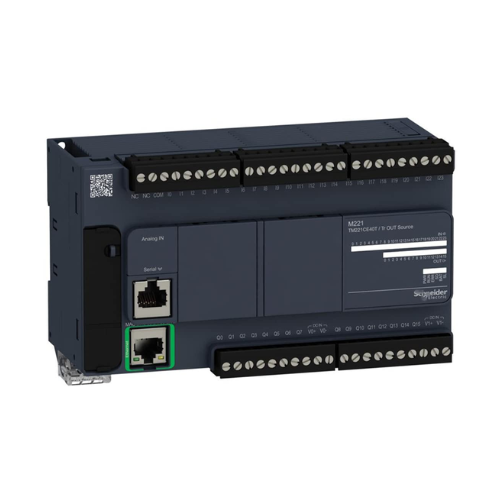

Schneider Electric TM221CE40T

Overview

Elevate your industrial automation capabilities with the Schneider Electric TM221CE40T, a powerful and versatile programmable logic controller from the renowned Modicon M221 series. Engineered for optimal performance and connectivity in modern manufacturing environments, this PLC empowers precise control over a wide range of applications. Boasting an impressive configuration of 24 discrete inputs and 16 PNP transistor outputs, the TM221CE40T is perfectly suited for machine control scenarios demanding rapid response times and resilient network integration.

Seamlessly integrate this controller into your existing industrial infrastructure thanks to its comprehensive communication suite, including Ethernet, serial, and USB ports. This robust connectivity facilitates effortless remote monitoring and streamlined system integration, ensuring your operations run smoothly and efficiently.

Key Features

• 24 configurable discrete inputs, accommodating 24V DC signals for both sink and source configurations.
• 16 high-performance PNP transistor outputs, designed for 24V DC devices, each supporting a maximum output of 0.5A.
• Two integrated analog inputs, providing 10-bit resolution and supporting standard 0-10V signals for precise measurement.
• Advanced communication options:
  • Integrated Ethernet (RJ45) for secure remote access and extensive network functionalities.
  • Convenient USB Mini-B port for simplified programming and rapid configuration.
  • Versatile serial port (RS232/RS485, RJ45) enabling robust Modbus communication.
• Expandable I/O architecture, fully compatible with TM3 I/O modules, offering unparalleled flexibility and scalability.
• Generous memory allocation: 256KB flash memory for program storage and 256KB RAM for efficient program execution.
• Built-in SD card slot for optional data logging, system backups, and expandable storage solutions.
• Compact DIN rail mounting design, ensuring effortless installation and optimal space utilization within control cabinets.
• Full compatibility with EcoStruxure Machine Expert – Basic (formerly SoMachine Basic) for intuitive programming and development.

Technical Specifications

• Model: TM221CE40T
• Series: Modicon M221
• Supply voltage: 24V DC
• Digital inputs: 24
• Digital outputs: 16 PNP transistor
• Analog inputs: 2 (0-10V)
• Program execution speed: 0.2µs per instruction
• Memory: 256KB flash, 256KB RAM
• Communication: Ethernet, USB, RS232/RS485
• Mounting: DIN rail
• Protection rating: IP20
• Operating temperature: -10°C to +55°C
• Dimensions (W x H x D): Approximately 130mm x 90mm x 70mm
• Certifications: CE, UL, cULus, EAC, RCM

Applications

• Automated machine control for small to medium-scale industrial processes.
• Precision process control across various sectors, enabling vigilant monitoring and adept machinery management.
• Sophisticated material handling systems, including complex conveyor networks and advanced sorting machinery.
• Comprehensive energy and facility management solutions, encompassing HVAC systems, intelligent lighting, and meticulous power monitoring.

Why Choose This Model?

The Schneider Electric TM221CE40T stands out as a premier choice for industrial automation due to its exceptional blend of features and capabilities:

• Experience unparalleled adaptability with flexible I/O options, catering to a diverse array of industrial application requirements.
• Benefit from lightning-fast processing speeds, ensuring real-time control and immediate response for critical operations.
• Achieve seamless network integration through support for multiple communication protocols, simplifying connectivity across your infrastructure.
• Embrace future-proof scalability and expandability with full compatibility for TM3 expansion modules, allowing your system to grow with your needs.
• Rely on a compact, robust, and durable design, meticulously engineered for resilient operation within demanding industrial environments.

Order Now

Secure your Schneider Electric TM221CE40T today and revolutionize your industrial control systems. Benefit from our swift shipping and comprehensive worldwide delivery services.
