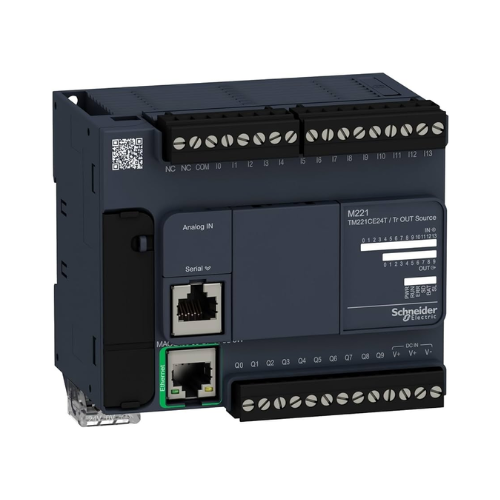

Schneider Electric TM221CE24T

Overview

Step into a new era of industrial control with the Schneider Electric TM221CE24T, a dynamic programmable logic controller from the celebrated Modicon M221 series. Engineered for precision and adaptability, this PLC empowers a vast array of industrial automation scenarios. It skillfully integrates 14 discrete inputs and 10 PNP transistor outputs, offering the versatility required for intricate control processes. The embedded Ethernet port ensures effortless network integration and streamlined communication within your operational infrastructure.

Key Features

• Precision Inputs: Equipped with 14 discrete inputs, ready for 24V DC signals, and capable of both sink and source configurations to meet diverse operational needs.
• Reliable Outputs: Features 10 PNP transistor outputs, ideally suited for managing 24V DC devices, each supporting a maximum current of 0.5A.
• Integrated Analog Functionality: Includes 2 analog inputs, providing 10-bit resolution and supporting 0–10V signals for detailed data acquisition.
• Advanced Communication Hub:
  • Ethernet Connectivity: A robust RJ45 connector enables seamless network integration and high-speed data exchange.
  • USB Programming Port: A convenient Mini-B USB 2.0 connector facilitates swift programming and configuration updates.
  • Flexible Serial Interface: Boasts a non-isolated serial link (Serial 1) with an RJ45 connector, supporting both RS232 and RS485 interfaces for broad compatibility.
• Ample Memory Capacity:
  • Generous RAM: Provides 256KB for efficient handling of internal variables and user-defined applications.
  • Secure Flash Memory: Incorporates 256KB of built-in flash memory, ensuring reliable application and data backup.
  • Expandable Storage: Features an SD card slot, supporting an optional 2GB SD card for extensive data logging and storage requirements.
• Intuitive Programming Environment: Fully compatible with SoMachine Basic software, offering a user-friendly platform for efficient machine programming.
• Effortless Installation: Designed specifically for DIN rail mounting, guaranteeing quick and straightforward integration into existing control panels.

Technical Specifications

• Model Identifier: TM221CE24T
• Product Series: Modicon M221
• Operating Voltage: 24V DC
• Power Consumption Profile: Approximately 14W
• Physical Dimensions (W x H x D): 110mm x 90mm x 70mm
• Unit Mass: 0.395kg
• Environmental Protection: IP20 Rating
• Operational Temperature Range: -10°C to +55°C (horizontal setup); -10°C to +35°C (vertical setup)
• Storage Temperature Range: -25°C to +70°C
• Global Certifications: CE, IACS E10, RCM, ABS, LR, DNV-GL, CSA, EAC, cULus
• Adherence to Standards: EN/IEC 60664-1, EN/IEC 61131-2, EN/IEC 61010-2-201

Applications

• Precision Industrial Control: An indispensable asset for orchestrating machinery and optimizing processes across diverse manufacturing landscapes.
• Integrated Building Management: Powers sophisticated management of HVAC systems, dynamic lighting setups, and other critical building infrastructure.
• Advanced Material Handling: Excels in the control of high-efficiency conveyor systems, precision sorting machines, and intelligent automated storage solutions.
• Optimized Energy Control: Facilitates meticulous monitoring and precise regulation of energy consumption in demanding industrial facilities.

Why Choose This Model?

The Schneider Electric TM221CE24T stands out as a premier choice for modern automation needs. Its intelligently designed I/O configuration seamlessly blends discrete and analog inputs with robust transistor outputs, providing unparalleled versatility for a multitude of applications. The integrated Ethernet and serial ports ensure effortless integration into both new and existing network architectures, guaranteeing continuous and flexible communication. Furthermore, the compatibility with SoMachine Basic software offers an intuitively crafted programming environment, simplifying complex control tasks. Housed in a compact yet exceptionally durable design, this PLC is built to thrive in the harshest industrial settings, ensuring long-term reliability and performance. Invest in the TM221CE24T for a powerful, adaptable, and dependable control solution.

Order Now

Elevate your automated systems to peak performance with the Schneider Electric TM221CE24T Modicon M221 PLC. Experience rapid shipping and benefit from our worldwide distribution network to implement this essential component without delay.
