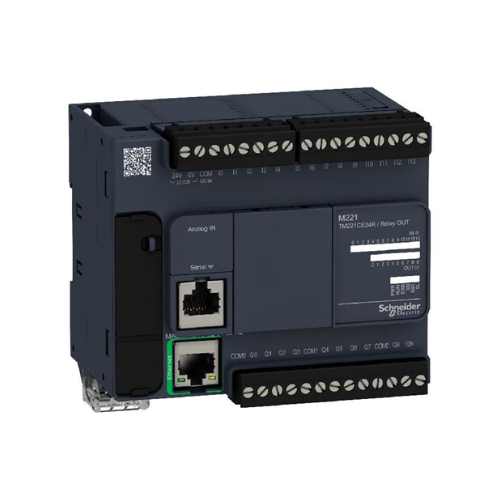

Schneider Electric TM221CE24R

Overview

Unlock the full potential of your industrial operations with the Schneider Electric TM221CE24R, a sophisticated programmable logic controller (PLC) from the renowned Modicon M221 family. Engineered for hardwired industrial automation infrastructures, this powerhouse delivers unparalleled control and adaptability. With its comprehensive input/output configuration, including 14 discrete inputs and 10 robust relay outputs, the TM221CE24R is meticulously designed to manage a diverse array of applications with precision. The integrated Ethernet port further elevates its capabilities, ensuring effortless communication and seamless network integration across your systems.

Key Features

• Versatile Inputs: Equipped with 14 discrete inputs, meticulously calibrated for 24V DC signals, accommodating both sink and source configurations for maximum compatibility.
• Reliable Relay Outputs: Features 10 normally open relay outputs, ideally suited for controlling a broad spectrum of devices operating within 5–125V DC or 5–250V AC, each supporting a maximum current of 2A.
• Precise Analog Monitoring: Incorporates 2 analog inputs, offering a refine 10-bit resolution and supporting standard 0–10V signals for accurate data acquisition.
• Advanced Communication Suite:
  • Integrated Ethernet: An RJ45 connector ensures robust network communication for efficient data exchange.
  • Convenient USB Access: A Mini-B USB 2.0 connector streamlines programming and configuration tasks.
  • Flexible Serial Connectivity: Includes a non-isolated serial link (Serial 1) with an RJ45 connector, supporting both RS232 and RS485 interfaces for expanded connectivity.
• Robust Memory Architecture:
  • Dynamic RAM: 256KB dedicated to internal variables and the smooth execution of user applications.
  • Secure Flash Memory: A substantial 256KB built-in for unwavering application and data backup.
  • Expandable Storage: An SD card slot is available for an optional 2GB SD card, providing extensive additional data storage capacity.
• Intuitive Programming Environment: Fully compatible with SoMachine Basic, offering an exceptionally user-friendly platform for streamlined machine programming.
• Effortless Installation: Boasts a design optimized for DIN rail mounting, guaranteeing quick and straightforward integration into your existing setups.

Technical Specifications

• Model Designation: TM221CE24R
• Product Series: Modicon M221
• Input Voltage Range: 100–240V AC
• Operating Frequency: 50/60Hz
• Typical Power Consumption: Approximately 19W
• Compact Dimensions (W x H x D): 110mm x 90mm x 70mm
• Lightweight Design: 0.395kg
• Environmental Protection: IP20 Rating
• Operational Temperature Range: -10°C to +55°C (horizontal placement); -10°C to +35°C (vertical placement)
• Storage Temperature Range: -25°C to +70°C
• Global Certifications: CE, IACS E10, RCM, ABS, LR, DNV-GL, CSA, EAC, cULus
• Adherence to Standards: EN/IEC 60664-1, EN/IEC 61131-2, EN/IEC 61010-2-201

Applications

• Precision Industrial Control: An indispensable asset for the meticulous control of machinery and intricate processes within diverse manufacturing landscapes.
• Integrated Building Management: Perfectly suited for orchestrating HVAC, sophisticated lighting networks, and an array of other essential building systems.
• Optimized Material Flow: Empowers efficient operation in conveyor systems, advanced sorting machines, and sophisticated automated storage and retrieval solutions.
• Strategic Energy Oversight: Instrumental in the vigilant monitoring and intelligent control of energy consumption across various industrial environments.

Why Choose This Model?

The Schneider Electric TM221CE24R stands out as a superior choice for several compelling reasons:

• Dynamic I/O Configuration: Its thoughtful combination of discrete and analog inputs, coupled with robust relay outputs, ensures exceptional adaptability for a wide spectrum of application requirements.
• Seamless Network Integration: Featuring both Ethernet and serial ports, this controller guarantees effortless integration into existing networks and complex control systems.
• Streamlined Programming Experience: Leverage the power of SoMachine Basic software for an intuitive and highly efficient programming environment, minimizing development time and effort.
• Resilient and Space-Saving Design: Benefit from a compact footprint combined with a rugged construction, promising unwavering reliability and performance in demanding industrial settings.

Order Now

Elevate your automation infrastructure with the cutting-edge Schneider Electric TM221CE24R Modicon M221 PLC. Experience enhanced control, superior efficiency, and the reliability that defines Schneider Electric. Take advantage of our fast shipping to implement this advanced solution into your operations without delay.
