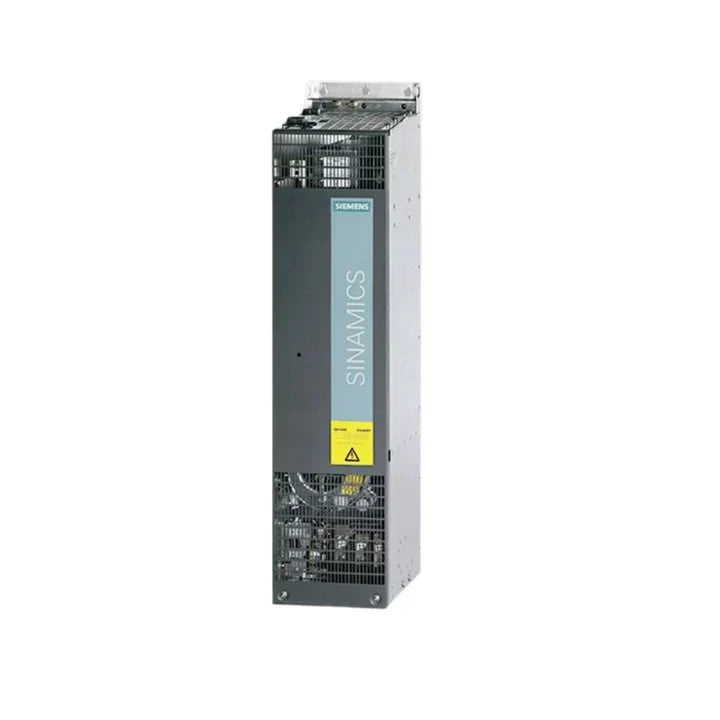

Siemens 6SL3330-6TG35-5AA3

Overview

The Siemens 6SL3330-6TG35-5AA3 is a high-performance SINAMICS S120 Smart Line Module, expertly engineered to serve as a rectifier and converter unit within sophisticated modular drive systems. This robust power module is designed for demanding industrial applications, seamlessly converting a 3-phase AC input voltage range of 500–690 V (50/60 Hz) into a stable DC link voltage of 675–930 V. With an impressive continuous current output of 550 A and a rated power of 450 kW, the 6SL3330-6TG35-5AA3 delivers the consistent and reliable power essential for critical operations. Its integrated internal air cooling mechanism ensures optimal thermal management, while the IP00 chassis/open-frame design, complete with DRIVE-CLiQ interface support, facilitates straightforward integration into existing and new industrial setups. This module represents Siemens' commitment to power efficiency, system integration, and operational reliability in the realm of advanced drive technology.

Key Features

• Advanced SINAMICS S120 Integration: Specifically designed as a Smart Line Module for the versatile SINAMICS S120 drive system, ensuring seamless compatibility and optimal performance.
• Wide AC Input Range: Accepts a broad 3-phase AC input voltage of 500–690 V, providing flexibility and stability across various power grid conditions.
• High DC Link Output: Delivers a consistent DC link voltage between 675–930 V, crucial for powering high-demand motor applications.
• Powerful Current Output: Boasts a continuous output current of 550 A, capable of supporting heavy-duty industrial machinery without compromise.
• Robust 450 kW Power Rating: Offers a significant 450 kW rated power, making it suitable for high-power applications requiring substantial energy conversion.
• Efficient Internal Air Cooling: Features an integrated air cooling system for effective heat dissipation, prolonging component life and ensuring reliable operation under sustained loads.
• DRIVE-CLiQ Interface: Equipped with a DRIVE-CLiQ interface for rapid and intelligent communication within the SINAMICS S120 drive landscape, simplifying commissioning and diagnostics.

Technical Specifications

• Part Number: 6SL3330-6TG35-5AA3
• Product Family: SINAMICS S120 Smart Line
• Input Voltage: 500–690 V AC, 3-phase
• Output (DC Link): 675–930 V
• Continuous Current: 550 A
• Rated Power: 450 kW
• Cooling Method: Internal air cooling
• Frame / Enclosure: Chassis / open frame (IP00)
• Communication Interface: DRIVE-CLiQ

Applications

• High-Power Industrial Machinery: Ideal for managing the power requirements of large compressors, industrial pumps, and extensive fan systems in heavy industries.
• Modular Drive Architectures: Perfectly suited for integration into complex and modular drive systems within automated production lines and manufacturing facilities.
• Energy-Demanding Motor Systems: Provides reliable power conversion for highly dynamic and energy-intensive motor applications, ensuring smooth and efficient operation.
• Modernization and Upgrades: An excellent choice for upgrading or replacing components in existing SINAMICS S120 Smart Line drive systems, enhancing performance and reliability.
• Renewable Energy Systems: Can be deployed in applications requiring precise power conversion and management for renewable energy integration.

Why Choose This Model?

• Unmatched Performance: Engineered for mid-to-high power applications, this module delivers a balanced blend of efficiency and raw power, optimized for demanding industrial environments.
• Seamless Integration: Its compact chassis/open-frame (IP00) design significantly simplifies integration into diverse control cabinet layouts and existing drive systems, offering installation flexibility.
• Advanced Communication Capability: The integrated DRIVE-CLiQ interface ensures modern, high-speed communication and control, facilitating easier commissioning, diagnostics, and real-time operational adjustments.
• Siemens Reliability: Backed by the renowned reputation of Siemens, this module offers proven design, exceptional build quality, and long-term reliability essential for continuous factory operations.
• Global Availability & Support: As a Siemens product, it benefits from extensive global support networks, ensuring peace of mind regarding service, spare parts, and technical assistance worldwide.
• Optimized for Energy Efficiency: Designed to provide efficient power conversion, contributing to reduced energy consumption and operational costs in industrial settings.

Order Now

Elevate your industrial drive systems with the unparalleled power and reliability of the Siemens 6SL3330-6TG35-5AA3 SINAMICS S120 Smart Line Module. This essential component for high-performance applications is readily available and poised for global shipment. Secure your operational efficiency and power infrastructure today.
