Siemens 6SL3320-1TE41-0AA3

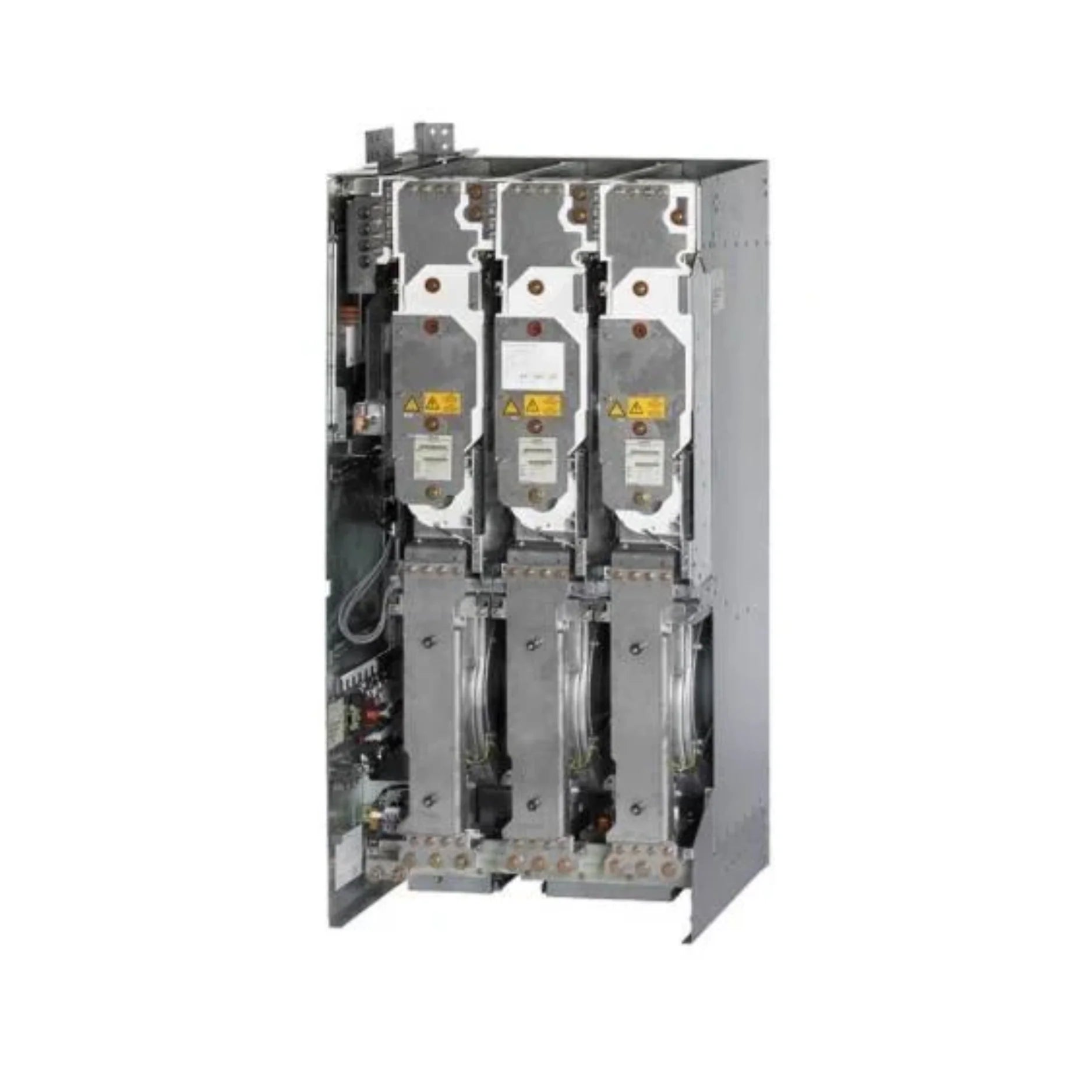

Overview: Siemens SINAMICS S120 Single Motor Module 6SL3320-1TE41-0AA3

The Siemens SINAMICS 6SL3320-1TE41-0AA3 stands as a pinnacle of industrial drive technology, meticulously engineered for demanding high-power applications. This single motor module, an integral component of the renowned SINAMICS S120 family, delivers unparalleled performance and reliability. Designed to seamlessly integrate into complex modular drive systems, it acts as a robust motor power block, perfectly complementing control units and shared DC bus architectures. With its impressive technical specifications and adherence to Siemens' rigorous engineering standards, the 6SL3320-1TE41-0AA3 ensures optimal operation and longevity in the most challenging industrial environments. Its open frame design (IP00) and internal air cooling underscore its suitability for integration into protective cabinets, offering a compact yet powerful solution for diverse industrial needs.

Key Features

• Exceptional Power Output: Delivers a substantial 560 kW of power, making it suitable for heavy-duty industrial machinery.
• High Current Capacity: Features a continuous current rating of 985 A, ensuring robust performance under sustained loads.
• Flexible DC Input: Accepts a wide DC link input range of 510 to 720 V DC, offering versatility in power supply configurations.
• Precise AC Output: Provides a three-phase AC output ranging from 0 to 480 V, enabling precise motor control.
• Integrated Cooling: Equipped with internal forced-air cooling to maintain optimal operating temperatures and enhance reliability.
• Modular & Compact Design: Open frame (IP00) module design facilitates straightforward integration into existing drive cabinets and systems.
• Drive-CLiQ Interface: Seamlessly integrates with signal and feedback systems via the advanced Drive-CLiQ interface for enhanced communication and control.

Technical Specifications

• Part Numbers: 6SL3320-1TE41-0AA3, 6SL3320/1TE41/0AA3
• DC Input Voltage: 510 to 720 V DC
• AC Output: 0 to 480 V, three-phase
• Continuous Current: 985 A
• Rated Power: 560 kW
• Cooling Method: Internal air cooling
• Protection / Enclosure: IP00 (open module design)
• Interface / Communication: Drive-CLiQ for sensor and module communication
• Ambient Conditions: Designed to operate within standard industrial ambient ranges
• Module Form Factor: Optimized for mounting within industrial drive cabinets or frames

Applications

• High-Power Industrial Motors: Ideal for driving large pumps, compressors, and fans requiring significant power and precise control.
• Heavy-Duty Machine Tools and Axes: Provides the necessary power and accuracy for sophisticated manufacturing equipment and motion control systems.
• Modular Drives with Shared DC Bus Architectures: Perfectly suited for scalable and flexible multi-motor systems where efficient power distribution is critical.
• Systems Requiring Reliable, High-Current Power Modules: Ensures stable and consistent power delivery in applications demanding robust current capabilities.
• Industrial Installations Requiring Scalable Power Blocks: Facilitates the easy expansion and customization of drive systems to meet evolving operational needs.

Why Choose the Siemens 6SL3320-1TE41-0AA3?

• Unmatched Power Density: Achieve high current and power capacity within a remarkably compact, modular package, optimizing space and performance.
• Seamless SINAMICS S120 Integration: Experience effortless integration into existing or new SINAMICS S120 ecosystems, ensuring compatibility and streamlined operation.
• Engineered for Reliability: Benefit from robust internal cooling and Siemens' globally recognized engineering excellence, guaranteeing long-term durability and performance.
• Designed for Demanding Industries: This module is built to thrive in the most stringent conditions found in heavy industry, offering unwavering performance.
• Enhanced Scalability and Flexibility: Its modular design provides exceptional scalability, allowing for easy adaptation and expansion in multi-motor systems.
• Global Availability & Support: As a Siemens product, anticipate worldwide availability and comprehensive technical support, ensuring peace of mind.

Order Now

The Siemens 6SL3320-1TE41-0AA3 SINAMICS S120 single motor module is readily available to elevate your industrial operations. Lead times may vary depending on current stock levels and distribution channels. Contact us today to secure this essential component for your high-power drive systems and experience the pinnacle of industrial automation.
