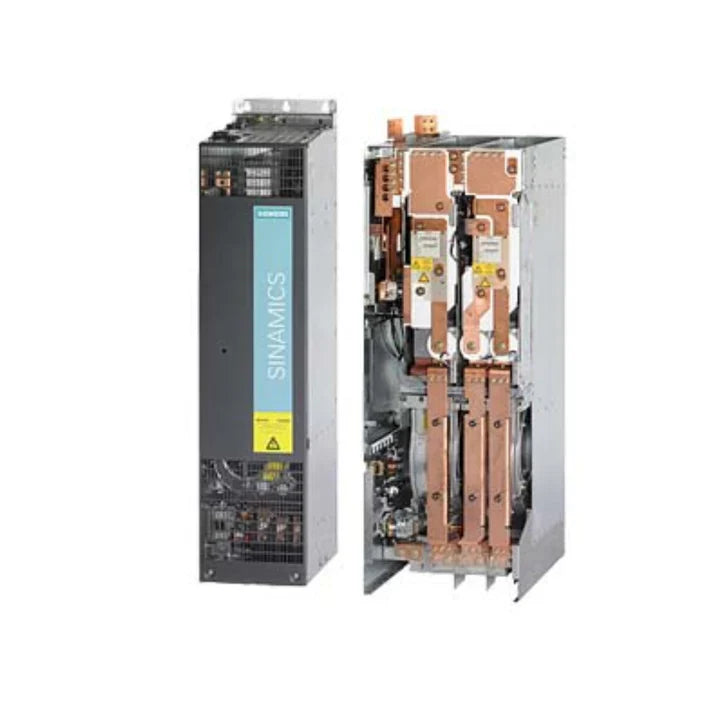

Siemens 6SL3320-1TG33-3AA3

Overview

The Siemens 6SL3320-1TG33-3AA3 is a high-performance SINAMICS S120 single motor module meticulously engineered for the most demanding industrial drive applications. This robust module stands out for its exceptional power delivery and efficiency, making it an ideal choice for large-scale automation systems requiring precise control and high output. With a substantial DC link input ranging from 675 V to 1035 V and a versatile three-phase AC output of 0–690 V at a continuous current of 330 A, it provides the reliability and power necessary to drive critical industrial processes globally. Its sophisticated design, featuring a chassis frame size with internal air cooling, ensures optimal thermal management even under strenuous operating conditions. Furthermore, the integration of extended Safety Integrated functions and the advanced DRIVE-CLiQ interface guarantees seamless communication and enhanced operational safety within existing SINAMICS S120 drive systems, reaffirming Siemens' commitment to innovation and industrial excellence.

Key Features

• High-Current Capability: Precisely rated at 330 A for continuous operation, offering substantial power for heavy-duty industrial machinery.
• Wide Input Voltage Range: Operates efficiently with a DC input of 675–1035 V, ensuring adaptability to various power supply configurations.
• Flexible Output Voltage: Provides a versatile 3AC 0–690 V output, accommodating a broad spectrum of motor types and applications.
• Optimized Cooling: Features internal air cooling within a chassis frame, ensuring reliable performance and extended lifespan under demanding conditions.
• Advanced Safety Integration: Supports extended Safety Integrated functions for enhanced operational security and compliance with industrial standards.
• Seamless System Integration: Utilizes the DRIVE-CLiQ communication interface for effortless integration and robust data exchange within SINAMICS S120 drive systems.
• Robust Chassis Design: Engineered in a durable chassis format, allowing for straightforward installation and integration into industrial cabinets.

Technical Specifications

• Part Number: 6SL3320-1TG33-3AA3
• Series: SINAMICS S120
• Motor Module Type: Single Motor Module
• Input Voltage: DC 675–1035 V
• Output Voltage: 3AC 0–690 V
• Output Current: 330 A continuous
• Cooling Method: Internal air cooling
• Frame Size: Chassis format
• Functions: Safety Integrated, DRIVE-CLiQ communication

Applications

• Heavy-Duty CNC Machining: Powers high-precision CNC machines requiring reliable and powerful motor control.
• High-Capacity Industrial Pumps: Ideal for critical pumping applications in water treatment, oil and gas, and chemical processing.
• Large Industrial Fans and Compressors: Drives large-scale ventilation and compression systems in manufacturing and energy sectors.
• Advanced Robotics Systems: Provides robust power and control for complex robotic arms and automated assembly lines.
• Material Handling Equipment: Suitable for cranes, conveyors, and other heavy material handling machinery.
• Customized Modular Drive Systems: Integrates seamlessly into bespoke industrial drive solutions requiring 330 A output.

Why Choose This Model?

• Unmatched Reliability: Engineered by Siemens, a leader in industrial automation, ensuring long-term performance and durability in harsh environments.
• Superior Power Delivery: Offers a consistent 330 A output, making it capable of handling the most power-intensive industrial tasks with ease.
• Enhanced Safety Features: The inclusion of advanced Safety Integrated functions provides crucial protection for personnel and equipment, minimizing risks.
• Effortless Integration: Designed for seamless integration into existing SINAMICS S120 infrastructures, simplifying installation and reducing downtime.
• Optimized for Efficiency: Its design ensures efficient power conversion and thermal management, contributing to energy savings and reduced operational costs.
• Global Availability: Ready for worldwide shipping, ensuring that critical components are accessible wherever your operations are located.

Order Now

Elevate your industrial drive systems with the Siemens 6SL3320-1TG33-3AA3 SINAMICS S120 Single Motor Module. Experience the unparalleled combination of power, precision, and reliability that only Siemens can deliver. This essential component for high-output automation is available for immediate order and ships worldwide, ensuring your operations maintain peak performance without delay.
