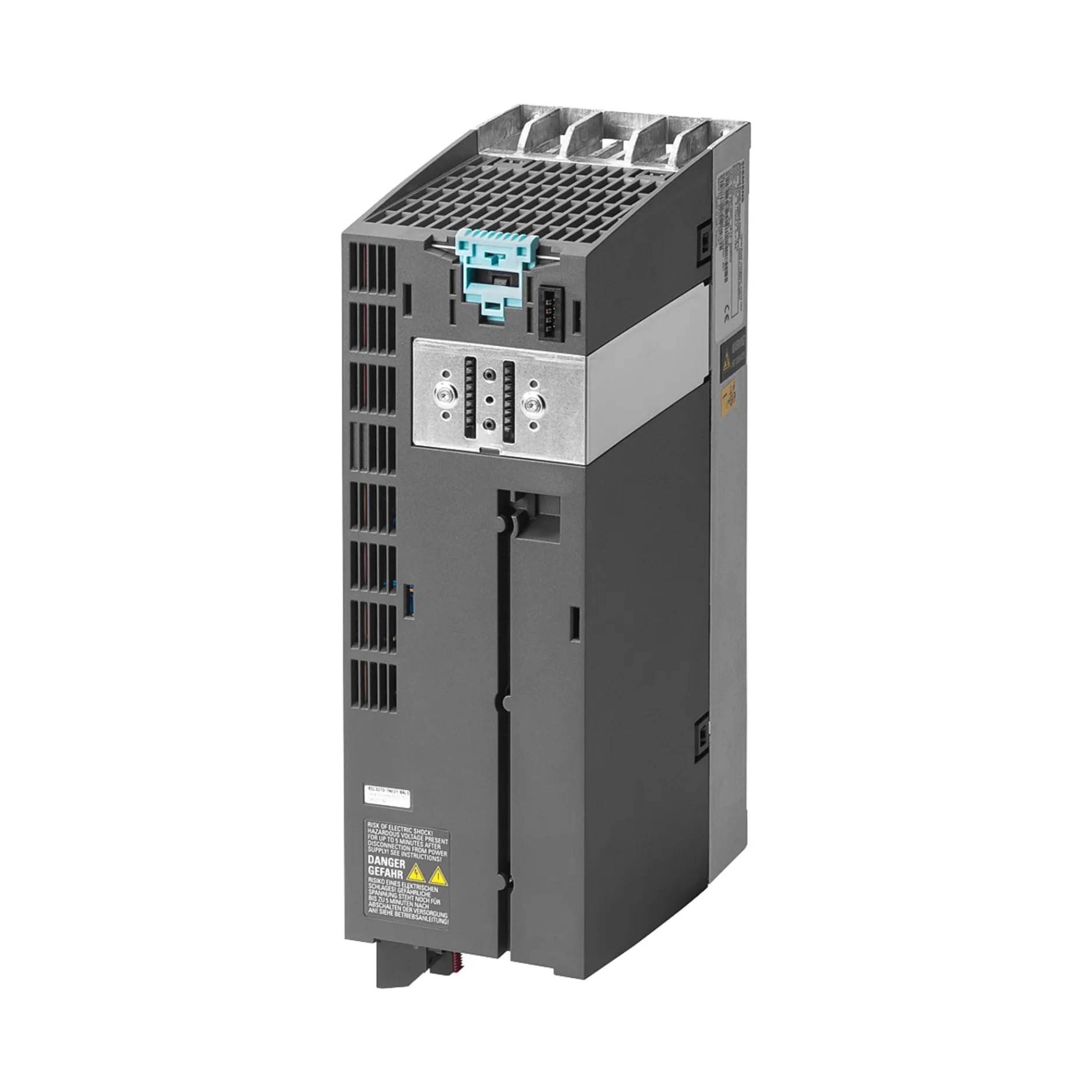

Siemens 6SL3210-1PC22-2UL0

Overview

The Siemens 6SL3210-1PC22-2UL0 is a core component of the acclaimed SINAMICS G120C family, offering a sophisticated yet compact solution for precise control of induction motors. Engineered for versatility and performance, this inverter delivers a robust 11 kW (15 HP) power output, making it ideal for a wide array of industrial applications. Its integrated I/O capabilities and support for standard communication protocols ensure seamless integration into existing systems, while its user-friendly design facilitates rapid installation and efficient operation. Experience enhanced motor control and energy efficiency with this reliable and high-performing Siemens inverter.

Key Features

• Powerful Performance: Delivers 11 kW (15 HP) rated power, suitable for demanding industrial motor control.
• Wide Input Voltage Range: Operates efficiently with 3AC 380–480 V ±10% input voltage.
• Integrated EMC Filter: Features a Class A EMC filter for reduced electromagnetic interference and compliance.
• Built-in Braking Chopper: Enhances motor control and safety, crucial for rapid deceleration.
• Comprehensive I/O: Equipped with 6 digital inputs, 2 digital outputs, 2 analog inputs, and 1 analog output for flexible connectivity.
• Versatile Communication: Supports integrated RS485, USS, and Modbus RTU communication protocols for broad compatibility.
• Compact & Space-Saving: Optimized design for easy integration into control panels, saving valuable space.
• Effortless Commissioning: Simplifies setup via USB interface or BOP-2/IOP operator panels, reducing downtime.

Technical Specifications

• Siemens Code: 6SL3210-1PC22-2UL0
• Power Rating: 11 kW / 15 HP
• Rated Output Current: 25.4 A
• Input Voltage: 3AC 380–480 V ±10%
• Overload Capacity: 150% for 60s (Light Overload), 200% for 3s (Heavy Overload)
• Braking Chopper: Integrated
• Cooling Method: Air-cooled
• Protection Class: IP20
• Ambient Temperature: −10 °C to +50 °C (with derating above 40 °C)
• Dimensions (HxWxD): Approximately 380 × 140 × 203 mm

Applications

• Pumps and Fans: Provides precise speed control for optimizing fluid and air handling systems, reducing energy consumption.
• Conveyor Systems: Ensures smooth and reliable material transport with adjustable speed and torque, improving operational efficiency.
• Compressors: Enhances the efficiency and extends the lifespan of compressors through optimized motor control.
• Material Handling: Ideal for various material handling machinery, offering robust and adaptable motor performance.
• General Machinery: Perfectly suited for a broad range of general machinery in discrete manufacturing industries, boosting productivity.
• HVAC Systems: Optimizes heating, ventilation, and air conditioning systems by precisely controlling fan and pump motors.

Why Choose This Model?

• Maximized Space Efficiency: Its compact footprint allows for seamless integration into control panels, even in confined spaces.
• All-in-One Solution: Functions as a complete drive system with integrated I/O, EMC filter, and braking chopper, simplifying installation and reducing component count.
• Flexible & Fast Setup: Offers versatile communication options and straightforward commissioning processes, significantly reducing setup time and effort.
• Siemens Reliability & Efficiency: Engineered with Siemens' renowned quality and precision, ensuring long-term reliability and superior energy efficiency.
• Cost-Effective Performance: Delivers a high-value solution for standard drive applications, balancing advanced features with economic efficiency.
• Enhanced Motor Protection: Advanced protective functions safeguard motors and connected equipment, extending their operational life.

Order Now

Elevate your industrial motor control systems with the Siemens 6SL3210-1PC22-2UL0 SINAMICS G120C inverter. This robust, compact, and highly efficient solution is designed to optimize performance and reduce energy consumption in a wide range of everyday industrial applications. Invest in Siemens technology for unparalleled reliability and control.
