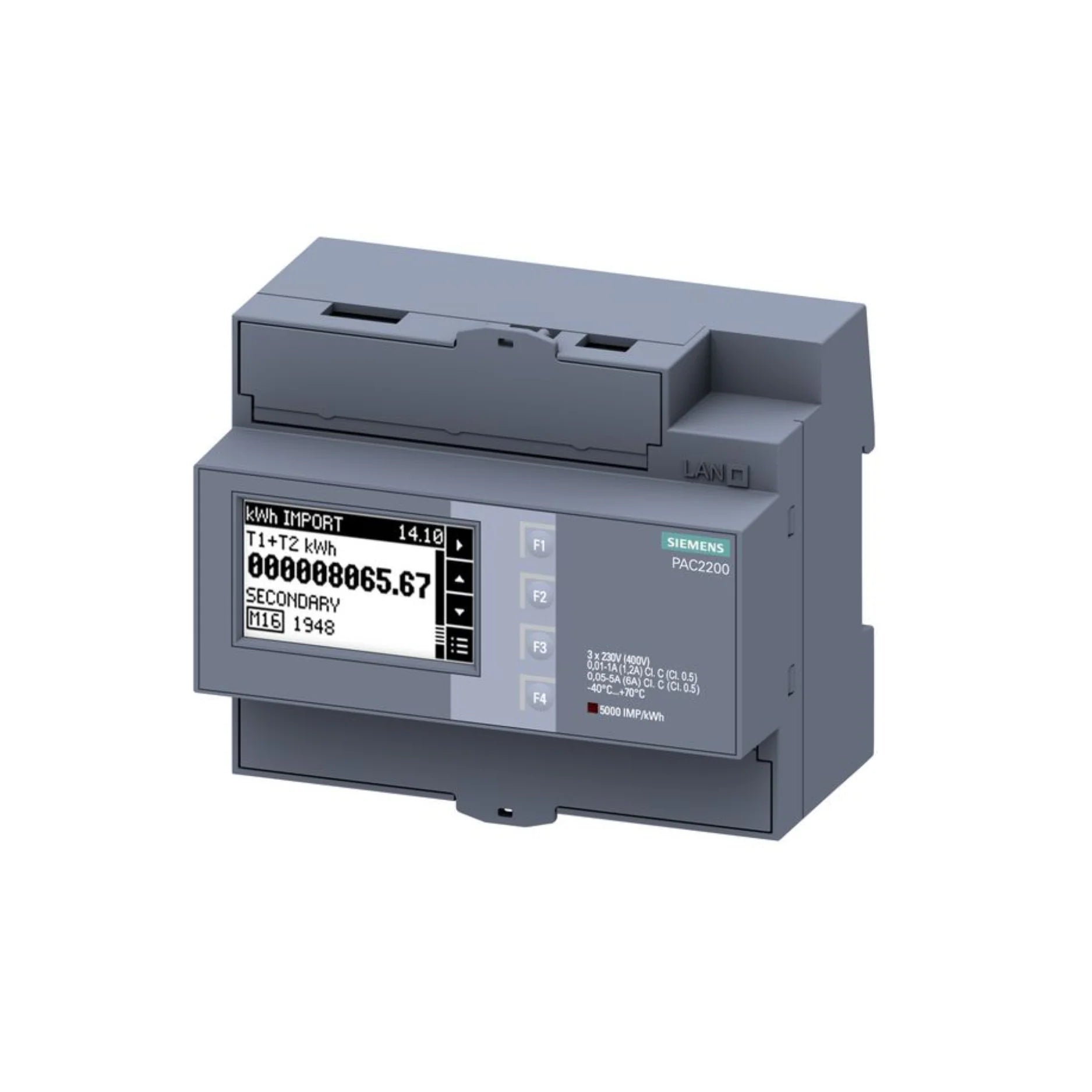

Siemens 7KM2200-2EA30-1EA1

Overview

Unlock the full potential of your energy management strategy with the Siemens 7KM2200-2EA30-1EA1 SENTRON PAC2200 Power Monitoring Device. Engineered for precision and reliability, this advanced device provides comprehensive insights into your electrical systems, making it an indispensable tool for optimizing energy consumption and ensuring operational efficiency in 3-phase environments. With its robust feature set, including 5A current transformer inputs, a clear LCD display for immediate data access, and seamless Modbus RTU communication, the PAC2200 integrates effortlessly into a wide array of industrial and commercial applications. From real-time monitoring of critical electrical parameters to facilitating integration with advanced building or energy management systems, this Siemens powerhouse delivers actionable data that drives smart decisions and sustainable operations.

Key Features

• Precision 3-Phase Measurement: Accurately monitors voltage, current, power, energy, frequency, and power factor in complex 3-phase systems.
• 5A Current Transformer Input: Compatible with external 5A current transformers for flexible and scalable current measurement.
• Modbus RTU Communication: Enables seamless integration and data exchange with SCADA, BMS, and other energy management platforms via RS-485.
• Integrated LCD Display: Provides a backlit, multi-line LCD for clear, on-site visualization of real-time electrical data and configurable views.
• DIN Rail Mounting: Designed for quick and efficient installation on standard DIN rails, optimizing panel space and simplifying setup.
• Robust Protection Rating: Features an IP20 rating for the device housing and an IP40 rating for the front panel, ensuring durability in industrial settings.
• Wide Voltage Range: Supports a versatile voltage range of 277/480V AC (L-N/L-L) to accommodate diverse power supply configurations.

Technical Specifications

• Part Number: 7KM2200-2EA30-1EA1
• Series: SENTRON PAC2200
• System Type: 3-phase
• Current Input: 5A (via external CTs)
• Voltage Range: 277/480V AC (L-N/L-L)
• Measurement Parameters: Voltage, current, power, energy, frequency, power factor
• Communication: RS-485 (Modbus RTU)
• Display: Backlit LCD with multiple line display and configurable views
• Mounting: DIN rail
• Protection Rating: IP20 (device housing), IP40 (front panel)
• Accuracy Class: Class 1 (IEC 62053-21)
• Auxiliary Voltage Supply: 24V DC
• Operating Temperature: -25°C to +55°C
• Dimensions (W x H x D): Approx. 90 x 90 x 65 mm
• Weight: Approx. 300 g
• Certifications: CE, UL, RoHS compliant

Applications

• Industrial Energy Management Systems: Precisely monitor and manage energy consumption across factories and production facilities.
• Commercial Building Load Monitoring: Gain detailed insights into electrical loads within commercial complexes for optimized resource allocation.
• Electrical Panel Diagnostics: Quickly identify and troubleshoot issues within electrical panels, minimizing downtime and maintenance costs.
• Integration with SCADA/BMS Systems: Facilitates seamless data flow for comprehensive facility management and control.
• Compliance and Energy Efficiency Tracking: Supports adherence to energy regulations and drives initiatives for improved energy efficiency.
• Sub-metering Applications: Accurately measure energy usage in specific departments or areas for cost allocation and performance tracking.

Why Choose This Model?

• Unmatched Precision: Achieve highly accurate measurement of all crucial electrical parameters, ensuring reliable data for critical decisions.
• Effortless Integration: The standard Modbus RTU protocol and RS-485 interface guarantee straightforward integration into existing or new control systems.
• Space-Saving Design: Its compact DIN rail mounting design allows for efficient use of space in crowded electrical enclosures.
• User-Friendly Interface: The clear, backlit LCD display provides instant, local access to data, reducing the need for external devices.
• Built for Durability: With robust construction and appropriate IP ratings, this device is engineered to withstand demanding industrial environments.
• Trusted Siemens Quality: Benefit from the renowned reliability and innovation synonymous with the Siemens brand, ensuring long-term performance and peace of mind.

Order Now

Elevate your energy monitoring capabilities with the Siemens 7KM2200-2EA30-1EA1 SENTRON PAC2200 Power Monitoring Device. This essential tool for modern energy management is available and ready for global shipping. Invest in Siemens quality and gain unparalleled control over your electrical systems today.
