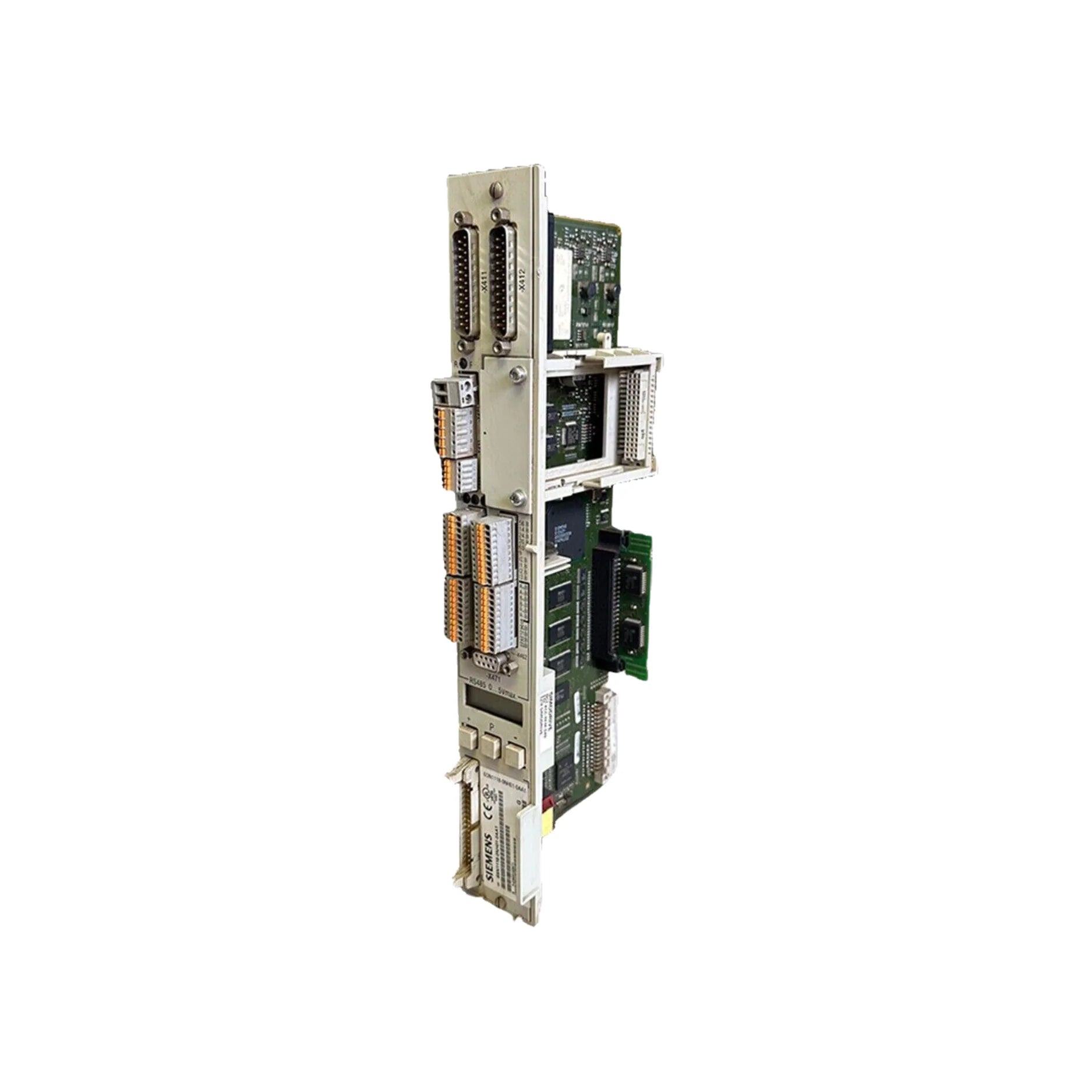

Siemens 6SN1118-0NH01-0AA1

Overview

The Siemens 6SN1118-0NH01-0AA1 is a robust and highly precise SIMODRIVE 611 Universal HR 2-axis control loop module, meticulously engineered for the most demanding motor control applications within industrial automation systems. This sophisticated module provides unparalleled closed-loop control for two independent axes, making it an indispensable component for intricate motion control scenarios. Its design incorporates advanced compatibility with both incremental encoders utilizing SIN/COS 1 VPP signals and absolute value encoders via the EnDat interface, ensuring remarkably accurate position feedback. Furthermore, the 6SN1118-0NH01-0AA1 offers the flexibility to expand speed and torque setpoint functionalities through optional extensions, solidifying its role as a versatile and high-performance solution for diverse industrial needs. This module, though discontinued, remains a testament to Siemens' commitment to precision and reliability in automation technology, continuing to serve as a critical element in systems requiring exact positioning and speed regulation.

Key Features

• Advanced Dual-Axis Control: Precisely manages closed-loop control for two fully independent axes, significantly enhancing system efficiency and operational accuracy in complex machinery.
• Broad Encoder Compatibility: Offers extensive support for both incremental encoders with SIN/COS 1 VPP signals and absolute value encoders utilizing the EnDat interface, guaranteeing superior precision in position and speed feedback.
• Flexible Functionality Expansion: Provides convenient options for extending speed and torque setpoint capabilities, allowing for tailored performance to meet specific application requirements and greater system adaptability.
• Unrivaled High Precision: Delivers exceptionally accurate motor control, which is critically important for applications demanding exact positioning, consistent speed regulation, and repeatable movements.
• Durable Industrial Design: Constructed with a robust build quality to withstand harsh industrial environments, ensuring prolonged operational reliability and a long service life under challenging conditions.
• Seamless Integration: Designed for effortless integration within existing SIMODRIVE 611 systems, minimizing setup time and maximizing compatibility with established industrial infrastructures.

Technical Specifications

• Product Type: SIMODRIVE 611 Universal HR Control Loop Module
• Part Number: 6SN1118-0NH01-0AA1
• Number of Axes: 2
• Encoder Inputs: Incremental (SIN/COS 1 VPP), Absolute (EnDat)
• Control Modes: Speed and Torque, expandable via options
• Dimensions: Standard module size, compatible with SIMODRIVE 611 systems
• Operating Temperature: Engineered for typical industrial temperature ranges
• Compliance: Adheres to rigorous industrial automation standards

Applications

• CNC Machining Centers: Provides the critical precise control necessary for multi-axis machining tools, ensuring high accuracy and quality in manufacturing processes.
• Robotics: Enables highly accurate movement and precise positioning in robotic arms and manipulators, vital for assembly, welding, and material handling tasks.
• Material Handling Systems: Facilitates exact control of conveyors, automated storage and retrieval systems, and sorting machinery, optimizing logistics and warehouse operations.
• Textile Machinery: Manages complex and synchronized movements in weaving, knitting, and other textile production machines, ensuring product consistency and efficiency.
• Packaging Equipment: Coordinates multi-axis operations in automated packaging lines, improving speed, precision, and reliability in packaging processes.
• Automated Assembly Lines: Supports precise and repeatable motions required in automated assembly tasks across various industries, from electronics to automotive.

Why Choose This Model?

• Proven Siemens Reliability: Benefit from the enduring quality and engineering excellence associated with the Siemens brand, a leader in industrial automation.
• Exceptional Precision: Achieve unparalleled accuracy in motor control, which is essential for applications where even minor deviations can impact performance and product quality.
• Versatile Compatibility: Its broad encoder support and expandable functionality ensure it can be adapted to a wide range of industrial control systems and applications.
• Optimized for Performance: Designed to enhance the efficiency and responsiveness of your automation systems, contributing to improved operational output and reduced downtime.
• Robust Industrial Durability: Engineered for longevity in demanding industrial environments, ensuring a reliable component in your critical infrastructure despite its discontinued status.

Order Now

While the Siemens 6SN1118-0NH01-0AA1 has been discontinued since April 1, 2015, its robust performance and precision capabilities continue to make it a sought-after component in maintaining existing industrial systems. For availability, support, and potential alternative solutions that meet your current automation needs, we highly recommend contacting your local Siemens representative or an authorized distributor. They can provide expert guidance and help you navigate the best options for your specific application requirements, ensuring your operations continue to run smoothly and efficiently.
