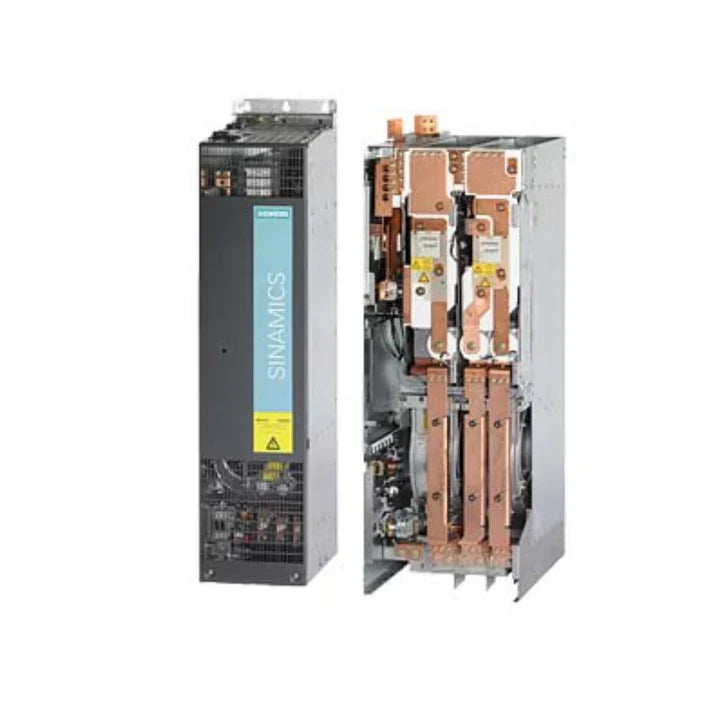

Siemens 6SL3330-6TE41-3AA3

Overview

The Siemens 6SL3330-6TE41-3AA3 is a high-performance SINAMICS S120 Smart Line Module, meticulously engineered to serve as a robust front-end converter within demanding medium to high-power drive systems. This advanced unit efficiently transforms a 3-phase AC input voltage range of 380–480 V into a stable DC link output of 510–650 V, providing the critical power conversion necessary for optimal system operation. Designed for continuous reliability, it boasts an impressive continuous current rating of 1300 A and a substantial nominal power of 630 kW, making it an ideal choice for intensive industrial applications. Its chassis/open-frame design with internal air cooling and an IP00 protection class ensures dependable performance within controlled environments. Furthermore, the integrated DRIVE-CLiQ interface facilitates seamless communication and integration into the modular SINAMICS S120 drive ecosystem, streamlining control and feedback mechanisms for enhanced system efficiency.

Key Features

• High Power Output: Delivers an impressive 630 kW of power, suitable for demanding industrial applications.
• Wide Input Voltage Range: Accepts versatile 3-phase AC input from 380–480 V for broad compatibility.
• Robust DC Link Conversion: Provides a stable DC link output of 510–650 V for consistent performance.
• Exceptional Current Capacity: Rated for a continuous current of 1300 A, handling significant loads with ease.
• Integrated DRIVE-CLiQ Interface: Enables seamless communication and integration within the SINAMICS S120 architecture.
• Efficient Cooling Design: Features internal air cooling for optimal thermal management and extended operational life.
• Compact Chassis Design: Housed in a chassis/open-frame build with an IP00 rating, ideal for integration into existing enclosures.

Technical Specifications

• Part Number: 6SL3330-6TE41-3AA3
• Product Line: SINAMICS S120 Smart Line Module
• Input Voltage Range: 380–480 V AC (3 phase)
• DC Link Output Voltage: 510–650 V
• Continuous Current: 1300 A
• Rated Power: 630 kW
• Cooling Method: Internal air cooling
• Enclosure / Mounting: Chassis / open frame, IP00
• Communication: DRIVE-CLiQ interface support

Applications

• Large Industrial Motor Drives: Perfect for powering high-capacity compressors, pumps, and ventilation systems.
• High-Power CNC Machinery: Essential for precision control in advanced manufacturing and machining operations.
• Process Automation Setups: Provides reliable power conversion for complex automated industrial processes.
• Modular S120 Systems: Seamlessly integrates into SINAMICS S120 architectures requiring high-power intermediate conversion.
• Retrofit and New Installations: An ideal front-end module for upgrading or implementing new 630 kW drive systems.

Why Choose This Model?

• Unmatched Power Delivery: Provides a massive 630 kW from a surprisingly compact Smart Line module, maximizing space efficiency.
• Superior Integration: Designed for seamless integration with the SINAMICS S120 modular drive architecture, simplifying system setup and operation.
• Exceptional Reliability: Features efficient internal air cooling and a robust chassis design, ensuring long-term operational stability even in demanding environments.
• Optimized Performance: Offers balanced capacity for the most challenging industrial and automation systems, guaranteeing peak performance.
• Global Availability & Support: Siemens' renowned global presence ensures readily available delivery and comprehensive technical support.
• Future-Proof Technology: Leverage Siemens' cutting-edge SINAMICS S120 technology for modern, adaptable drive solutions.

Order Now

Elevate your industrial operations with the Siemens 6SL3330-6TE41-3AA3 SINAMICS S120 Smart Line Module. This powerful and reliable front-end module is available and ready for worldwide shipment. Contact us today to secure this essential component for your high-performance drive systems and experience the Siemens advantage in efficiency and innovation.
