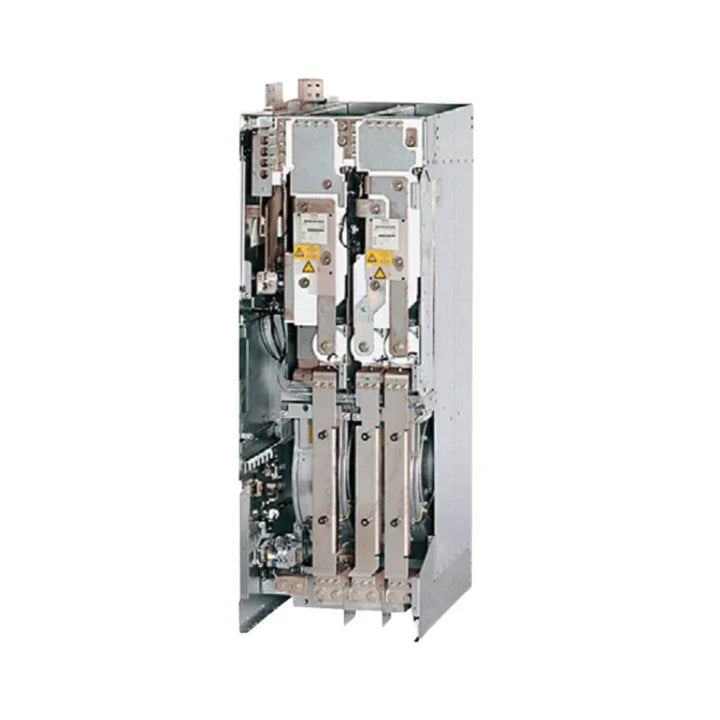

Siemens 6SL3330-1TG41-8AA3

Overview

The Siemens 6SL3330-1TG41-8AA3 stands as a robust and essential component within the renowned SINAMICS S120 drive system, specifically designed for high-power industrial applications. This Basic Line front-end/converter module is engineered to deliver exceptional performance and reliability, making it an ideal choice for demanding operational environments. It efficiently converts 3-phase AC input ranging from 500–690 V to a stable DC link output of 675–930 V, crucial for powering large-scale motor drives and complex automation systems. With an impressive rated power of 1500 kW and a continuous current capacity of 1880 A, this module is built to meet the most rigorous industrial requirements, ensuring seamless operation and optimal energy conversion.

Presented in a durable chassis/open-frame design, the 6SL3330-1TG41-8AA3 incorporates internal air cooling, a foundational element for maintaining optimal operating temperatures and extending the lifespan of the unit. Its IP00 protection rating signifies a design focused on internal component protection within controlled environments. Furthermore, the integration of a DRIVE-CLiQ interface facilitates effortless communication and synchronization within existing SINAMICS S120 infrastructures, ensuring a cohesive and responsive drive system. This module is a cornerstone for creating high-performance, energy-efficient, and reliable industrial drive solutions.

Key Features

• High-Capacity AC Input: Accepts a wide 3-phase input voltage range of 500–690 V AC (50/60 Hz), providing versatility for various power grids.
• Powerful DC Link Output: Delivers a consistent and robust DC link output spanning 675–930 V, essential for large motor drives.
• Exceptional Current and Power Ratings: Boasts a continuous current rating of 1880 A and a formidable rated power of 1500 kW, ideal for heavy industrial loads.
• Industrial Chassis Design: Features a rugged chassis/open-frame construction built for durability and easy integration into industrial cabinets.
• Efficient Internal Cooling: Equipped with an internal air-cooled system to ensure reliable operation and thermal stability under strenuous conditions.
• DRIVE-CLiQ Integration: Includes a DRIVE-CLiQ interface for seamless, high-speed communication and precise control within SINAMICS S120 drive systems.
• IP00 Protection: Designed with IP00 protection, offering fundamental safeguarding for internal components in appropriate industrial settings.

Technical Specifications

• Part Number: 6SL3330-1TG41-8AA3
• Product Type: SINAMICS S120 Basic Line Module (Front End/Converter)
• Input Voltage: 500–690 V AC, 3-phase, 50/60 Hz
• DC Link Output: 675–930 V
• Continuous Current: 1880 A
• Rated Power: 1500 kW
• Cooling Method: Internal air-cooled design
• Enclosure Type: Chassis / open-frame, IP00
• Communication Interface: DRIVE-CLiQ
• Brand: Siemens
• Series: SINAMICS S120

Applications

• Heavy Industrial Motor Drives: Perfectly suited for high-power applications such as large compressors, industrial pumps, and ventilation fans.
• Large-Scale Automation and Process Systems: Essential for powering complex machinery in factories, manufacturing plants, and process industries.
• Front-End Conversion Modules: Acts as a critical front-end converter in multi-axis drive systems and intricate power conversion setups.
• Modular SINAMICS S120 Systems: Integrates seamlessly into existing or new SINAMICS S120 configurations requiring a high-power DC link.
• Material Handling Equipment: Powers large cranes, conveyors, and other heavy-duty material handling machinery.
• Mining and Metallurgy: Provides reliable power conversion for demanding machinery in mining operations and metal processing.

Why Choose This Model?

• Unmatched Power Delivery: Provides an exceptional 1500 kW of rated power and 1880 A, catering to the most demanding industrial loads.
• Industrial-Grade Reliability: Engineered by Siemens, a leader in industrial automation, ensuring long-term performance and robust operation in harsh environments.
• Optimized Thermal Management: Features efficient internal air cooling, crucial for sustained high-power operation and extending component life.
• Seamless System Integration: Designed for full compatibility and effortless integration with the SINAMICS S120 drive system via the DRIVE-CLiQ interface.
• Versatile Application Scope: Its high power and robust design make it suitable for a broad spectrum of heavy industrial applications, enhancing operational flexibility.
• Global Availability & Support: As a Siemens product, it benefits from worldwide availability, extensive technical support, and a comprehensive spare parts network.

Order Now

Elevate the power and performance of your industrial operations with the Siemens 6SL3330-1TG41-8AA3 SINAMICS S120 Basic Line Module. This high-capacity front-end converter is engineered for superior efficiency, unwavering reliability, and seamless integration into your existing or new SINAMICS S120 drive systems. With its robust design, impressive power ratings, and advanced communication capabilities, it represents a pivotal component for optimizing heavy industrial motor drives and complex automation processes. Available for immediate dispatch, we ensure secure and prompt worldwide delivery to keep your projects moving forward. Secure this essential Siemens module today and experience the pinnacle of industrial power conversion technology.
