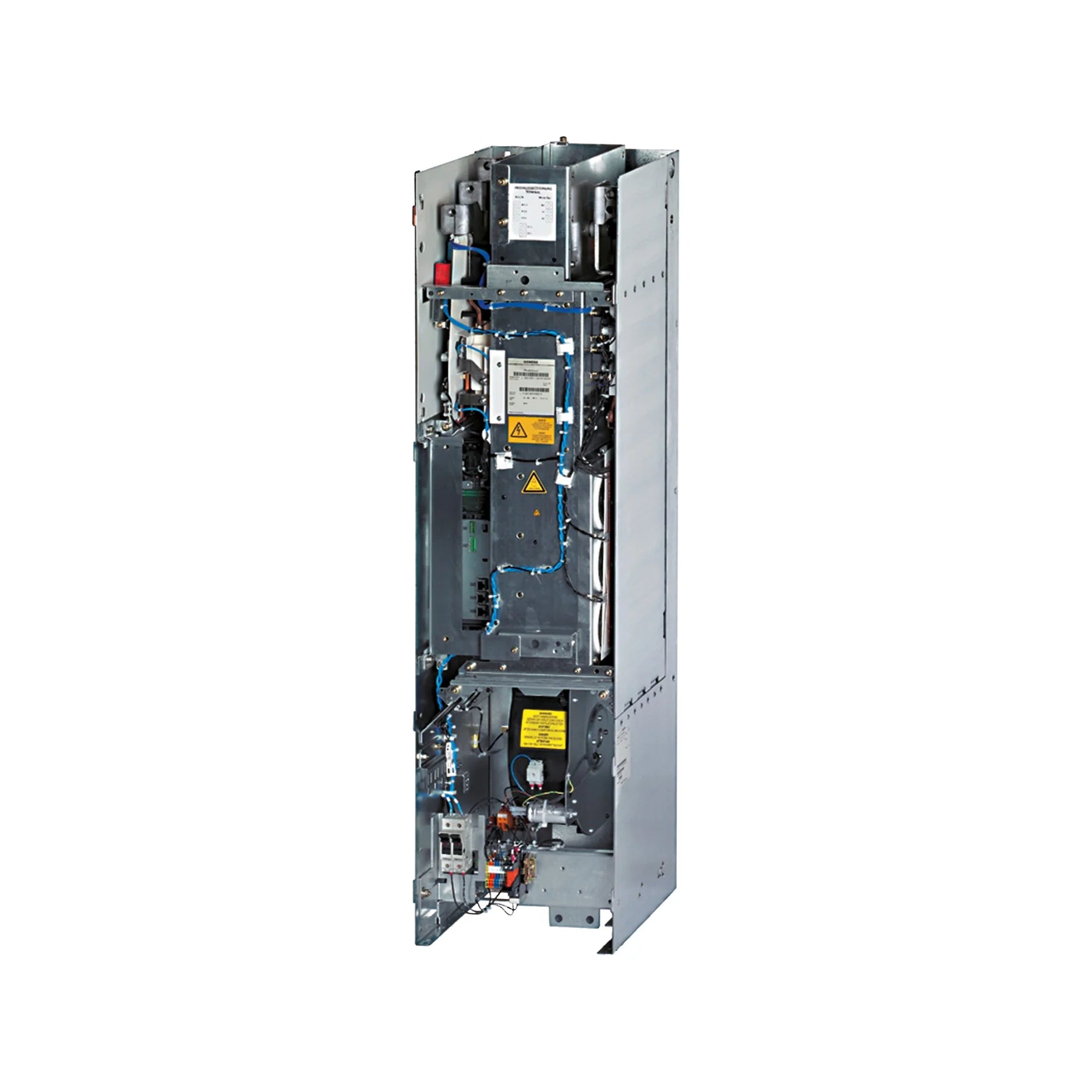

Siemens 6SL3330-1TE41-5AA3

Overview

Unlock unparalleled power and precision for your industrial drive systems with the Siemens 6SL3330-1TE41-5AA3 SINAMICS S120 Basic Line module. Engineered as a high-performance power front end (converter/rectifier), this essential component seamlessly integrates into complex, high-power applications. It efficiently transforms a 3-phase 380–480 V AC input into a stable DC link output, ranging from 510 to 650 V. With an impressive continuous current rating of 1500 A and a staggering power output of 710 kW, the 6SL3330-1TE41-5AA3 is built to support the most demanding industrial machinery, ensuring reliable and consistent operation.

Designed in a robust chassis/open-frame format with integrated internal air cooling, this module exemplifies Siemens' commitment to durability and efficient thermal management. Its modular construction ensures seamless compatibility and straightforward integration within new or existing SINAMICS S120 drive architectures, making it an ideal choice for businesses seeking scalable and high-performance solutions. This unit is not just a component; it's a cornerstone for advanced industrial automation, guaranteeing optimal performance in even the harshest environments.

Key Features

• High-Capacity Power Front End: Functions as a modular Basic Line front end, delivering exceptional power conversion for heavy-duty applications.
• Wide Input Voltage Range: Accepts a versatile 3-phase 380–480 V AC input, accommodating various industrial power grids.
• Stable DC Link Output: Provides a consistent DC link output of 510–650 V, crucial for precise motor control.
• Exceptional Current Handling: Boasts a continuous current rating of 1500 A, capable of driving powerful industrial motors.
• Massive Power Output: Delivers a substantial 710 kW power rating, suitable for energy-intensive operations.
• Integrated Cooling Solution: Features internal air cooling within a chassis/open-frame design (IP00), enhancing longevity and reliability.
• SINAMICS S120 Compatibility: Fully compatible with the modular SINAMICS S120 drive system architecture, allowing for flexible system expansion.

Technical Specifications

Part Number: 6SL3330-1TE41-5AA3

Product Series: SINAMICS S120 Basic Line

Input Voltage: 380–480 V AC (3-phase)

Output (DC Link): 510–650 V

Continuous Input Current: 1500 A

Power Output Rating: 710 kW

Cooling Method: Internal air cooling

Frame / Format: Chassis / open-frame, IP00 design

Applications

• Heavy Industrial Motors: Ideal for controlling large-scale industrial motors found in pumps, compressors, and high-capacity fans, ensuring efficient operation.
• Advanced Manufacturing: Powers high-precision CNC mills, robust rolling mills, and complex processing machinery, enhancing productivity and accuracy.
• Robust Drive Systems: Serves as a critical converter and DC link module in drive systems requiring high reliability and significant power delivery.
• Automation and Production Environments: Integrates seamlessly into modular SINAMICS S120 systems within sophisticated automation and production lines.
• Energy-Intensive Operations: Supports applications demanding substantial power, contributing to optimized energy management and operational efficiency.
• Process Control Systems: Essential for continuous and precise control in various process industries, ensuring consistent output and reduced downtime.

Why Choose This Model?

• Exceptional Power Density: Achieve a high 710 kW capacity within a remarkably compact and efficient module, optimizing space and performance.
• Reliable Current Handling: Designed to meet and exceed high current demands with a robust 1500 A continuous rating, guaranteeing stable operation under load.
• Seamless Modular Integration: Engineered for perfect compatibility and easy integration within existing or new SINAMICS S120 drive systems, simplifying upgrades and expansions.
• Optimized Thermal Management: Features internal air cooling and an open-frame format (IP00) for superior thermal management, extending the module's lifespan and reliability.
• Siemens Quality Assurance: Benefit from the renowned quality, reliability, and engineering excellence synonymous with the Siemens brand, ensuring long-term performance.
• Global Availability: Ready for international delivery, making high-performance industrial power solutions accessible worldwide.

Order Now

Elevate your industrial operations with the Siemens 6SL3330-1TE41-5AA3 SINAMICS S120 Basic Line module. This powerful and reliable front-end module is available and ready for international delivery. Contact us today to secure this essential component for your high-power drive systems and experience the pinnacle of industrial efficiency and control.
