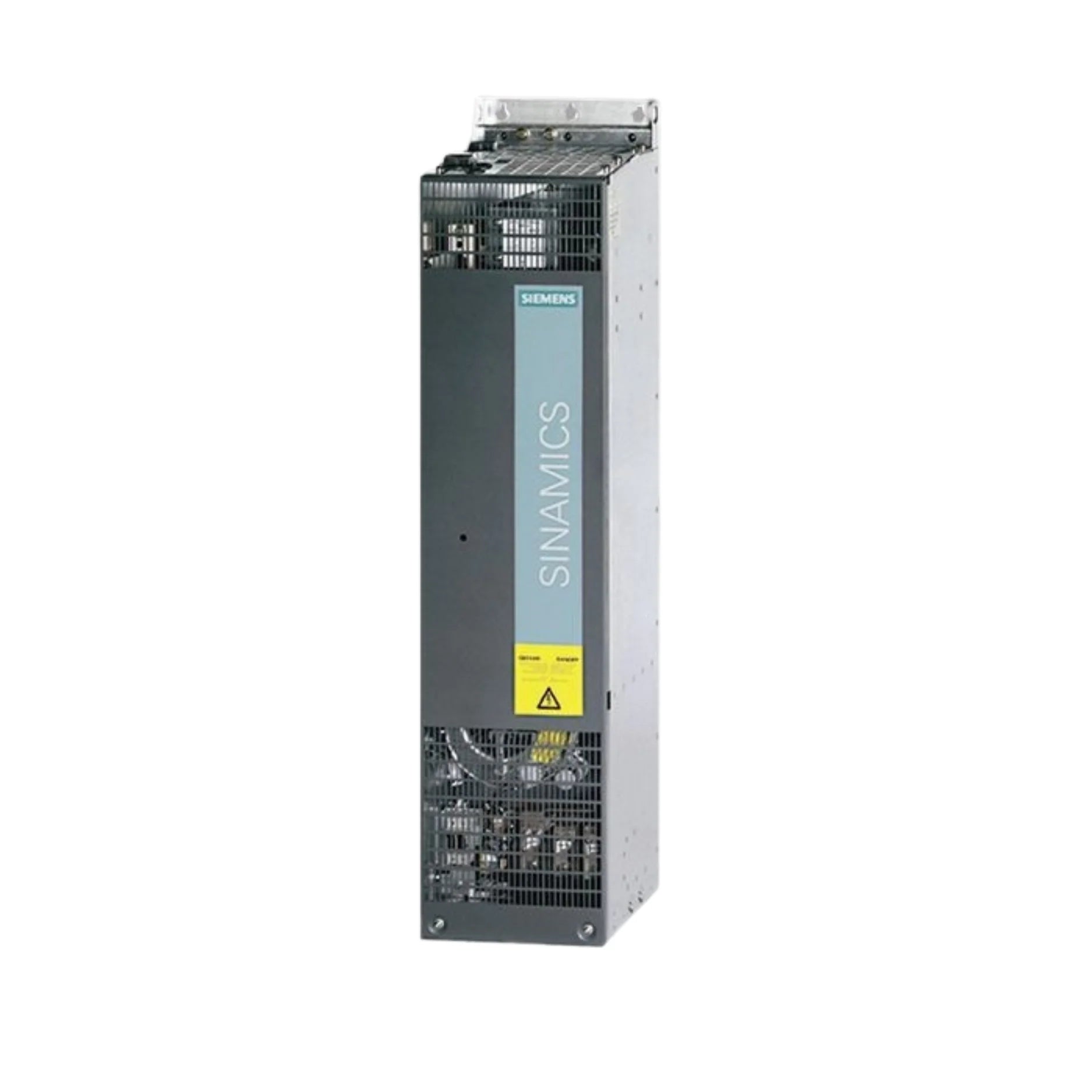

Siemens 6SL3320-1TG41-3AA3 SINAMICS S120 active line module, 1300 A, for regenerative high-power drive systems.

Siemens 6SL3320-1TG41-3AA3

$81,293.00
$81,293.00
Skip to product information
Siemens 6SL3320-1TG41-3AA3 SINAMICS S120 active line module, 1300 A, for regenerative high-power drive systems.
  • Siemens 6SL3320-1TG41-3AA3 SINAMICS S120 active line module, 1300 A, for regenerative high-power drive systems.
  • Siemens 6SL3320-1TG41-3AA3 SINAMICS S120 active line module, 1300 A, for regenerative high-power drive systems.
Siemens 6SL3320-1TG41-3AA3

Siemens 6SL3320-1TG41-3AA3

$81,293.00
$81,293.00

Overview

The Siemens 6SL3320-1TG41-3AA3 SINAMICS S120 Active Line Module is a cutting-edge solution designed for advanced industrial automation and drive applications. Engineered for exceptional energy efficiency and robust performance, this module plays a crucial role in systems requiring high power regeneration and precise control. As a core component of the acclaimed SINAMICS S120 series, it reliably converts three-phase AC input into a stable DC link voltage, essential for powering multi-axis drive configurations and heavy-duty machinery. Its regenerative capabilities allow for the recovery of braking energy, feeding it back into the grid, which significantly reduces operational costs and environmental impact. With a formidable rated current of 1300 A at 3AC 380–480 V, the 6SL3320-1TG41-3AA3 stands as a testament to Siemens' commitment to innovation and sustainable industrial solutions. This module is an indispensable asset for businesses aiming to optimize their energy consumption, enhance system stability, and achieve unparalleled control in demanding environments.

Key Features

  • High-Capacity Regenerative Braking: Efficiently returns excess energy back to the power grid, leading to substantial energy savings and reduced operating expenses.
  • Robust Power Handling: Rated at 1300 A with a supply voltage of 3AC 380–480 V ±10%, ensuring stable and reliable operation for high-power applications.
  • Stable DC Link Voltage: Provides a constant and reliable DC link supply, crucial for the synchronized and efficient operation of multi-drive systems within the SINAMICS S120 platform.
  • Advanced Cooling System: Features liquid cooling for optimal temperature management, guaranteeing sustained performance and extended lifespan even under strenuous conditions.
  • Integrated Protection and Monitoring: Built-in safeguards and diagnostic functions ensure system integrity, operational safety, and simplify maintenance.
  • Seamless SINAMICS S120 Integration: Designed for perfect compatibility within the SINAMICS S120 series, facilitating easy setup and maximizing system synergy.
  • Enhanced System Efficiency: Minimizes energy losses through superior design and technology, contributing to a more sustainable and cost-effective industrial operation.

Technical Specifications

  • Siemens Code: 6SL3320-1TG41-3AA3
  • Series: SINAMICS S120 Active Line Module
  • Rated Output Current: 1300 A
  • Supply Voltage: 3AC 380–480 V ±10%
  • Frequency: 47–63 Hz
  • Cooling: Liquid cooling
  • Protection Rating: IP20
  • Design: Chassis module
  • Operating Temperature: –10 °C to +40 °C (without derating)
  • Certifications: CE, UL, cUL

Applications

  • Large-Scale Automation Systems: Powers extensive and complex automated production lines and industrial processes.
  • Regenerative Industrial Applications: Ideal for machinery frequently experiencing braking cycles, such as centrifuges, test stands, and certain material handling systems.
  • Multi-Axis Drive Configurations: Supports synchronized control of multiple motors in applications like printing machines, winders, and gantry systems.
  • Heavy-Duty Machinery with Braking Cycles: Ensures efficient energy management in cranes, elevators, and press machines.
  • Energy-Optimized Manufacturing: Contributes to green manufacturing initiatives by reducing overall energy consumption in factories.
  • Renewable Energy Systems: Can be integrated into systems where energy feedback to the grid is beneficial or required.

Why Choose This Model?

  • Unmatched Energy Savings: Its regenerative feedback capability directly translates into lower electricity bills and a healthier bottom line for your operations.
  • Exceptional System Reliability: Built with Siemens' renowned quality and engineering, ensuring long-term stability and minimal downtime in critical applications.
  • Superior Performance in Demanding Environments: Engineered for high-current applications and equipped with liquid cooling, it excels where other modules might falter.
  • Future-Proof Technology: Invest in a solution that aligns with modern industrial demands for energy efficiency and sustainable practices.
  • Comprehensive Support and Integration: Benefit from seamless integration within the expansive SINAMICS S120 ecosystem and access to Siemens' global technical support and expertise.
  • Compliance and Safety: Adheres to international standards such as CE, UL, and cUL, guaranteeing safety and regulatory compliance for global deployments.

Order Now

Elevate your industrial automation system to new levels of efficiency, performance, and sustainability with the Siemens 6SL3320-1TG41-3AA3 SINAMICS S120 Active Line Module. This powerful, regenerative, and highly reliable component is engineered to meet the stringent demands of modern manufacturing and heavy-duty applications. Don't compromise on power, precision, or energy efficiency. Maximize your operational output and minimize your environmental footprint today. Return to the Siemens Sinamics Drives collection to explore more options including V20, G120, G130, G150, and S120 series for advanced industrial motor control. You can also browse the Siemens Variable Frequency Drives (VFDs) main category to view the complete Siemens portfolio of Sinamics, Micromaster, and SIMOVERT VFDs.
