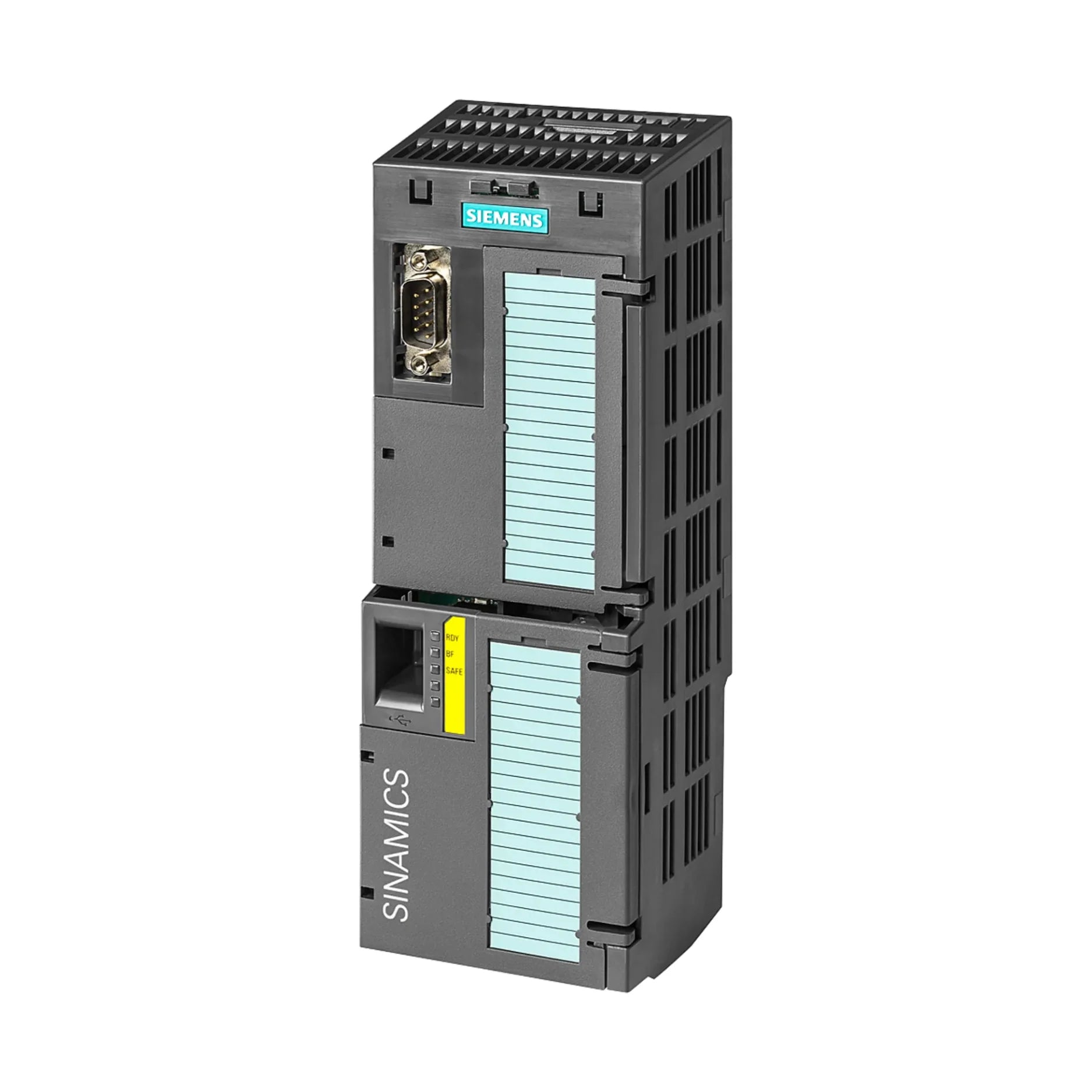

Siemens 6SL3246-0BA22-1PA0

Overview

The Siemens 6SL3246-0BA22-1PA0 is a state-of-the-art SINAMICS G120 CU240E-2 PN-F Control Unit meticulously engineered for sophisticated, safety-integrated drive applications. This robust control unit seamlessly integrates a high-performance PROFINET interface, enabling rapid and reliable communication within your industrial network. Its support for advanced fail-safe functions, including Safe Torque Off (STO) certified to SIL 2/PL d, makes it an indispensable component for systems demanding the highest levels of operational safety and precision motor control. Designed for the SINAMICS G120 modular drive system, the 6SL3246-0BA22-1PA0 provides unparalleled flexibility and ensures optimal performance across a wide spectrum of industrial machinery and processes.

Key Features

• Advanced Control: Central control unit for the modular Siemens SINAMICS G120 drive system, offering comprehensive motor management.
• Integrated PROFINET: Features a built-in PROFINET communication interface for seamless and high-speed integration into Ethernet-based industrial networks.
• Certified Safety Functions: Equipped with critical safety functions like Safe Torque Off (STO) and Safe Stop 1 (SS1), certified to SIL 2 and PL d standards for enhanced operational security.
• Versatile Motor Compatibility: Supports a broad range of motor types, including both asynchronous (induction) and synchronous motors, providing application flexibility.
• Comprehensive Diagnostics: Facilitates easy diagnostic and parameterization via Siemens STARTER commissioning software or the TIA Portal engineering framework.
• Modular & Scalable Design: Its modular construction allows for flexible system integration and scalability to adapt to evolving application requirements.
• Integrated I/O: Includes a combination of digital and analog I/Os, including fail-safe digital inputs, for direct connection and control.

Technical Specifications

• Siemens Code: 6SL3246-0BA22-1PA0
• Series: SINAMICS G120
• Control Unit Type: CU240E-2 PN-F
• Interface: PROFINET
• Safety Functions: STO (Safe Torque Off), SS1 (Safe Stop 1)
• Safety Certification: Certified per SIL 2 / PL d
• Digital Inputs: 6 (including fail-safe inputs)
• Digital Outputs: 2
• Analog Inputs: 2
• Cooling: Internal air cooling
• Power Supply: 24 V DC
• Protection Rating: IP20
• Operating Temperature: –10 °C to +50 °C
• Mounting Type: Cabinet / DIN rail
• Certifications: CE, UL, SIL 2, PL d

Applications

• Safety-Integrated Motor Control: Ideal for applications where robust and certified safety functions are paramount for motor operation.
• Industrial Automation Systems: Perfectly suited for modern industrial automation environments leveraging PROFINET for integrated networking.
• Packaging and Material Handling: Enhances the safety and efficiency of packaging machines, conveyor systems, and logistics applications.
• Printing and Converting Machinery: Provides precise and safe drive control for complex printing presses and converting equipment.
• OEM Machinery: An excellent choice for original equipment manufacturers requiring functional safety and reliable performance in their custom solutions.
• Food Processing Industry: Supports stringent safety requirements and precise control in food and beverage production lines.

Why Choose This Model?

• Unmatched Safety & Performance: Expertly combines flexible drive control capabilities with advanced, built-in safety functions for peace of mind.
• Seamless Integration: PROFINET interface ensures effortless and high-speed integration into your existing or new automation infrastructure.
• Globally Certified Reliability: Holds multiple certifications including CE, UL, SIL 2, and PL d, guaranteeing compliance and dependability in safety-critical operations.
• Siemens Quality & Support: Backed by Siemens' renowned engineering excellence, global support network, and decades of industrial expertise.
• Compact & Adaptable Design: Its modular and compact design facilitates scalable configurations, optimizing panel space and adapting to various installation needs.
• Future-Proofing Your Operations: Provides a robust foundation for modern industrial applications, ensuring longevity and adaptability in a rapidly evolving technological landscape.

Order Now

Elevate the safety, efficiency, and performance of your industrial drives with the Siemens 6SL3246-0BA22-1PA0. This reliable, PROFINET-enabled CU240E-2 PN-F Control Unit for SINAMICS G120 is the intelligent choice for demanding applications. Secure your advanced control solution today and experience the unparalleled quality of Siemens automation technology.
