Siemens 6SL3210-1PC24-2UL0

Overview

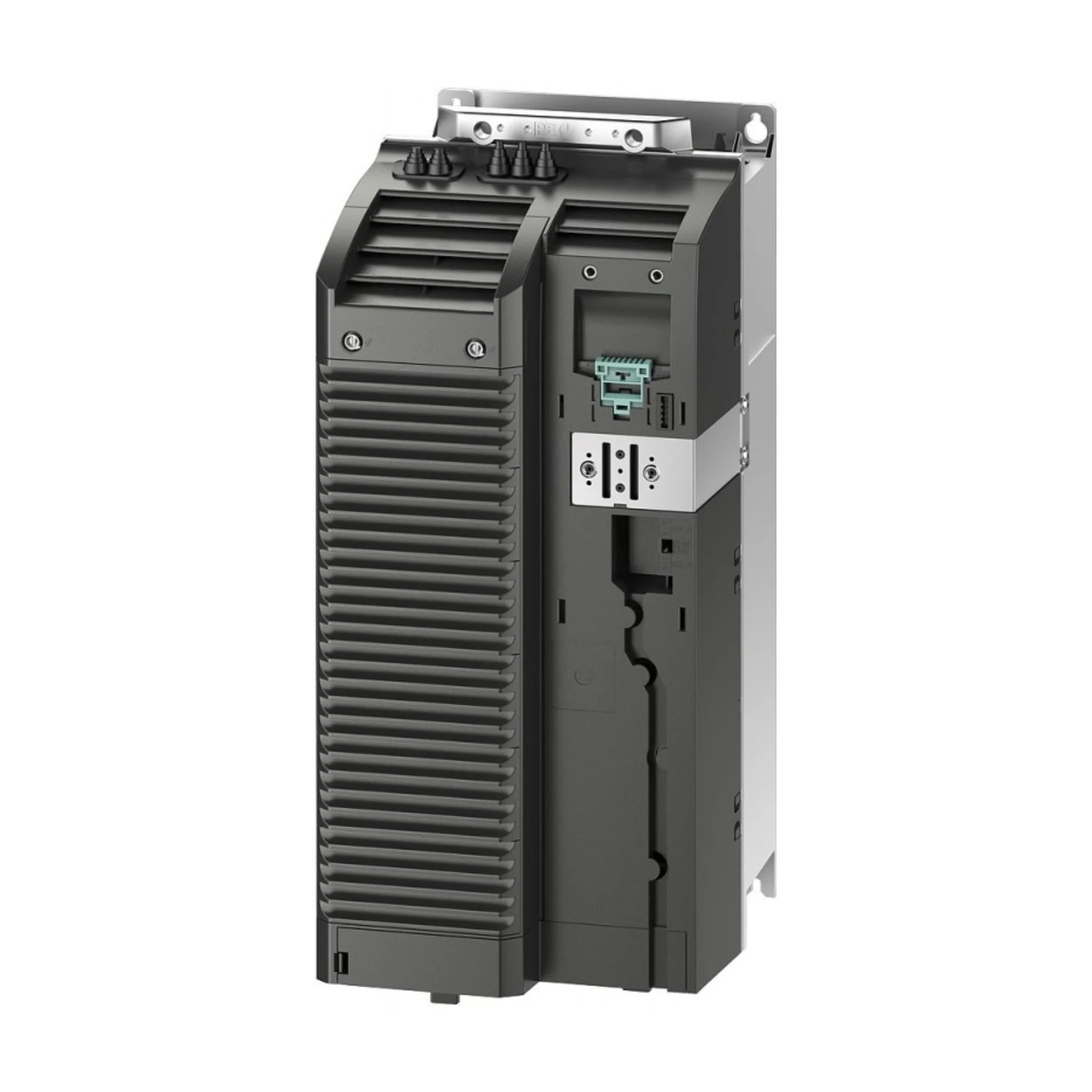

The Siemens 6SL3210-1PC24-2UL0 is an essential component for demanding industrial automation, delivering exceptional performance as part of the renowned SINAMICS S120 series. This PM240-2 power module is engineered to provide a robust 22 kW of output power, operating efficiently on a 3-phase 380–480 V AC supply. Its innovative Booksize format is designed for maximum space efficiency within control cabinets, making it an ideal choice for applications where compact integration is crucial. Further enhancing its capabilities, the module incorporates an integrated brake chopper, which is vital for precise and dynamic handling of motor loads, ensuring controlled deceleration and enhanced operational safety. This combination of power, precision, and compact design makes the 6SL3210-1PC24-2UL0 a cornerstone for reliable and high-performance industrial drive systems.

Key Features

• High-Efficiency 22 kW Output: Delivers substantial power for a wide range of industrial motor applications.
• Versatile 3-Phase Input: Compatible with 380–480 V AC power supplies, offering flexibility in diverse global setups.
• Integrated Brake Chopper: Ensures precise and controlled deceleration for dynamic load management and improved safety.
• Space-Saving Booksize Design: Optimized for installation in confined control cabinet spaces, promoting compact machine footprints.
• Energy-Efficient Operation: Designed to minimize energy consumption and reduce operational costs.
• Optimized for Dynamic Loads: Excellently suited for applications requiring rapid acceleration and deceleration cycles.
• Wide Motor Compatibility: Ideal for seamless integration with both synchronous and induction motor configurations.

Technical Specifications

• Siemens Code: 6SL3210-1PC24-2UL0
• Series: SINAMICS S120, PM240-2
• Rated Output Power: 22 kW
• Input Voltage: 3AC 380–480 V ±10%
• Estimated Output Current: ~44 A (nominal, actual value may vary with specific application and load conditions)
• Braking Chopper: Fully integrated for direct use
• Cooling: Efficient internal air cooling system
• Protection Rating: IP20 (protection against solid objects over 12.5mm, no water protection)
• Operating Temperature: 0 °C to +40 °C (full performance without derating within this range)
• Certifications: CE, UL, RoHS (ensuring compliance with international standards for safety and environmental regulations)

Applications

• Packaging and Conveyor Systems: Provides precise speed and torque control for efficient material handling.
• Textile and Printing Equipment: Ensures high-accuracy motor control crucial for intricate manufacturing processes.
• Industrial Pumps, Fans, and Compressors: Optimizes energy usage and extends equipment lifespan through efficient motor management.
• Multi-Axis Drive Systems: Serves as a vital component in complex, coordinated motion control applications.
• Space-Constrained Automation: Perfect for upgrading or designing systems where cabinet real estate is at a premium.
• Modern Machine Building: An ideal choice for new machinery designs demanding reliability and advanced control features.

Why Choose This Model?

• Unmatched Reliability: Benefit from Siemens' legendary engineering and manufacturing quality, ensuring long-term operational stability.
• Superior Space Efficiency: The Booksize design allows for higher component density in control cabinets, reducing overall machine footprint.
• Enhanced Motion Control: The integrated brake chopper offers significantly improved control over motor deceleration, critical for safety and process accuracy.
• Seamless System Integration: Designed for effortless integration into existing SINAMICS S120 multi-drive systems, simplifying upgrades and expansions.
• Optimized for Performance: Delivers consistent, high-level performance tailored for dynamic and demanding industrial environments.
• Industry-Standard Compliance: Fully certified (CE, UL, RoHS), ensuring global usability and adherence to strict regulatory requirements.

Order Now

Elevate the efficiency and reliability of your industrial automation processes with the Siemens 6SL3210-1PC24-2UL0 PM240-2 power module. Engineered for precision, compactness, and robust performance, this unit is an indispensable addition to any advanced drive system. Invest in Siemens quality to ensure seamless operation, reduced downtime, and optimized energy consumption. Upgrade your machinery today with confidence, knowing you're deploying a solution built for the future of industrial control.
