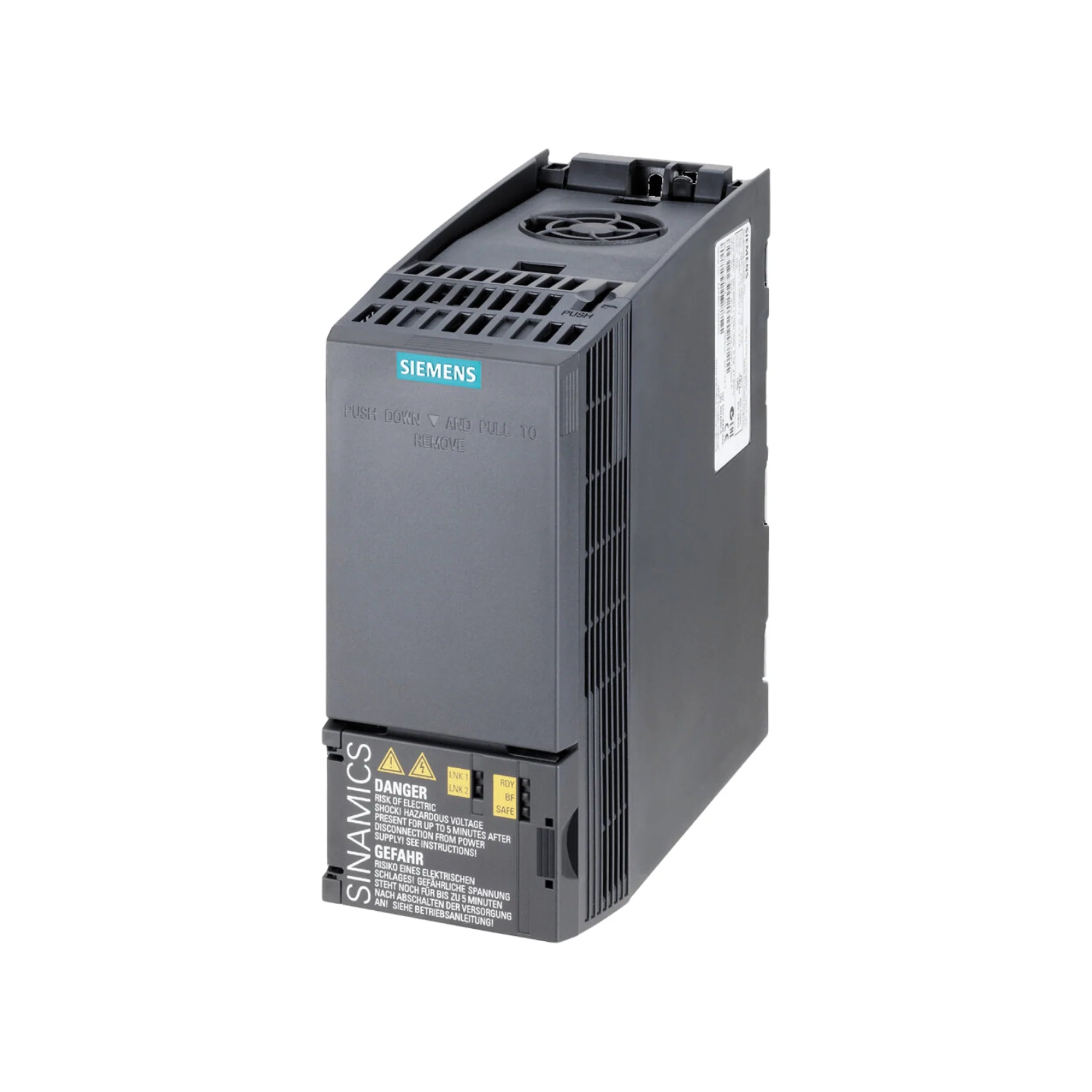

SIEMENS 6SL3210-1KE14-3UF2

Overview

The Siemens 6SL3210-1KE14-3UF2 is a crucial component within the advanced SINAMICS S120 drive system, specifically the PM240-2 Power Module. Engineered for exceptional performance in industrial automation and precision motion control, this power module delivers robust and efficient motor management. It accepts a versatile 380-480V AC input and provides a substantial 7.5 kW output power, making it ideal for demanding applications. A standout feature is its integrated dynamic braking and regenerative energy feedback capabilities, which not only significantly enhance operational efficiency but also contribute to considerable cost savings by returning excess energy to the grid. This module represents Siemens' commitment to innovative and sustainable industrial solutions, ensuring precise control and optimized energy usage.

Key Features

• High-Performance Motor Control: Experience unparalleled precision in motor speed and torque regulation for critical industrial processes.
• Integrated Regenerative Braking: Maximize energy efficiency and reduce operational costs with intelligent energy recovery.
• Robust Power Output: Delivers 7.5 kW (10 HP) of reliable power, suitable for a wide range of industrial machinery.
• Wide Input Voltage Compatibility: Operates seamlessly with 380-480V AC, 3-phase industrial power supplies.
• Compact & Modular Design: Facilitates easy and space-saving integration into existing control cabinets and systems.
• Advanced Safety & Protection: Equipped with comprehensive protection features including overvoltage, undervoltage, short-circuit, and thermal monitoring.
• Flexible Communication Protocols: Supports industry-standard communication via PROFIBUS, PROFINET, and EtherNet/IP (with compatible Control Units).

Technical Specifications

• Model: Siemens 6SL3210-1KE14-3UF2
• Series: SINAMICS S120 PM240-2 Power Module
• Input Voltage Range: 380-480V AC, 3-phase
• Output Power: 7.5 kW (10 HP)
• Output Current: 16 A
• Output Voltage: Variable frequency AC output
• Switching Frequency: 4 kHz - 12 kHz (adjustable)
• Braking System: Integrated dynamic braking and regenerative feedback (integrated braking chopper)
• Communication Interfaces: Pulse/Direction, Analog, Digital I/O (PROFIBUS, PROFINET, EtherNet/IP via additional modules)
• Cooling Method: Internal air cooling with fan-assisted cooling
• Dimensions (H x W x D): 250mm x 140mm x 205mm
• Weight: Approximately 7 kg
• Protection Class: IP20
• Certifications: CE, UL, cUL, IEC/EN 61800-5-1

Applications

• Industrial Automation Systems: Provides precise and reliable control for a variety of servo and induction motors in automated production lines.
• CNC Machining & Tooling: Ensures high-performance motion control for demanding cutting, milling, and general machining operations, enhancing accuracy and productivity.
• Conveyor and Material Handling Systems: Facilitates smooth and efficient motor control, optimizing material flow and throughput in logistics and manufacturing environments.
• Robotics & Automated Assembly: Crucial for intricate robotic motion control, enabling precise movements and positioning in complex assembly tasks.
• Printing & Packaging Machinery: Guarantees accurate and synchronized motor control for high-speed printing and packaging processes, reducing waste and improving output quality.
• Textile & Paper Production: Supports high-speed, continuous motor applications essential for efficient operations in the textile and paper industries.

Why Choose This Model?

• Unmatched Precision and Control: The SINAMICS S120 PM240-2 system, with this module at its core, offers superior motor control capabilities, critical for applications requiring exact movements and speed regulation.
• Significant Energy Savings: Its integrated regenerative braking system dramatically reduces energy consumption and operating costs by feeding excess energy back into the grid, aligning with modern efficiency standards.
• Seamless Integration and Flexibility: Designed for easy integration into diverse industrial setups, the module's compact form factor and support for multiple communication protocols ensure compatibility and scalability.
• Enhanced System Reliability and Safety: Comprehensive built-in protection mechanisms safeguard your equipment against electrical faults and thermal issues, ensuring long-term reliability and personnel safety.
• Optimized Performance for Demanding Environments: Built to withstand rigorous industrial conditions, this module delivers consistent, high-performance output, minimizing downtime and maximizing productivity.
• Backed by Siemens' Expertise: Benefit from the renowned quality, innovation, and support associated with Siemens, a global leader in industrial automation technology.
