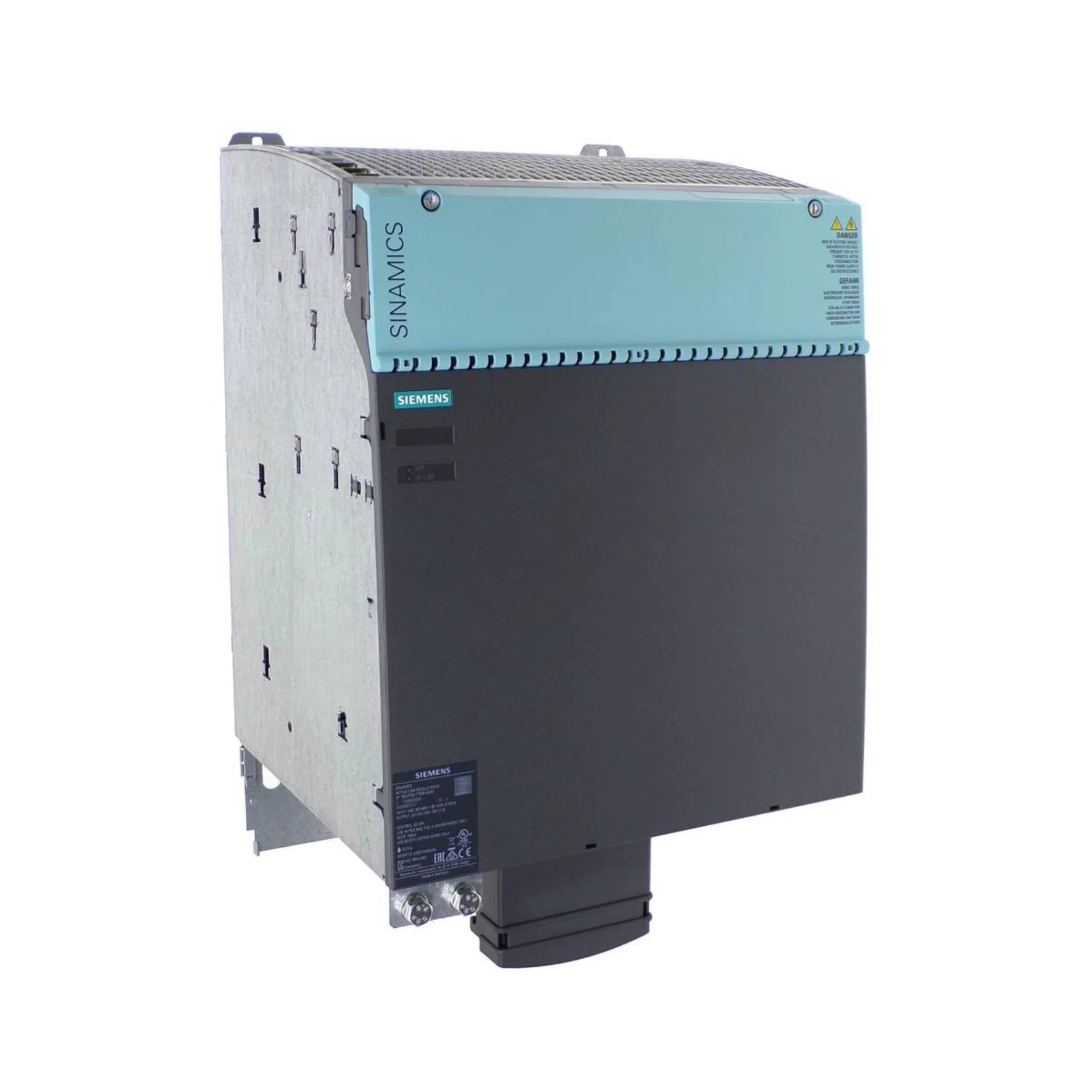

Siemens 6SL3130-7TE28-0AA3

Overview

Elevate your industrial automation and motion control systems with the Siemens 6SL3130-7TE28-0AA3 SINAMICS S120 Active Line Module. Engineered for precision and reliability, this robust module efficiently converts a three-phase AC input (380-480V) into a stable 600V DC output, providing the critical power foundation for demanding drive applications. With an impressive 80 kW power rating and 133A current capacity, it's designed to meet the high-performance requirements of modern machinery. Its compact, booksize design ensures seamless integration into space-constrained control cabinets, while internal air cooling guarantees optimal thermal management and prolonged operational life. The included DRIVE-CLiQ cable facilitates quick and error-free connection within the comprehensive SINAMICS S120 drive system, making installation and configuration straightforward.

The 6SL3130-7TE28-0AA3 is a cornerstone component for systems requiring dynamic response and precise control, ensuring consistent performance even under rigorous operating conditions. As part of the renowned Siemens SINAMICS S120 series, it embodies the brand's commitment to innovation, quality, and industrial efficiency. This active line module is not just a power converter; it's an intelligent solution that enhances the overall stability and energy efficiency of your industrial processes.

Key Features

• High Power Output: Delivers 80 kW of power with a 133A output current for demanding industrial applications.
• Stable DC Voltage: Converts 3-phase AC 380-480V input to a reliable 600V DC output.
• Compact Booksize Design: Optimizes cabinet space with its efficient form factor (275mm x 445mm x 195mm).
• Integrated Air Cooling: Internal air cooling system ensures efficient heat dissipation and extended module lifespan.
• Seamless Connectivity: Includes DRIVE-CLiQ cable for swift and straightforward integration into SINAMICS S120 systems.
• Robust Construction: Engineered by Siemens for durability and consistent performance in harsh industrial environments.
• Energy Efficiency: Active Line Module technology contributes to improved energy utilization in drive systems.

Technical Specifications

• Product Type: Active Line Module
• Part Number: 6SL3130-7TE28-0AA3
• Series: SINAMICS S120
• Input Voltage Range: 3AC 380-480V ±10%
• Input Frequency: 50/60 Hz ±5%
• Output Voltage: 600V DC
• Output Current: 133A
• Power Rating: 80 kW
• Cooling Method: Internal air cooling
• Dimensions (W x H x D): 275 mm x 445 mm x 195 mm
• Weight: Approximately 23 kg
• Mounting: Booksize format for compact installation
• Compliance: CE, UL, cUL

Applications

• Industrial Automation Systems: Provides stable and reliable DC power for a wide range of automated processes, ensuring smooth operation and enhanced control.
• High-Precision Machine Tools: Ideal for driving the critical components of machine tools, where precise motor control and dynamic response are paramount for accuracy and surface finish.
• Advanced Material Handling Equipment: Enhances the performance and efficiency of conveyors, robotic arms, and other material handling systems by delivering consistent power for optimized movement.
• Process Industries: Perfectly suited for applications within chemical plants, food processing, and other continuous production environments that demand stringent control over motor speed and torque.
• Packaging Machinery: Improves the speed and accuracy of packaging lines, contributing to higher throughput and reduced downtime.
• Textile Machinery: Ensures precise control of motors in textile manufacturing, leading to improved product quality and operational efficiency.

Why Choose This Model?

• Unmatched Reliability: As a Siemens product, the 6SL3130-7TE28-0AA3 is built to the highest industrial standards, guaranteeing long-term, dependable performance.
• Optimized Energy Efficiency: Its active line module technology helps to minimize energy consumption, reducing operational costs and supporting sustainable practices.
• Space-Saving Design: The booksize format allows for compact installation, freeing up valuable cabinet space and simplifying system integration.
• Simplified Integration: Designed for seamless compatibility within the SINAMICS S120 ecosystem, ensuring hassle-free setup and operation with other Siemens components.
• Superior Performance: Delivering 80 kW of power with precise voltage and current control, this module is engineered to handle the most demanding industrial drive applications with ease.
• Comprehensive Support: Backed by Siemens' global network of support and service, ensuring peace of mind throughout the product's lifecycle.

Order Now

Upgrade your industrial drive systems with the Siemens 6SL3130-7TE28-0AA3 SINAMICS S120 Active Line Module and experience the pinnacle of power conversion technology. Enhance your operational efficiency, ensure precise control, and mitigate energy costs with this high-performance solution. Visit our Siemens Sinamics Drives collection to explore further options, or browse the complete Siemens Variable Frequency Drives (VFDs) portfolio to discover solutions tailored to your every need. Invest in Siemens quality today for a future of optimized industrial performance.
