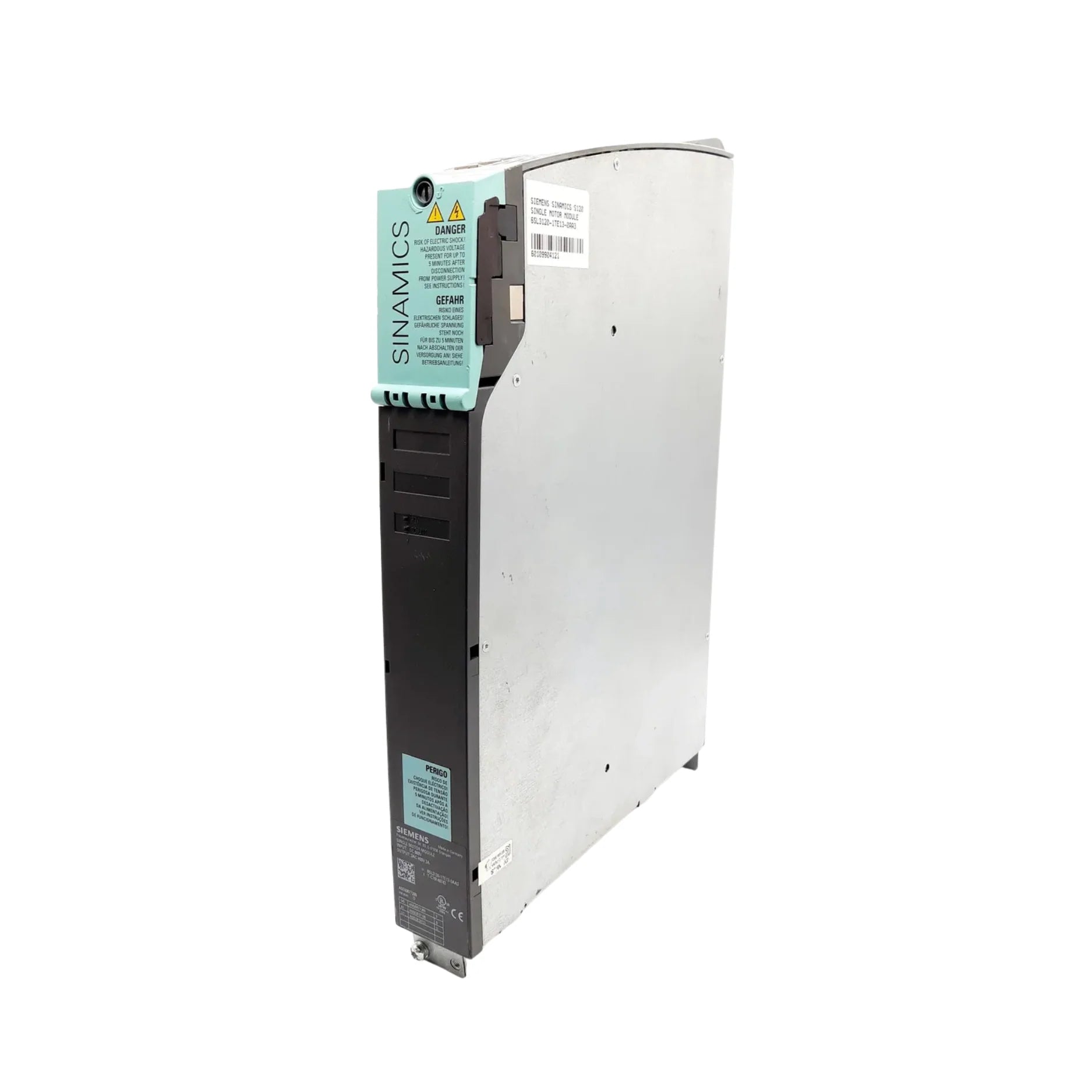

Siemens 6SL3120-1TE13-0AA4

Overview

Elevate your industrial automation with the Siemens 6SL3120-1TE13-0AA4 Double Motor Module, a critical component of the renowned SINAMICS S120 series. Engineered for precision and power, this module is specifically designed to manage two-axis applications, delivering exceptional dynamic performance and ultra-precise control. Its innovative design facilitates compact and highly flexible setups, making it an indispensable asset for modern, sophisticated motion control systems. With the 6SL3120-1TE13-0AA4, you can achieve unparalleled efficiency and reliability in your most demanding industrial processes, ensuring seamless operation and maximized productivity.

This Siemens module stands out with its robust construction and advanced technical capabilities, ensuring long-term operational stability even in harsh industrial environments. Its integration into your system is streamlined, thanks to Siemens' commitment to user-friendly design and comprehensive compatibility across its automation ecosystem. Whether you're upgrading existing machinery or building new systems from the ground up, the 6SL3120-1TE13-0AA4 provides the reliable foundation you need for advanced multi-axis control.

Key Features

• Dedicated SINAMICS S120 Double Motor Module: Specifically engineered for the SINAMICS S120 platform, ensuring optimal compatibility and performance within integrated drive systems.
• High Rated Power Output: Delivers a substantial 2x 5.5 kW at 150% overload for 60 seconds, providing ample power for demanding, dynamic two-axis operations.
• Versatile Input Voltage: Operates efficiently with a 3AC 400 V nominal input, accommodating standard industrial power supplies and ensuring broad applicability.
• Integrated Brake Chopper: Enhances safety and control by managing regenerative energy, protecting your system and improving overall performance during braking.
• Efficient Internal Air Cooling: Features a self-contained air-cooling system, simplifying installation and maintaining optimal operating temperatures without external cooling solutions.
• Compact Booksize Format: Designed in a space-saving booksize form factor, allowing for high-density cabinet installation and optimizing panel space utilization.
• Advanced Diagnostics and Protection: Equipped with sophisticated diagnostic tools and comprehensive protection features to safeguard your investment and minimize downtime.

Technical Specifications

• Siemens Code: 6SL3120-1TE13-0AA4
• Input Voltage: 3AC 380–480 V ±10%
• Output Power: 2× 5.5 kW (at 150% overload capacity for 60s)
• Cooling Type: Internal air cooling
• Rated Current: 2x 14 A
• Mounting: Booksize chassis for seamless cabinet installation
• Protection Rating: IP20
• Communication: PROFINET / PROFIBUS (via Control Unit)
• Ambient Temperature: 0 to +40 °C (without performance derating)

Applications

• Multi-axis Machine Tools: Provides precise and dynamic control for complex milling, turning, and grinding operations.
• Packaging and Printing Machinery: Ensures high-speed, synchronized motion for efficient and consistent production in packaging and printing lines.
• Material Handling Systems: Powers conveyor belts, robotic arms, and automated storage and retrieval systems with accuracy and reliability.
• Robotics and Automation Cells: Supports the agile and repetitive movements required in highly automated manufacturing environments.
• Industrial Production Lines: Drives various components within integrated production processes, from assembly to quality inspection.
• Textile and Paper Machines: Manages critical motion control tasks where precision and synchronization are paramount.

Why Choose This Model?

• Optimized for Two-Axis Dynamic Control: Specifically engineered for the intricate demands of multi-axis systems, offering superior performance and responsiveness.
• Significant Space Savings: Its compact booksize design allows for efficient utilization of panel space, especially valuable in crowded industrial enclosures.
• Seamless Modular System Integration: Designed to integrate effortlessly within modular machine concepts, simplifying system expansion and reconfiguration.
• Exceptional Overload Capacity: Boasts a high overload potential (150% for 60s), ensuring reliable operation and enhanced system resilience during peak demands.
• Guaranteed Siemens Quality: Benefits from Siemens' world-renowned engineering excellence, offering a product built for long-term reliability and robust performance.
• Comprehensive Support and Longevity: Backed by Siemens' extensive global support network, providing access to expert assistance and ensuring product longevity.

Order Now

Unlock the full potential of your multi-axis systems with the Siemens 6SL3120-1TE13-0AA4 Double Motor Module for SINAMICS S120. This module is your gateway to achieving unparalleled flexibility, precision, and control in your most critical industrial applications. Invest in Siemens quality and innovation to drive your operations forward.
