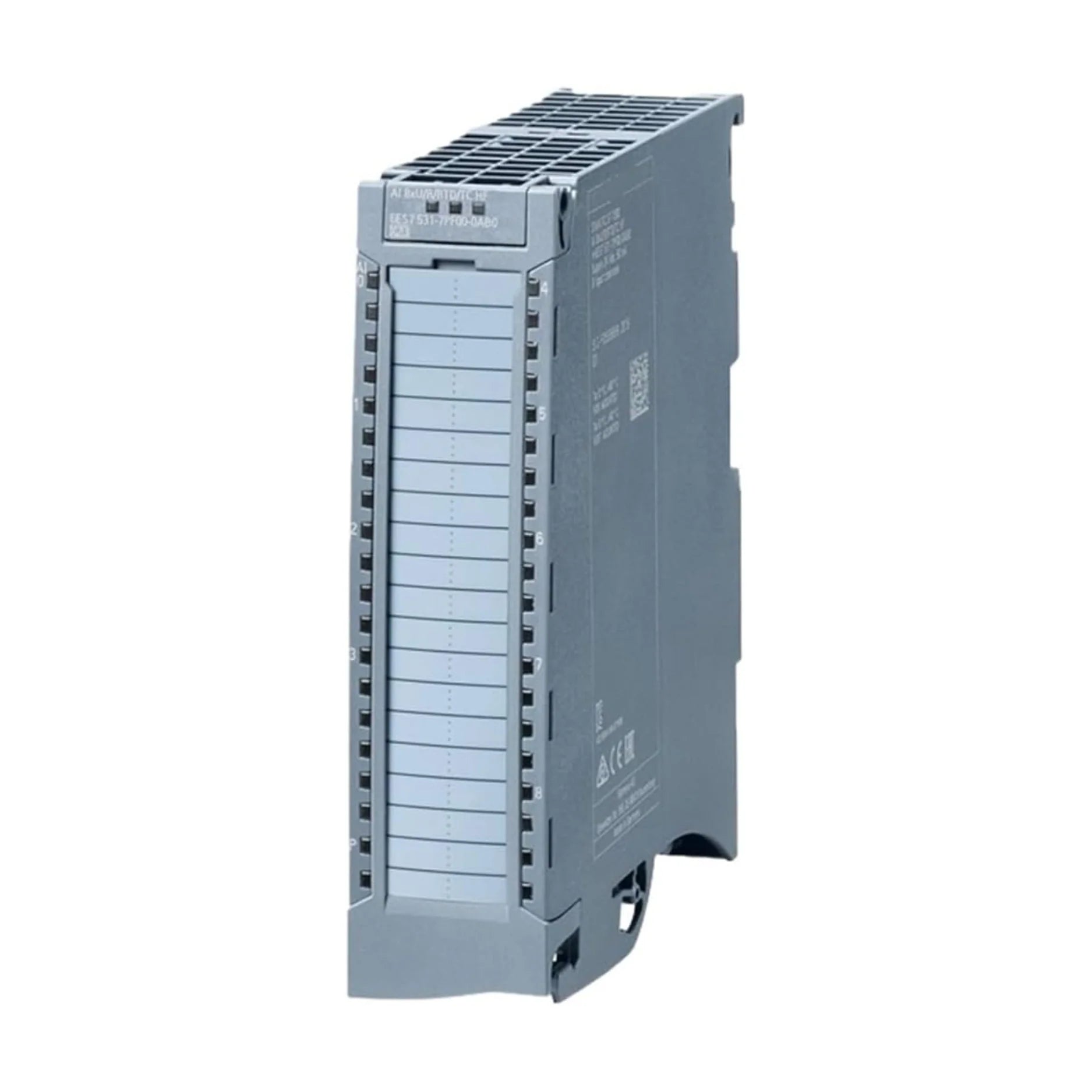

Siemens 6ES7531-7PF00-0AB0

Overview

The Siemens 6ES7531-7PF00-0AB0 is a state-of-the-art, high-feature (HF) analog input module meticulously engineered for seamless integration into the powerful SIMATIC S7-1500 automation system. This module is an indispensable component for applications demanding precise and reliable data acquisition. With its eight independent analog input channels, it offers unparalleled versatility, accommodating a wide spectrum of signal types including voltage, resistance, Resistance Temperature Detectors (RTDs), and thermocouples (TCs). Engineered for optimal performance, it boasts an impressive resolution of up to 21 bits for RTD and TC measurements, coupled with an exceptional accuracy of 0.1%. This ensures that even the most critical industrial processes benefit from highly accurate and detailed data, facilitating superior control and monitoring.

Key Features

• Universal Input Compatibility: Supports various signal types including voltage, resistance, precise RTDs, and thermocouples (TCs), offering extensive flexibility for diverse sensor integration.
• Ultra-High Measurement Resolution: Achieves up to 21-bit resolution for RTD and TC measurements, providing remarkably detailed and accurate data for sensitive applications.
• Exceptional Accuracy: Delivers a consistent measurement accuracy of 0.1%, crucial for precision-demanding industrial and process control environments.
• Channel Isolation for Enhanced Reliability: Features 8 individually grouped channels, ensuring isolated measurements to minimize interference and improve signal integrity.
• Advanced Diagnostic Capabilities: Integrated comprehensive diagnostics coupled with hardware interrupt features provide real-time monitoring and bolster system reliability.
• Scalable and Calibratable Temperature Measurement: Supports a wide range of scalable temperature measurements, including thermocouple type C, with the unique ability to calibrate during operation (Calibrate in RUN mode).
• Robust Industrial Design: Built to withstand demanding industrial environments, ensuring long-term performance and durability.

Technical Specifications

• Number of Analog Inputs: 8 channels
• Supported Input Types: Voltage, Resistance, RTD (Resistance Temperature Detector), Thermocouple
• Resolution:
  • Up to 16 bits for standard measurements
  • Up to 21 bits for RTD and TC measurements, providing enhanced detail
• Accuracy: 0.1% for precise data acquisition
• Common Mode Voltage: 30 V AC / 60 V DC
• Diagnostics: Comprehensive diagnostic functions with hardware interrupts for system monitoring
• Calibration: Supports "Calibrate in RUN" mode for operational flexibility
• Dimensions (W x H x D): 35 mm x 147 mm x 129 mm
• Net Weight: Approximately 0.410 kg

Applications

• Advanced Industrial Automation: Perfectly suited for sophisticated automated processes requiring highly accurate data acquisition and control.
• Precision Process Control: Ideal for monitoring and controlling intricate industrial processes where measurement accuracy is paramount, such as in chemical, pharmaceutical, and energy sectors.
• Critical Temperature Monitoring: Essential for applications necessitating detailed and reliable temperature measurements through RTDs and thermocouples, for example, in kilns, ovens, and climate control systems.
• Research and Development: Provides the precision and versatility needed for laboratory settings and experimental setups requiring accurate analog data capture.
• Energy Management Systems: Contributes to efficient energy monitoring and optimization within industrial facilities by providing accurate input data.

Why Choose This Model?

• Unmatched Precision: With up to 21-bit resolution and 0.1% accuracy, this module ensures that your data is always exceptionally precise, leading to better control and decision-making.
• Flexible Integration: Its ability to handle a wide array of input types (voltage, resistance, RTD, TC) means greater versatility and fewer modules needed for diverse applications.
• Enhanced Reliability: Individual channel isolation and extensive diagnostic features contribute to a more stable and dependable automation system, reducing downtime and maintenance.
• Seamless Compatibility with SIMATIC S7-1500: Designed specifically for the S7-1500 series, guaranteeing perfect integration and leveraging the full capabilities of Siemens' advanced automation platform.
• Future-Proof Investment: Siemens' reputation for quality and innovation ensures that this module is a long-term, reliable investment for your growing industrial needs.

Order Now

Elevate your industrial automation system with the Siemens 6ES7531-7PF00-0AB0 Analog Input Module. Experience unparalleled precision, versatility, and reliability for your most demanding applications. Invest in Siemens' cutting-edge technology today to optimize your processes and secure a competitive advantage.
