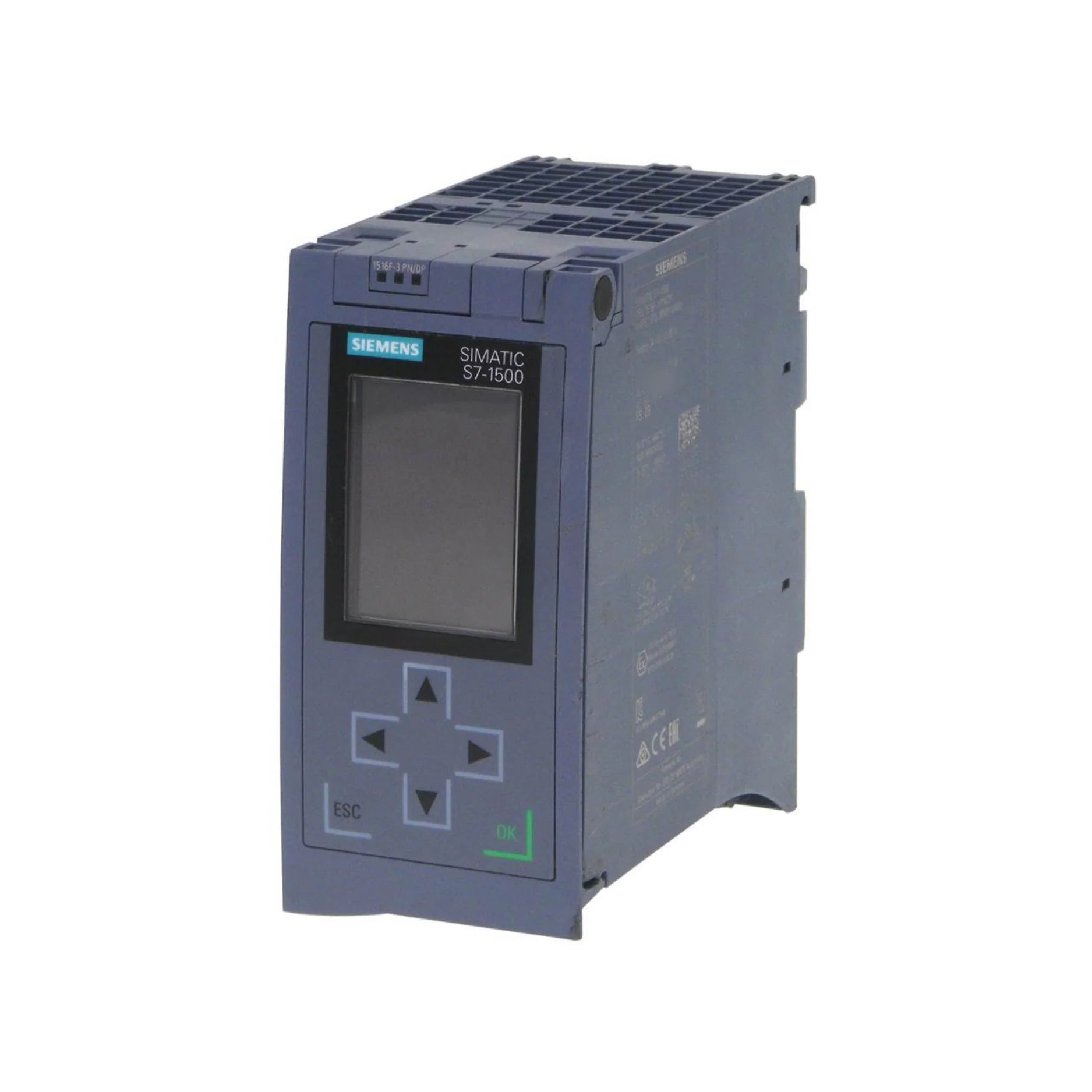

Siemens 6ES7516-3FN01-0AB0

Overview

The Siemens 6ES7516-3FN01-0AB0 is a high-performance central processing unit (CPU) from the renowned SIMATIC S7-1500F series, specifically the CPU 1516F-3 PN/DP model. This robust and fail-safe PLC is meticulously engineered for the most demanding automation applications, seamlessly integrating complex control tasks with essential safety-related functions. It represents a cornerstone for modern industrial and process automation, offering unparalleled processing power, extensive memory capacity, and versatile communication options. Designed to meet stringent industry standards, the 6ES7516-3FN01-0AB0 ensures reliable and secure operation in critical environments.

Key Features

• High-Performance Processing: Delivers exceptional speed with a bit processing time of just 10 nanoseconds, ensuring rapid and efficient execution of complex control programs.
• Fail-Safe Design: Supports safety-related applications up to Safety Integrity Level (SIL) 3 according to IEC 61508 and Performance Level (PL) e according to ISO 13849, providing maximum protection for personnel and processes.
• Generous Memory Allocation: Equipped with an impressive 1.5 MB of program memory and 5 MB of data memory, accommodating intricate programs and extensive data sets for sophisticated automation solutions.
• Integrated PROFINET IRT & RT: Features a built-in 2-port PROFINET IRT switch for real-time communication, alongside an additional PROFINET RT interface for standard Ethernet connectivity, facilitating high-speed data exchange.
• PROFIBUS DP Integration: Includes an integrated PROFIBUS DP interface, ensuring seamless connectivity with a wide range of existing PROFIBUS devices and facilitating hybrid communication architectures.
• Comprehensive Diagnostics: Offers extensive diagnostic functions for quick fault identification and resolution, minimizing downtime and optimizing operational efficiency.
• User-Friendly Interface: Designed with user-friendly display and control elements for intuitive operation and configuration, enhancing ease of use and maintenance.

Technical Specifications

• Product Type: Central Processing Unit (CPU)
• Part Number: 6ES7516-3FN01-0AB0
• Series: SIMATIC S7-1500F, CPU 1516F-3 PN/DP
• Program Memory: 1.5 MB
• Data Memory: 5 MB
• Bit Processing Speed: 10 nanoseconds
• Safety Compliance: Up to SIL 3 (IEC 61508), PL e (ISO 13849)
• PROFINET Interfaces: 1 x PROFINET IRT (2-port switch), 1 x PROFINET RT
• PROFIBUS Interfaces: 1 x PROFIBUS DP
• Required Accessory: SIMATIC Memory Card (for operation)
• Rated Voltage: 24 V DC
• Operating Voltage Range: 19.2 V to 28.8 V DC
• Current Consumption: Approximately 0.85 A at 24 V DC
• Power Loss: Typically 7 W
• Dimensions (W x H x D): Approx. 147 mm x 147 mm x 129 mm
• Weight: Approx. 0.904 kg
• Operating Temperature: -25°C to +60°C
• Protection Class: IP20

Applications

The Siemens 6ES7516-3FN01-0AB0 is an ideal solution for a diverse range of critical industrial applications:

• Complex Industrial Automation: Expertly manages and controls highly sophisticated machinery and intricate production lines where both standard and advanced safety requirements are paramount.
• Continuous Process Industries: Optimally suited for regulating and monitoring continuous processes in demanding sectors such as chemical manufacturing, pharmaceuticals, and oil & gas, ensuring precise and safe operations.
• Safety-Critical Systems: Indispensable for implementing robust fail-safe operations in applications where human lives and environmental integrity depend on flawlessly functioning automation systems.
• Distributed Automation Architectures: Seamlessly integrates into complex distributed control systems requiring hybrid communication capabilities via both PROFINET and PROFIBUS networks, enhancing connectivity and flexibility.
• Automotive and Manufacturing: Provides the powerful and reliable control necessary for high-speed assembly lines, robotics, and quality control systems in the automotive and general manufacturing industries.

Why Choose This Model?

• Unmatched Reliability: Built with Siemens' legendary engineering quality, ensuring consistent and dependable performance in even the most challenging industrial environments.
• Future-Proof Technology: Designed to meet current and future automation demands with its advanced processing capabilities, extensive memory, and versatile communication options.
• Enhanced Safety: The fail-safe functionalities up to SIL 3 and PL e provide peace of mind, protecting assets, processes, and personnel from potential hazards.
• Seamless Integration: Its multiple communication interfaces (PROFINET IRT, RT, and PROFIBUS DP) allow for effortless integration into existing and new automation landscapes.
• Optimized Efficiency: High-speed bit processing and comprehensive diagnostic features contribute to increased operational efficiency and reduced downtime.
• Comprehensive Support: Backed by Siemens' global network of support and documentation, ensuring long-term usability and technical assistance.

Order Now

Elevate your automation infrastructure with the power and reliability of the Siemens 6ES7516-3FN01-0AB0 SIMATIC S7-1500F CPU. For detailed technical documentation and guidance, please consult Siemens' official resources or contact our authorized representatives. Explore our full range of Siemens SIMATIC S7-1500 PLCs and other Siemens PLC solutions to find the perfect fit for your industrial needs.
