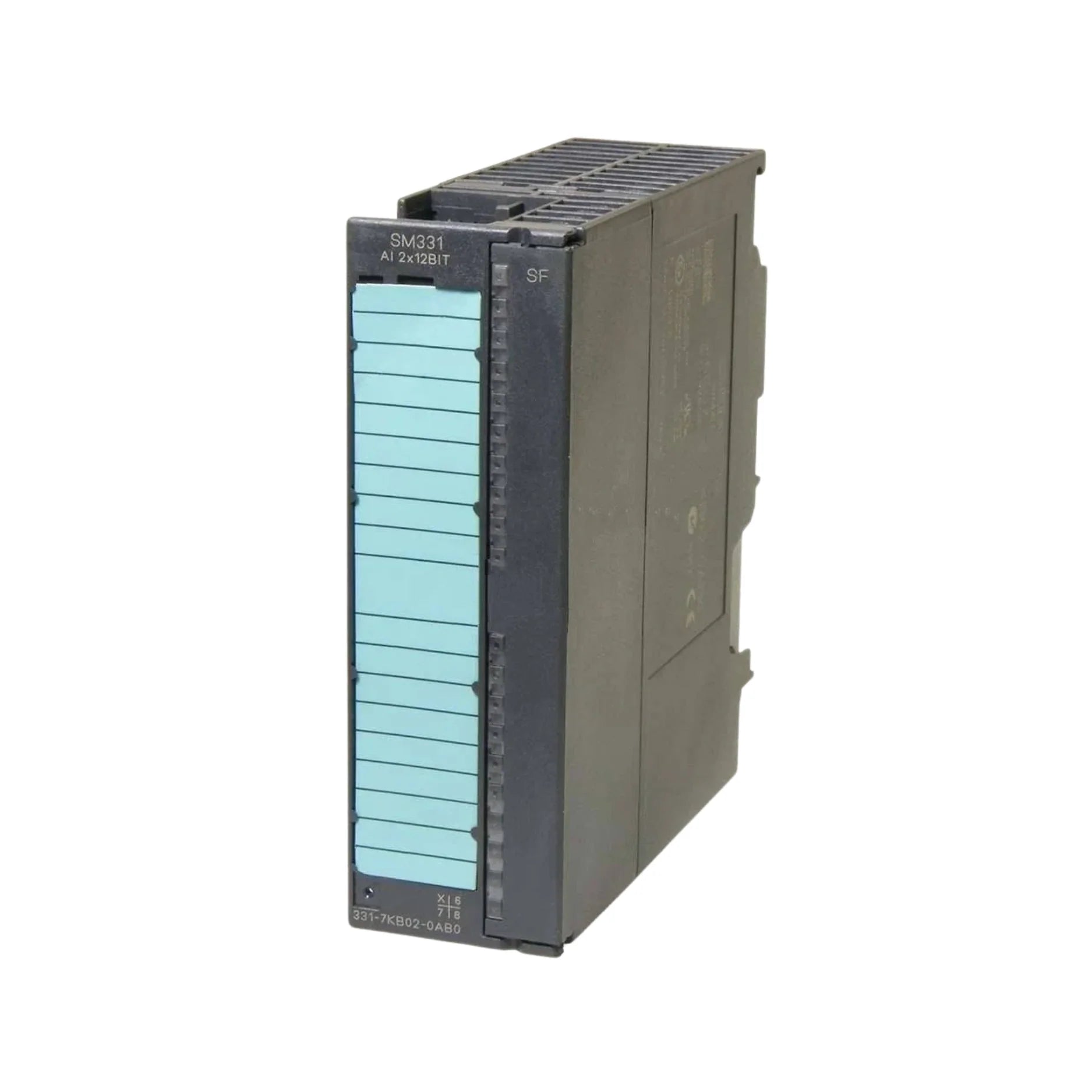

Siemens 6ES7331-7KB02-0AB0

Overview

The Siemens 6ES7331-7KB02-0AB0 is a robust and versatile analog input module meticulously engineered for seamless integration into the SIMATIC S7-300 automation system. Designed to provide exceptional precision and reliability, this module offers two fully isolated analog inputs, capable of accommodating a diverse range of signal types including voltage, current, thermocouple, and resistance. With selectable resolutions of 9, 12, or 14 bits, it caters to various application requirements, ensuring accurate data acquisition for critical industrial processes. Its integrated diagnostic features and alarm functionalities further bolster system monitoring and operational integrity, making it an indispensable component for demanding automation environments.

Key Features

• Dual Isolated Analog Inputs: Two independent channels provide enhanced signal integrity and noise immunity.
• Flexible Resolution: User-selectable 9, 12, or 14-bit resolution to match application precision needs.
• Multi-Signal Compatibility: Supports a wide array of input signals including voltage, current, thermocouple (J, K, T, E, R, S, B, N types), and resistance.
• Advanced Diagnostics: Integrated diagnostic functions with comprehensive alarm capabilities for proactive system health monitoring.
• Hot Swapping Capability: Allows for module replacement while the backplane bus remains active, minimizing downtime.
• Compact Design: Optimized dimensions (40mm x 125mm x 120mm) for efficient panel space utilization.
• Durable Construction: Built for demanding industrial environments with a wide operating temperature range (0°C to +45°C).

Technical Specifications

The Siemens 6ES7331-7KB02-0AB0 module is designed with precise technical specifications to ensure optimal performance:

• Input Ranges:
  • Voltage: ±80 mV, ±250 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V.
  • Current: ±20 mA.
  • Thermocouple Types: J, K, T, E, R, S, B, N.
  • Resistance: 150 Ω, 300 Ω, 600 Ω.
• Conversion Time: Approximately 2.5 ms per channel at 14-bit resolution, varying with selected resolution.
• Isolation: Features optical isolation between individual channels and the backplane bus for enhanced safety and reduced interference.
• Connector: Equipped with 1x 20-pole front connector for secure and reliable wiring.
• Dimensions (W x H x D): 40 mm x 125 mm x 120 mm.
• Weight: Approximately 0.249 kg.
• Power Supply: Operates on a standard 24 V DC power supply.
• Operating Temperature Range: 0°C to +45°C.
• Mounting: Designed for standard DIN rail mounting, fully compatible with existing S7-300 series racks.

Applications

This versatile analog input module is ideal for a broad spectrum of industrial applications:

• Process Automation: Essential for accurate and reliable measurement of analog signals in complex process control systems, ensuring precise regulation of various parameters.
• Industrial Automation: Facilitates seamless integration of diverse sensor types into manufacturing environments for comprehensive monitoring and precise control of machinery and processes.
• Data Acquisition: Provides a robust solution for reliable data collection from multiple analog sources, crucial for in-depth analysis, system optimization, and predictive maintenance strategies.
• Building Management Systems: Can be employed for monitoring environmental parameters such as temperature, humidity, and pressure in large-scale building automation.
• Energy Management: Used for collecting data from energy consumption sensors to optimize energy usage and reduce operational costs.

Why Choose This Model?

• Unmatched Reliability: Built with Siemens' renowned quality and engineering, ensuring consistent and dependable performance in critical industrial operations.
• Flexibility and Adaptability: Its support for multiple signal types and selectable resolution makes it highly adaptable to a wide array of industrial sensing requirements.
• Enhanced System Uptime: Features like hot swapping and comprehensive diagnostics significantly reduce downtime and simplify maintenance procedures.
• Seamless Integration: Designed specifically for the SIMATIC S7-300 series, guaranteeing effortless integration and compatibility with existing Siemens control systems.
• Precision and Accuracy: Delivers highly accurate analog signal conversion, vital for applications demanding exact measurements and control.
• Cost-Effective Solution: A durable and long-lasting component that provides excellent value, reducing overall operational and maintenance costs over its lifespan.

Order Now

Elevate your automation capabilities with the Siemens 6ES7331-7KB02-0AB0 SIMATIC S7-300 Analog Input Module. Its superior performance, robust design, and advanced features make it the ideal choice for enhancing the efficiency and reliability of your industrial processes. Contact us today to place your order or to learn more about how this module can benefit your specific application needs. For more Siemens SIMATIC S7-300 PLCs, explore our extensive range here. Discover the full spectrum of Siemens PLCs family here.
