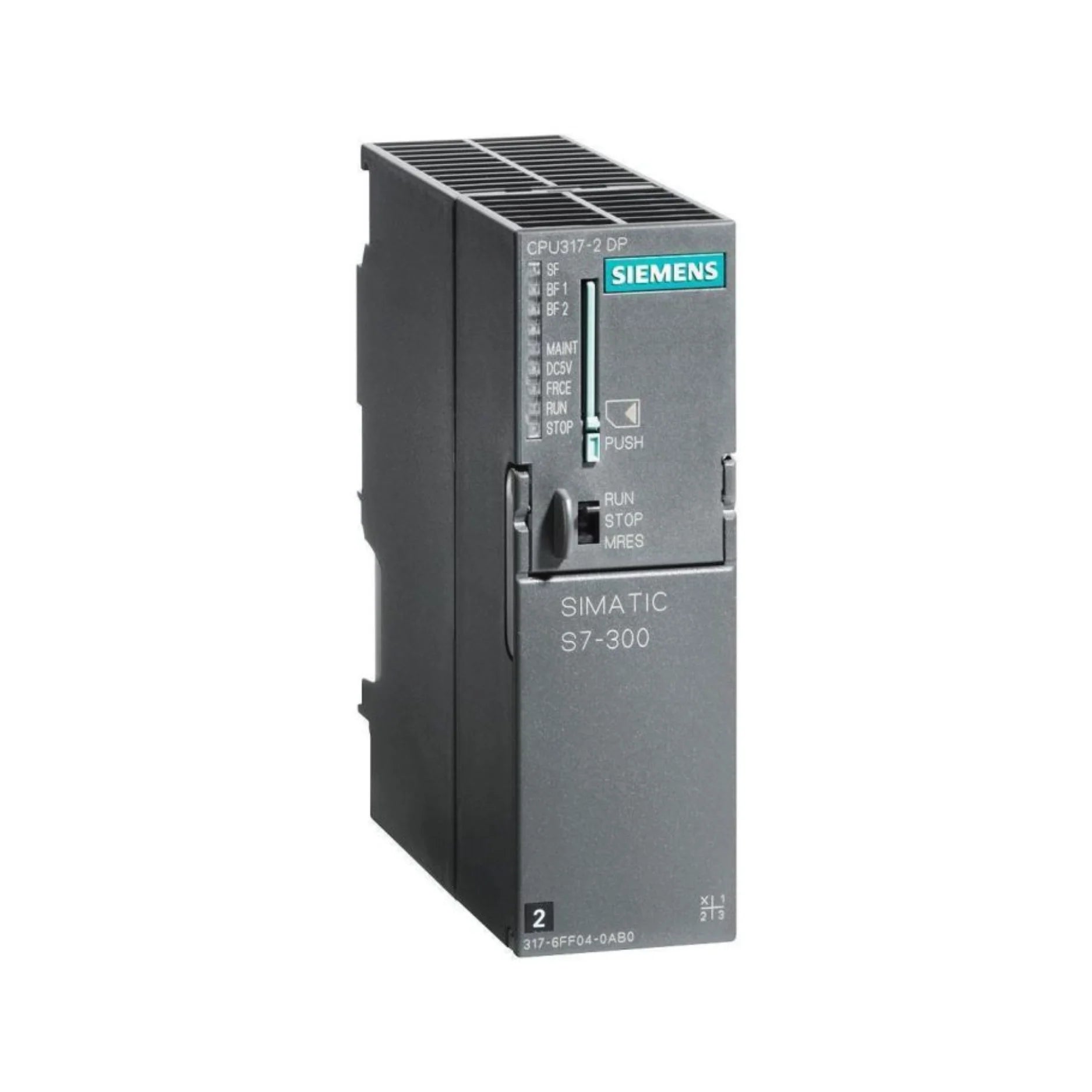

Siemens 6ES7317-2AK14-0AB0

Overview

The Siemens 6ES7317-2AK14-0AB0 is a high-performance central processing unit (CPU) from the renowned SIMATIC S7-300 series, specifically designed for managing complex and demanding automation tasks in diverse industrial environments. As the CPU 317-2 DP model, it stands out with its robust processing capabilities and comprehensive communication options, making it an indispensable component for optimizing industrial processes. This CPU is engineered to deliver reliable and efficient control, ensuring seamless integration and superior performance across a wide spectrum of applications, from intricate manufacturing lines to critical process control systems.

With its generous 1 MB integrated work memory, this CPU can comfortably handle extensive programs and large datasets, offering unparalleled flexibility for sophisticated automation projects. The inclusion of versatile interfaces, such as the MPI/DP and PROFIBUS DP master/slave, further enhances its adaptability, facilitating high-speed communication with a multitude of devices and distributed peripherals. This particular model, the Siemens 6ES7317-2AK14-0AB0, represents a cornerstone of efficient industrial automation, providing a powerful and dependable solution for engineers and system integrators seeking to maximize productivity and operational excellence.

Key Features

• Generous 1 MB Integrated Work Memory: Enables the execution of extensive and complex automation programs with ample data handling capacity.
• Integrated MPI/DP Interface: Supports high-speed communication up to 12 Mbit/s, ensuring seamless integration with various SIMATIC devices and networks.
• PROFIBUS DP Master/Slave Capability: Offers flexible and robust communication with distributed I/O and field devices, enhancing system architecture.
• Rapid Processing Times: Achieves exceptional speeds with bit operations at 0.025 µs and word operations at 0.03 µs, guaranteeing real-time control.
• Compact and Robust Design: Measuring 40 mm (W) x 125 mm (H) x 130 mm (D) and weighing approximately 360g, it's ideal for space-constrained industrial cabinets.
• Wide Operating Temperature Range: Functions reliably from 0°C to +60°C, making it suitable for demanding industrial conditions.
• 24 V DC Power Supply: Operates efficiently within a permissible range of 19.2 V to 28.8 V DC, ensuring stable power delivery.

Technical Specifications

• Model: Siemens 6ES7317-2AK14-0AB0 SIMATIC S7-300 CPU 317-2 DP
• Work Memory: 1,024 KB integrated
• Load Memory: Expandable via Micro Memory Card (MMC) up to 8 MB (MMC required for operation)
• First Interface: MPI/DP, supporting up to 12 Mbit/s
• Second Interface: PROFIBUS DP Master/Slave
• Bit Operations: 0.025 µs
• Word Operations: 0.03 µs
• Fixed Point Arithmetic: 0.04 µs
• Floating Point Arithmetic: 0.16 µs
• Rated Current: 870 mA
• Power Loss: Approximately 4.5 W
• Power Supply: 24 V DC (Permissible range: 19.2 V to 28.8 V DC)
• Dimensions (W x H x D): 40 mm x 125 mm x 130 mm
• Weight: Approximately 360 g
• Operating Temperature: 0°C to +60°C
• Storage Temperature: -40°C to +70°C
• Relative Humidity: 5% to 95% (non-condensing)
• I/O Address Area: Inputs: 8,192 bytes; Outputs: 8,192 bytes

Applications

• Industrial Automation & Manufacturing: Ideal for managing complex control tasks, optimizing production lines, and ensuring precise machine operation across various manufacturing sectors.
• Process Control Systems: Provides accurate and reliable control for critical industrial processes, including chemical plants, power generation, and water treatment facilities.
• Distributed Control Systems: Facilitates seamless communication and control across geographically dispersed devices and systems, enhancing overall system efficiency and scalability.
• Building Management Systems: Can be integrated into advanced building automation for HVAC control, energy management, and security systems.
• Robotics and Motion Control: Delivers the processing power and communication capabilities required for intricate robotic applications and precise motion control systems.

Why Choose This Model?

• Unmatched Reliability: Engineered by Siemens, a global leader in automation, ensuring long-term operational stability and minimal downtime.
• High Performance for Complex Tasks: The 1 MB work memory and rapid processing speeds make it perfectly suited for demanding applications that require quick execution and extensive data handling.
• Seamless Integration and Connectivity: With both MPI/DP and PROFIBUS DP interfaces, this CPU offers superior interoperability with a wide range of industrial devices and networks.
• Compact Design, Powerful Capabilities: Its optimized dimensions allow for easy installation in tight spaces without compromising on performance or functionality.
• Proven S7-300 Platform: Benefits from the extensive ecosystem and widespread familiarity of the SIMATIC S7-300 series, simplifying maintenance and support.
• Future-Proofing Your Automation: A robust foundation for scalable industrial solutions, capable of adapting to evolving technological requirements and expanding system needs.

Order Now

Elevate your industrial automation capabilities with the Siemens 6ES7317-2AK14-0AB0 SIMATIC S7-300 CPU 317-2 DP. This advanced CPU offers the perfect blend of performance, reliability, and connectivity to tackle your most challenging automation projects. For detailed technical inquiries or to request a quote, please contact our sales team or refer to the official Siemens documentation. Invest in cutting-edge industrial control and empower your operations with Siemens precision and innovation. Explore more products in the Siemens SIMATIC S7-300 series and the wider Siemens PLC family to find the ideal solutions for your industrial needs.
