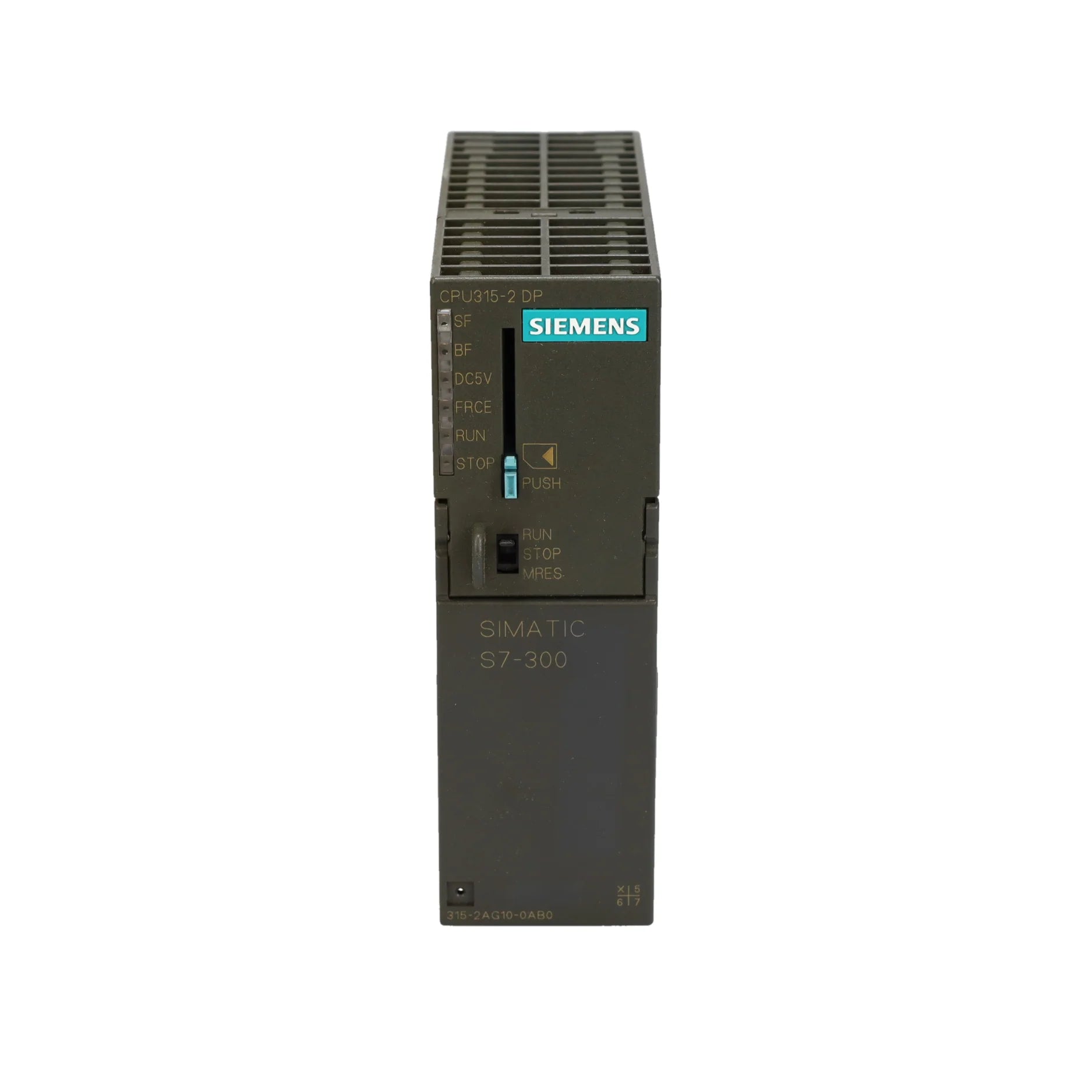

Siemens 6ES7315-2AG10-0AB0

Overview

The Siemens 6ES7315-2AG10-0AB0 is a powerful and versatile Central Processing Unit (CPU) within the renowned SIMATIC S7-300 series. Engineered for diverse industrial automation tasks, this CPU 315-2DP unit provides reliable control and efficient processing for a wide range of applications. It boasts an integrated 24 V DC power supply, simplifying installation and reducing external component needs. With a substantial 128 KB of work memory, it's capable of handling complex programs and extensive data sets, ensuring smooth operation in demanding environments. This CPU is distinguished by its dual communication interfaces: a Multi-Point Interface (MPI) for seamless connectivity with programming devices, PCs, and other SIMATIC S7 systems, and a PROFIBUS DP interface that can flexibly operate as both a master and a slave, facilitating high-speed communication with distributed I/O devices. While this particular model has been discontinued since October 1, 2022, its robust feature set and proven performance make it a valuable component for existing systems or those seeking reliable, well-supported legacy hardware. The recommended successor for new installations is the 6ES7315-2AH14-0AB0.

Key Features

• Integrated 24 V DC Power Supply: Simplifies system design and reduces hardware requirements by incorporating power directly into the unit.
• Generous 128 KB Work Memory: Provides ample space for complex control programs, extensive data storage, and efficient real-time processing.
• Dual Communication Interfaces (MPI & PROFIBUS DP): Offers flexible connectivity options for seamless integration into various automation networks.
• PROFIBUS DP Master/Slave Capability: Enables high-speed, deterministic communication with distributed I/O modules, enhancing system responsiveness.
• Robust SIMATIC S7-300 Architecture: Built on a proven platform known for its reliability, durability, and widespread industrial acceptance.
• Compact and Efficient Design: Optimized dimensions (40 mm x 125 mm x 130 mm) for space-saving installation within industrial control cabinets.
• CE and UL Compliant: Meets stringent international standards for safety and quality, ensuring reliable and secure operation.

Technical Specifications

The Siemens 6ES7315-2AG10-0AB0 is a Central Processing Unit (CPU) meticulously engineered for industrial applications. It carries the part number 6ES7315-2AG10-0AB0, identifying its unique configuration. Powering the unit is an integrated 24 V DC supply, ensuring consistent and stable operation. Its substantial 128 KB work memory allows for the execution of complex control logic and the management of significant data volumes. Connectivity is a key strength, with one MPI port facilitating communication with programming devices and other SIMATIC S7 systems, and one PROFIBUS DP port that can be configured for either master or slave operation, enabling high-speed data exchange with peripheral devices. For program and data storage, a Micro Memory Card (MMC) is required but not included. The CPU's physical dimensions are 40 mm in width, 125 mm in height, and 130 mm in depth, making it suitable for various cabinet layouts. Weighing approximately 0.5 kg, it is a relatively lightweight yet robust component. Furthermore, it complies with CE and UL standards, underscoring its adherence to international safety and quality benchmarks.

Applications

• Industrial Automation Systems: Serves as the central control unit for a wide array of automated processes in manufacturing and production.
• Discrete Manufacturing: Ideal for managing assembly lines, packaging machinery, and robotic cells, ensuring precise and synchronized operations.
• Process Control Industries: Applicable in sectors such as chemical, pharmaceutical, and food and beverage for accurate control of continuous processes.
• Building Management Systems: Can be integrated into larger infrastructure projects for controlling HVAC, lighting, and security systems.
• Water and Wastewater Treatment: Effectively manages pumps, valves, and filtration systems, ensuring efficient resource management.
• Energy Management: Utilized in power generation and distribution for monitoring and controlling critical electrical infrastructure.

Why Choose This Model?

• Proven Reliability: Part of the highly successful SIMATIC S7-300 series, known globally for its robust performance and longevity in challenging industrial environments.
• Comprehensive Connectivity: The combination of MPI and PROFIBUS DP interfaces provides versatile communication options, allowing for integration into diverse existing or new systems.
• Cost-Effective Solution: Despite being a discontinued model, its availability can offer a budget-friendly option for expanding or maintaining current SIMATIC S7-300 installations.
• Ease of Integration: Familiar architecture and programming environment for those already working with Siemens SIMATIC PLCs, reducing learning curves and deployment times.
• Optimized for Legacy Systems: An excellent choice for users looking to replace or upgrade components within existing SIMATIC S7-300 setups, ensuring compatibility and minimal disruption.
• High Performance for its Class: The 128 KB work memory and dual-interface capabilities provide significant processing power for a wide range of mid-level automation tasks.

Order Now

Elevate your industrial automation capabilities with the Siemens 6ES7315-2AG10-0AB0 SIMATIC S7-300 CPU 315-2DP. While this model has transitioned to a successor, its proven track record for reliability and performance makes it an excellent choice for maintaining or expanding your current S7-300 systems. Ensure seamless control and efficient operation across your applications by integrating this powerful CPU. Consult our expert team for compatibility questions or to explore suitable alternatives like the 6ES7315-2AH14-0AB0. Secure your essential automation components today and experience the enduring quality of Siemens engineering.
