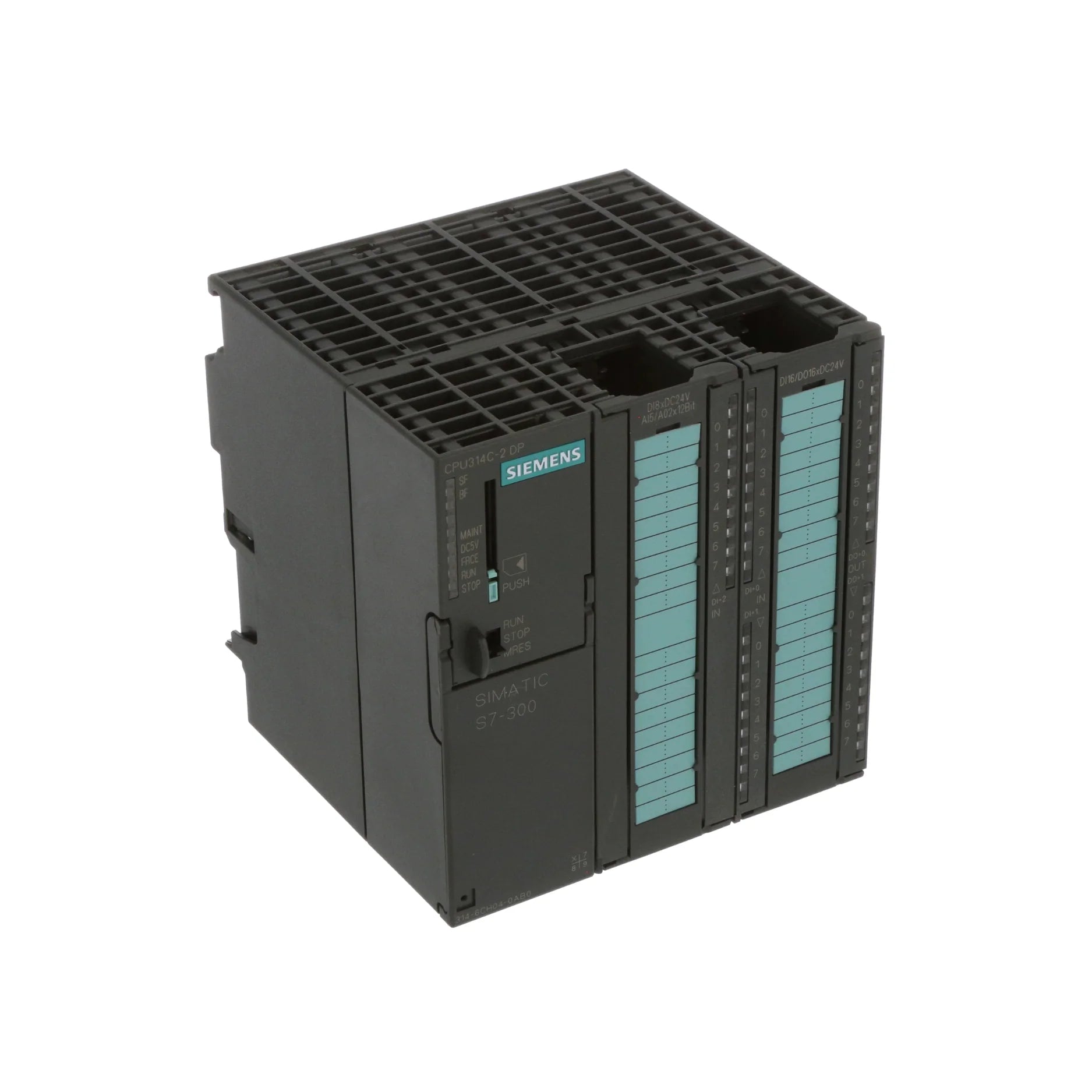

Siemens 6ES7314-6CH04-0AB0

Overview

Unlock superior industrial automation with the Siemens 6ES7314-6CH04-0AB0, a high-performance CPU 314C-2 PN/DP from the renowned SIMATIC S7-300 series. This compact yet incredibly powerful programmable logic controller (PLC) is engineered to tackle demanding control tasks in diverse automation systems. Boasting 384KB of work memory, integrated I/O, and seamless connectivity via both PROFINET and PROFIBUS interfaces, this CPU provides a comprehensive solution for efficient and reliable operation. Its robust design and versatile features make it an ideal choice for a wide array of applications, from discrete manufacturing to complex process control.

Key Features

• Generous Work Memory: Equipped with 384KB of work memory (192KB for program, 192KB for data) to handle complex programs and substantial data sets.
• Integrated I/O Capabilities: Features 24 digital inputs, 16 digital outputs, 5 analog inputs, and 2 analog outputs for direct connection to sensors and actuators.
• High-Speed Processing: Achieves an exceptional bit performance of approximately 0.1 µs per instruction, ensuring rapid execution of control commands.
• Dual Communication Protocols: Supports both PROFINET (RJ45) and PROFIBUS DP (Sub-D) for flexible and powerful communication within industrial networks.
• Versatile Integrated Functions: Includes advanced functionalities such as PID control, pulse width modulation (PWM), counting, and measuring, simplifying complex control strategies.
• Compact and Robust Design: Designed for DIN rail mounting and built to withstand challenging industrial environments, ensuring long-term reliability.

Technical Specifications

The Siemens 6ES7314-6CH04-0AB0 CPU is built with precision and adherence to international standards.

• Part Number: 6ES7314-6CH04-0AB0
• Series: SIMATIC S7-300
• CPU Type: 314C-2 PN/DP
• Communication Ports: 1x PROFINET (RJ45), 1x PROFIBUS DP (Sub-D)
• Power Supply: 24V DC
• Operating Temperature: 0°C to +60°C
• Dimensions (W x H x D): Approx. 160 x 125 x 130 mm
• Weight: Approx. 850 g
• Certifications: CE, UL, cULus, RoHS
• Expansion: Capable of supporting additional signal modules and communication processors for expanded system capabilities.

Applications

The flexibility and power of the Siemens 6ES7314-6CH04-0AB0 make it suitable for a broad spectrum of industrial applications:

• Advanced Machine Automation: Ideal for controlling complex machinery and equipment with high precision and speed.
• Decentralized Process Control: Perfectly suited for distributed automation systems requiring robust and reliable control.
• Packaging and Logistics: Enhances efficiency and accuracy in automated packaging lines, bottling plants, and intricate logistics systems.
• Motion Control Systems: Provides precise control for various motion applications, ensuring smooth and synchronized movements.
• Industrial Network Integration: Facilitates seamless communication and integration within diverse industrial networks utilizing mixed protocols.

Why Choose This Model?

• Unmatched Versatility: The combination of PROFINET and PROFIBUS interfaces in a single CPU offers unparalleled flexibility for integration into existing and new industrial networks.
• All-in-One Efficiency: With integrated I/O and a powerful logic controller, this CPU minimizes the need for additional modules, streamlining system design and reducing complexity.
• Superior Performance: The rapid bit performance ensures that even the most intricate and time-sensitive automation sequences are executed flawlessly.
• Future-Proof Expandability: Designed with future growth in mind, it supports a wide range of expansion modules, allowing your automation system to evolve with your needs.
• Siemens Reliability: Benefit from the world-renowned quality and reliability of Siemens industrial automation products, assuring long-term operational stability.

Order Now

Enhance your automation infrastructure today with the Siemens 6ES7314-6CH04-0AB0 CPU 314C-2 PN/DP. This essential component for advanced industrial control is readily available and ships worldwide, ensuring you can quickly implement your next automation project. Invest in Siemens quality and elevate your operational efficiency.
