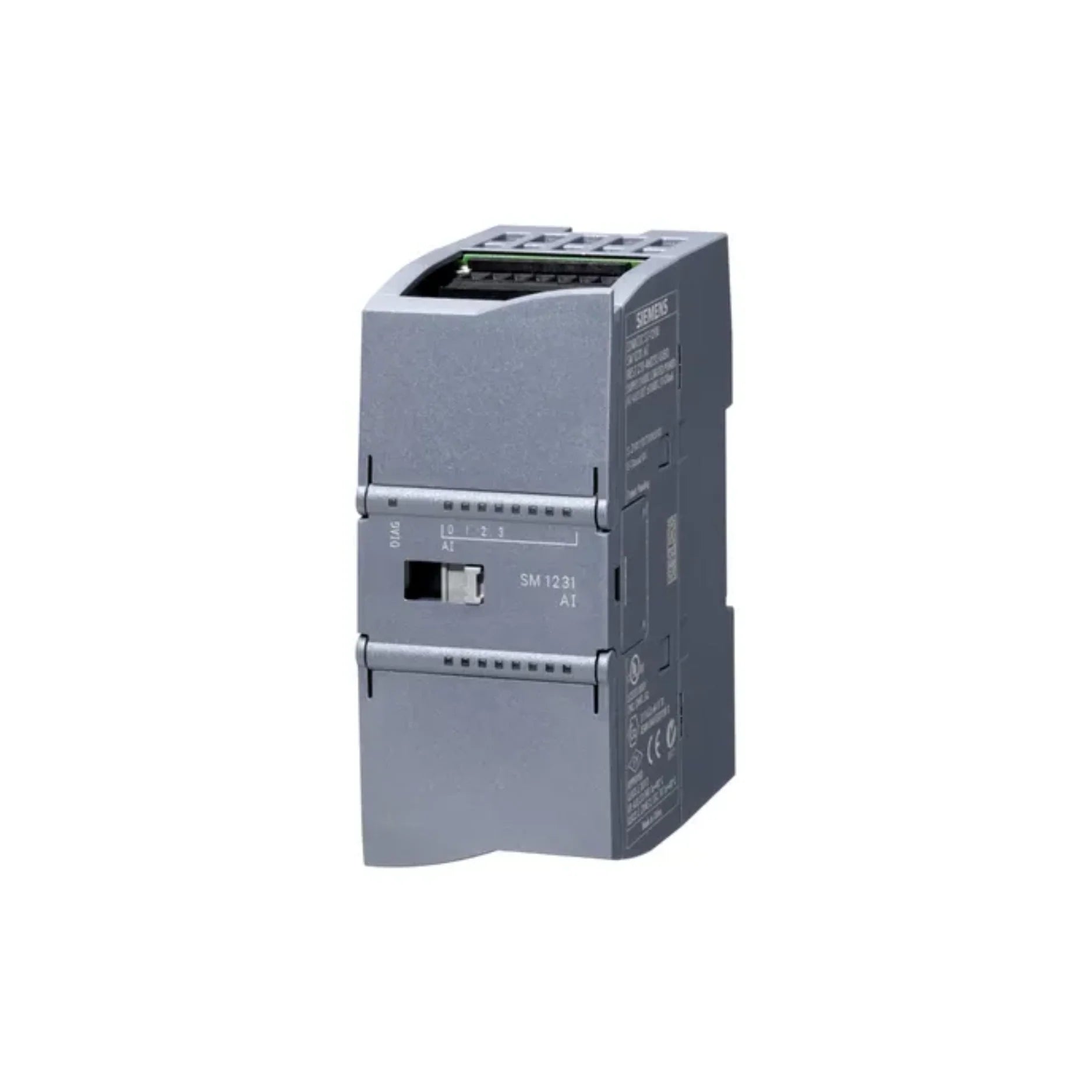

SIEMENS 6ES7231-5QD32-0XB0

Overview

The SIEMENS 6ES7231-5QD32-0XB0 is a high-performance Analog Input Module meticulously engineered for seamless integration with SIMATIC S7-1200 Programmable Logic Controller (PLC) systems. This advanced module empowers industrial automation by providing four galvanically isolated, high-accuracy analog input channels, capable of precisely acquiring signals from a wide array of sensors. From voltage and current measurements to resistance temperature detectors (RTDs) and thermocouples, the 6ES7231-5QD32-0XB0 ensures reliable and accurate data acquisition, making it an indispensable component for demanding industrial measurement and control applications.

Designed for robustness and versatility, this SIEMENS module delivers exceptional performance in diverse operating environments. Its compact form factor facilitates easy installation within control cabinets, while its comprehensive support for various signal types simplifies system design and reduces the need for external signal conditioning. Whether you're monitoring critical process parameters or implementing sophisticated automation routines, the 6ES7231-5QD32-0XB0 provides the precision and reliability essential for optimizing your industrial operations.

Key Features

• Four High-Accuracy Analog Inputs: Equipped with four independent channels, supporting a broad spectrum of analog signals including voltage, current, RTDs (PT100, PT1000), and thermocouples (Type J, K, T).
• 12-Bit Resolution for Precision: Delivers superior measurement accuracy and granularity with its 12-bit resolution, ensuring even subtle variations in input signals are detected.
• Galvanic Isolation: Provides robust protection against electrical interference and ground loops, enhancing signal integrity and system reliability in harsh industrial settings.
• Wide Input Signal Compatibility: Supports standard industrial voltage ranges (0-10V, ±10V) and current loops (0-20mA), alongside common RTD and thermocouple types for maximum flexibility.
• Seamless SIMATIC S7-1200 Integration: Designed for effortless connection and configuration within SIMATIC S7-1200 PLC environments, leveraging the power and flexibility of the TIA Portal.
• Fast Conversion Time: Achieves a rapid conversion time of approximately 500 µs per channel, ensuring near real-time data acquisition for time-critical applications.
• Compact and Durable Design: Engineered for space-efficient installation and built to withstand the rigorous conditions of industrial environments, operating reliably from 0 to 55°C.

Technical Specifications

• Model: Siemens 6ES7231-5QD32-0XB0
• Series: SIMATIC S7-1200
• Analog Inputs: 4 channels (AI)
• Input Signal Types:
  • Voltage: ±10V, 0-10V
  • Current: 0-20mA
  • RTD: PT100, PT1000
  • Thermocouple: Type J, K, T, etc.
• Resolution: 12-bit
• Conversion Time: Approximately 500 µs per channel
• Accuracy: ±0.5% of full scale
• Galvanic Isolation: Yes (between channels and from backplane/field)
• Power Supply: 24V DC
• Dimensions: Compact for easy panel mounting
• Operating Temperature: 0 to 55°C

Applications

• Industrial Process Control: Precisely monitor and control critical parameters such as temperature, pressure, and flow in manufacturing, chemical, and energy plants.
• Automation Systems: Essential for PLC-based measurement applications across various industries, enabling advanced control strategies and real-time data analysis.
• HVAC Systems Modernization: Integrate seamlessly for accurate temperature and humidity control in building management systems, ensuring optimal climate conditions and energy efficiency.
• Energy Monitoring and Management: Acquire data from energy metering sensors to optimize power consumption and implement effective energy management strategies in facilities.
• Laboratory and Test Equipment: Utilize for high-precision data acquisition and monitoring in research, development, and quality control laboratories.
• Water and Wastewater Treatment: Monitor various environmental parameters, enabling efficient control of processes and compliance with regulatory standards.

Why Choose This Model?

• Unmatched Versatility: With support for a wide array of sensor types, the 6ES7231-5QD32-0XB0 eliminates the need for multiple specialized modules, simplifying inventory and reducing overall system costs.
• Superior Measurement Reliability: The combination of 12-bit resolution, high accuracy (±0.5% of full scale), and galvanic isolation guarantees highly reliable and precise data, crucial for critical industrial processes.
• Simplified Integration and Programming: As a native SIMATIC S7-1200 module, it offers plug-and-play functionality and straightforward configuration within the Siemens TIA Portal, accelerating development and deployment.
• Enhanced System Resilience: Galvanic isolation protects your PLC and other sensitive components from electrical surges and noise, contributing to a more stable and longer-lasting automation system.
• Optimized for Industrial Demands: Its compact size, robust construction, and wide operating temperature range ensure dependable performance in even the most challenging industrial environments.
• Future-Proof Your Automation: Invest in a SIEMENS product known for its longevity and continuous support, ensuring your automation infrastructure remains current and efficient for years to come.

Order Now

Elevate your industrial automation capabilities with the SIEMENS 6ES7231-5QD32-0XB0 SIMATIC S7-1200 Analog Input Module. Experience unparalleled precision, versatility, and reliability for your critical measurement and control applications. Designed for seamless integration and robust performance, this module is an essential upgrade for any modern S7-1200 system. Contact us today to secure your module and advance your operational efficiency!
