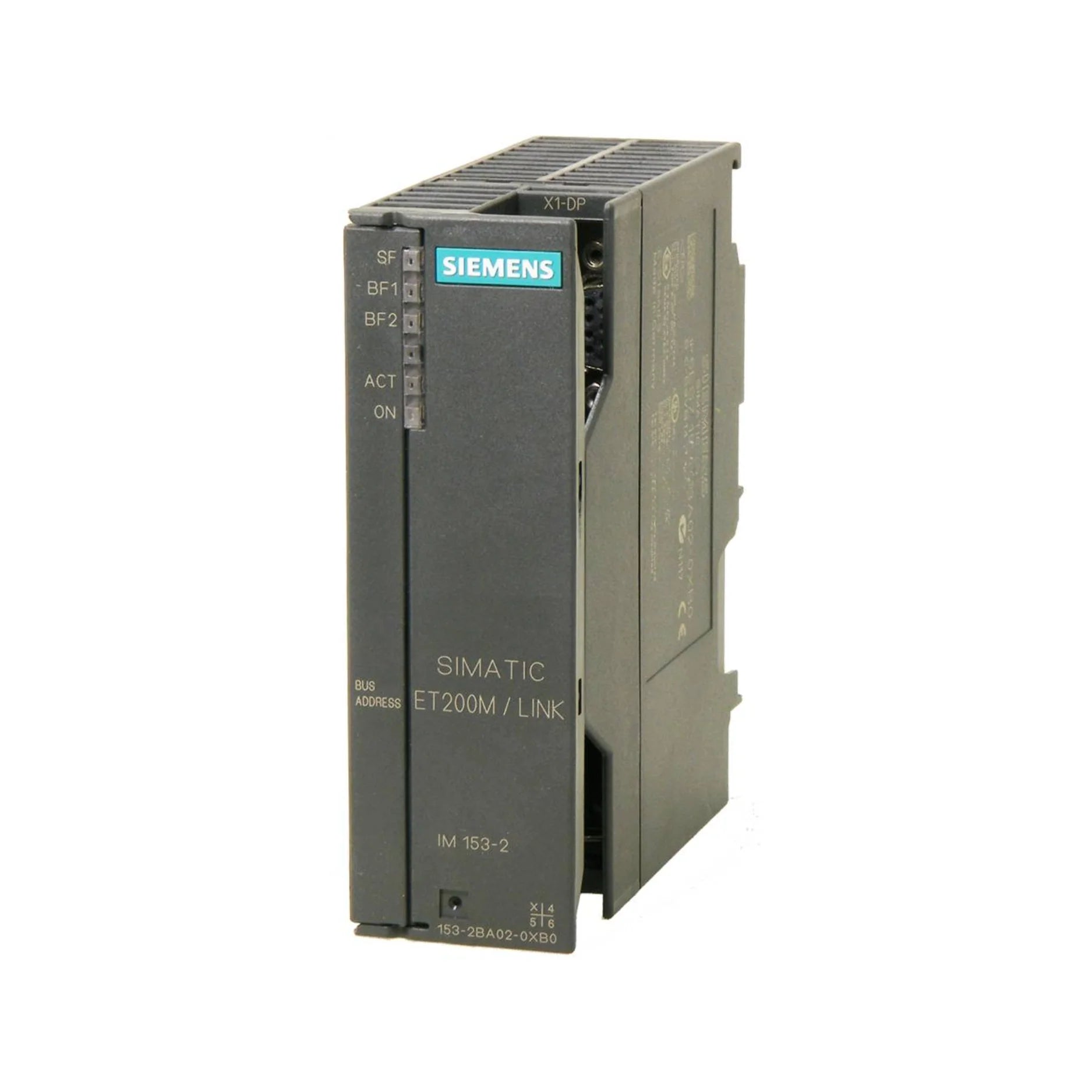

Siemens 6ES7153-2BA02-0XB0

Overview

The Siemens 6ES7153-2BA02-0XB0 is a robust SIMATIC DP, ET 200M Interface Module IM 153-2 High Feature. Engineered for demanding industrial environments, this module provides seamless integration of up to 12 S7-300 modules into a PROFIBUS DP network. It stands out with advanced functionalities like redundancy support and precise timestamping, crucial for applications where high availability and accurate synchronization are paramount. Although this specific model has been discontinued, its legacy of performance and reliability continues through its successor, the 6ES7153-2BA10-0XB0, ensuring Siemens' commitment to cutting-edge industrial automation solutions.

Key Features

• High Module Capacity: Facilitates the connection of up to 12 S7-300 modules, offering unparalleled expansion capabilities and design flexibility for complex systems.
• Integrated Redundancy: Boosts system uptime and reliability by enabling redundant configurations, significantly reducing the risk of costly downtime in mission-critical operations.
• Precision Timestamping: Delivers accurate timestamping for isochronous mode, ensuring precise event recording and synchronization across your automation infrastructure.
• Enhanced Data Processing: Supports sophisticated data handling for HART auxiliary variables and allows the operation of 64-channel modules with 32 signals per slot.
• Seamless System Integration: Incorporates Slave Initiative for Drive ES and Switch ES, promoting effortless integration with other Siemens control and drive systems.
• Robust Communication: Features PROFIBUS DP with automatic baud rate detection, supporting speeds up to 12 Mbit/s for efficient data exchange.
• Industrial-Grade Design: Built to withstand harsh industrial conditions with a wide operating temperature range (0°C to +60°C) and IP20 protection class.

Technical Specifications

• Product Type: ET 200M Interface Module
• Part Number: 6ES7153-2BA02-0XB0
• Power Supply: 24 V DC (rated); operating range 20.4 V to 28.8 V
• Current Consumption: Max. 600 mA
• Output Voltage (Backplane Bus): 5 V DC
• Output Current (Backplane Bus): Up to 1.5 A
• Power Loss: Approx. 5.5 W
• Addressing Volume: 244 bytes for inputs and 244 bytes for outputs
• Interfaces: 1 x PROFIBUS DP (up to 12 Mbit/s with automatic baud rate detection)
• Dimensions (W x H x D): 40 mm x 125 mm x 117 mm
• Weight: Approx. 360 g
• Operating Temperature: 0°C to +60°C
• Protection Class: IP20
• Mounting: DIN rail

Applications

• Industrial Automation Systems: Optimal for integrating multiple S7-300 modules into complex automation architectures, guaranteeing reliable data communication and control.
• Process Control Environments: Particularly well-suited for industries such as chemical, pharmaceutical, and power generation, where high availability and precise process synchronization are essential.
• Manufacturing and Production Lines: Enhances operational flexibility and scalability in diverse manufacturing setups by supporting a wide array of I/O modules.
• Motion Control Systems: Facilitates robust communication within systems requiring synchronous processing and high-speed data exchange.
• Distributed I/O Solutions: Ideal for expanding I/O capabilities over long distances using PROFIBUS DP, reducing wiring and installation costs.

Why Choose This Model?

• Proven Reliability: Part of the trusted Siemens SIMATIC ET 200M series, known for its enduring quality and performance in challenging industrial settings.
• Critical Application Support: Redundancy capabilities and timestamping make it a foundation for applications demanding continuous operation and precise data logging.
• Extensive Compatibility: Designed to seamlessly integrate with a broad range of Siemens S7-300 modules and PROFIBUS DP networks, extending existing system lifespans.
• Robust Engineering: Built with high-quality components and an IP20 protection class, ensuring durability and consistent performance in demanding industrial environments.
• Foundation for Future Upgrades: While discontinued, understanding its capabilities helps in migrating to its successor, the 6ES7153-2BA10-0XB0, which maintains and improves upon its core strengths.

Order Now

Though the Siemens 6ES7153-2BA02-0XB0 Interface Module has been discontinued, its advanced features and robust design make it a valuable component for maintaining existing systems. For new installations or upgrades, we recommend exploring its successor, the Siemens 6ES7153-2BA10-0XB0, which offers enhanced capabilities and continued Siemens reliability. Contact us today or refer to official Siemens documentation for details on current availability and successor models to ensure your industrial automation needs are met with the latest technology.
