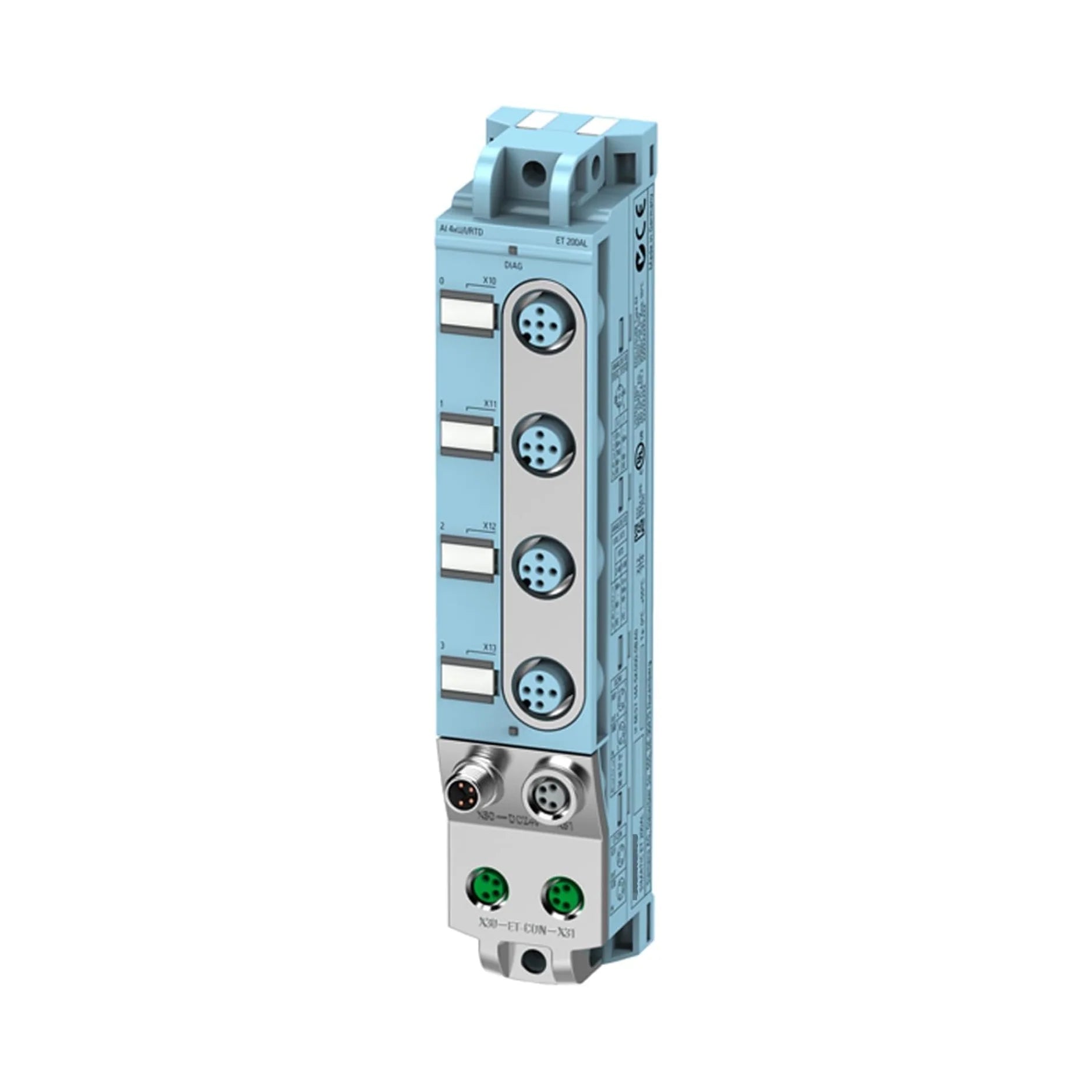

Siemens 6ES7144-5KD00-0BA0

Overview

The Siemens 6ES7144-5KD00-0BA0 is a cutting-edge SIMATIC ET 200AL analog input module engineered for exceptional performance in diverse industrial environments. This robust module provides four highly versatile analog input channels, each interfaced through secure M12 connectors. It seamlessly supports a wide array of signal types, including voltage, current, and resistance temperature detectors (RTDs), making it an indispensable component for comprehensive data acquisition. Boasting an impressive IP67 rating, this module is built to withstand extreme conditions, ensuring reliable operation even in applications demanding superior ingress protection against dust and water. Its compact design belies its powerful capabilities, offering a space-saving yet immensely durable solution for modern automation systems.

Key Features

• Quad-Channel Versatility: Equipped with four independent analog input channels, adaptable for various measurement requirements.
• Robust M12 Connectivity: Features industry-standard M12 connectors for secure, reliable, and quick connections in demanding settings.
• Broad Signal Compatibility: Supports a wide range of input signals, including voltage, current (2-/4-wire), and RTD (2-/3-wire) for maximum flexibility.
• High-Precision 16-bit Resolution: Delivers exceptionally accurate and precise measurements, crucial for critical industrial processes.
• IP67 Rated Durability: Offers superior protection against dust and water ingress, making it suitable for harsh and challenging environmental conditions.
• Efficient Per-Channel Diagnostics: Provides configurable diagnostics for each channel, simplifying monitoring and streamlining maintenance tasks.
• Hardware Interrupt Support: Enables prompt responses to critical events with hardware interrupts on predefined limit violations.

Technical Specifications

• Model: 6ES7144-5KD00-0BA0
• Series: SIMATIC ET 200AL
• Input Channels: 4
• Connectors: M12
• Signal Types: Voltage, Current (2-/4-wire), Resistance, RTD (2-/3-wire)
• Resolution: 16-bit
• Supply Voltage: 24 V DC (20.4 V to 28.8 V)
• Current Consumption: 35 mA (without load)
• Dimensions: 30 mm (W) x 159 mm (H)
• Protection Rating: IP67
• Operating Temperature: -25°C to +70°C
• Certifications: CE, RoHS compliant

Applications

• Industrial Automation Systems: Essential for precise data acquisition in complex manufacturing and processing plant control systems.
• Critical Process Monitoring: Facilitates accurate, real-time monitoring of vital parameters such as temperature, pressure, and flow in sensitive processes.
• Advanced Machine Building: Integrates seamlessly into machinery for reliable, real-time data collection and in-depth analysis.
• Demanding Harsh Environments: Perfectly suited for outdoor installations, washdown applications, and other challenging settings requiring significant ingress protection.
• Energy Management: Supports monitoring of energy consumption and other electrical parameters in industrial facilities.

Why Choose This Model?

• Unwavering Reliability: Engineered by Siemens, a leader in industrial automation, ensuring consistent and dependable performance in the most demanding conditions.
• Exceptional Flexibility: Its broad support for various input signals and configurable options make it highly adaptable to a wide range of application requirements.
• Superior Durability: The robust IP67-rated construction guarantees unparalleled protection against environmental factors, extending the module's lifespan.
• Precision at its Core: High-resolution 16-bit inputs ensure that every measurement is accurate and detailed, providing trustworthy data for critical decisions.
• Optimized for Efficiency: Features like per-channel diagnostics and hardware interrupt support contribute to reduced downtime and streamlined maintenance efforts.

Order Now

Elevate your industrial data acquisition capabilities with the Siemens 6ES7144-5KD00-0BA0 SIMATIC ET 200AL analog input module. Experience the pinnacle of reliable performance, versatile functionality, and robust design, all meticulously tailored to meet the rigorous demands of modern automation and control systems. Invest in precision, durability, and efficiency for your operations today.
