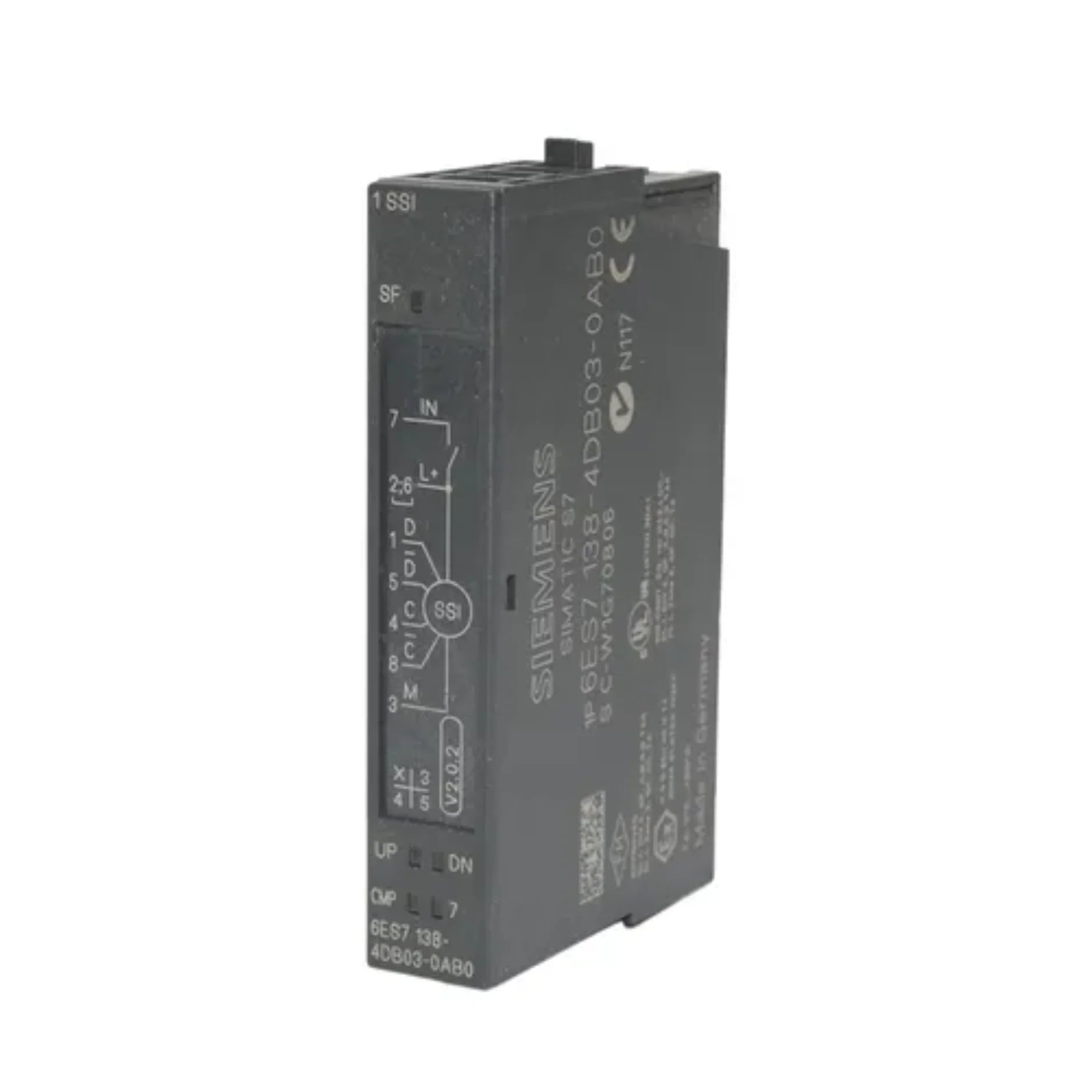

Siemens 6ES7138-4DB03-0AB0

Overview

The Siemens 6ES7138-4DB03-0AB0 is a state-of-the-art electronic module from the renowned SIMATIC DP ET 200S series, meticulously engineered to provide seamless and high-precision interfacing with absolute encoders. This compact yet powerful module utilizes the Synchronous Serial Interface (SSI) protocol, enabling highly accurate position sensing crucial for a vast array of industrial automation applications. Supporting a robust 25-bit data format and operating at an impressive 1 MHz clock frequency, it ensures rapid and reliable data acquisition. Its ultra-compact 15 mm width is a significant advantage, optimizing valuable space within control cabinets and contributing to more efficient and streamlined industrial setups.

Key Features

• SSI Protocol Integration: Designed for effortless connectivity with absolute encoders using the industry-standard SSI communication for flawless data exchange.
• Superior Data Resolution: Capable of managing 25-bit data inputs, guaranteeing exceptionally precise and detailed position measurements for critical applications.
• High-Speed Data Transmission: Features a rapid 1 MHz clock rate, facilitating instantaneous data updates and ensuring real-time control and monitoring.
• Space-Saving Design: With its slim 15 mm width, this module offers significant space optimization within control panel installations, allowing for denser and more organized layouts.
• Integrated Digital Input: Includes one dedicated digital input, providing enhanced control flexibility and additional monitoring capabilities for diverse operational requirements.
• Reliable Clock Synchronization: Incorporates advanced clock synchronization features to ensure perfectly coordinated and synchronous data acquisition processes.
• Robust Industrial Compatibility: Engineered for resilience, it operates flawlessly within standard industrial environments, ensuring consistent performance under challenging conditions.

Technical Specifications

• Model: 6ES7138-4DB03-0AB0
• Series: SIMATIC DP ET 200S
• Interface: Synchronous Serial Interface (SSI)
• Data Width: 25 bits
• Clock Frequency: 1 MHz
• Module Width: 15 mm
• Digital Inputs: 1
• Supply Voltage: 24 V DC (permissible range: 20.4 V to 28.8 V)
• Encoder Supply: 24 V DC with short-circuit protection, max. 500 mA output current
• Input Voltage Range: Signal "0": -30 V to +5 V, Signal "1": +11 V to +30 V
• Input Current: Signal "0": Max. 2 mA, Signal "1": Typically 9 mA
• Input Delay: Max. 300 µs for both "0" to "1" and "1" to "0" transitions
• Cable Length: Up to 50 m (shielded) for digital inputs; up to 320 m (shielded) for encoder signals at 125 kHz
• Diagnostics: LED indicators for group error (SF), digital input status, forward counting, and backward counting
• Operating Temperature: Suitable for standard industrial environments
• Dimensions: 15 mm (W) x 81 mm (H) x 52 mm (D)
• Weight: Approximately 40 g

Applications

• Industrial Automation Systems: Provides critical and accurate position feedback for enhancing the precision and efficiency of machinery, robotics, and automated production lines.
• Material Handling & Logistics: Indispensable for ensuring precise control in sophisticated conveyor systems, automated storage and retrieval systems (AS/RS), and sorting applications.
• Process Control & Manufacturing: Significantly improves measurement accuracy in diverse industries including discrete manufacturing, intricate packaging processes, and high-speed assembly lines.
• Encoder-Based Sensing: Ideal for any application requiring reliable and high-resolution position, angle, or distance sensing using SSI-compatible absolute encoders.
• Quality Assurance: Supports precise dimensional control and defect detection systems where exact position monitoring is paramount.

Why Choose This Model?

• Unmatched Precision: Leverage the benefits of 25-bit data input, providing an unparalleled level of exactness for all your position sensing needs.
• Operational Efficiency: The high-speed 1 MHz clock rate ensures that data is processed and updated in real-time, leading to superior efficiency and responsiveness in your operations.
• Optimized Space Utilization: Its exceptionally compact 15 mm width design is purpose-built to maximize space within control cabinets, simplifying installation and reducing footprint.
• Industrial-Grade Reliability: Engineered with robust construction and featuring built-in diagnostic capabilities, this module guarantees dependable and consistent performance even in the most demanding industrial environments.
• Seamless Integration: Designed for easy integration into existing SIMATIC DP ET 200S systems, ensuring a smooth upgrade or expansion of your automation infrastructure.
• Siemens Quality Assurance: Benefit from the legendary quality and support synonymous with the Siemens brand, ensuring a long-lasting and high-performing component for your critical systems.

Order Now

Elevate your industrial automation capabilities with the Siemens 6ES7138-4DB03-0AB0 SSI module. Integrate this cutting-edge electronic module into your system to achieve precise, reliable, and high-resolution position measurements. Enhance your operational efficiency, precision, and control with this compact, high-performance solution, specifically tailored for the demanding requirements of modern industrial applications. Secure your competitive edge by deploying Siemens' trusted technology today!
