SIEMENS 6ED1055-1NB10-0BA2

Overview

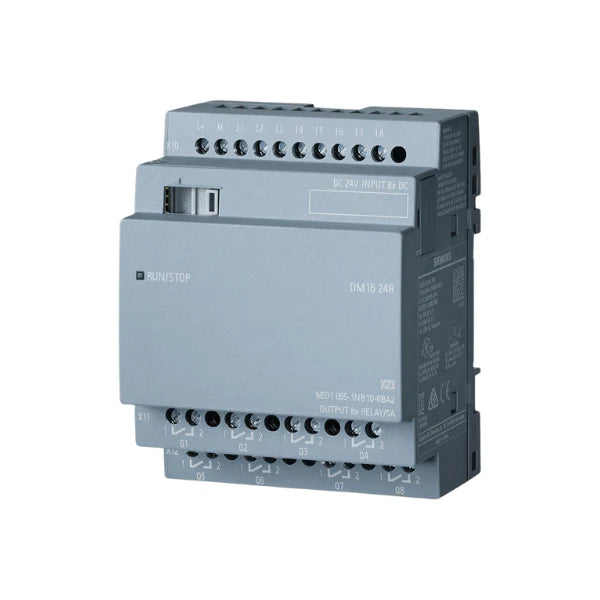

The SIEMENS 6ED1055-1NB10-0BA2 LOGO! Expansion Module is an essential component for extending the capabilities of your Siemens LOGO! logic modules. Engineered for superior performance and seamless integration, this module provides a robust solution for a wide array of automation tasks. With its 8 digital inputs (DI) and 8 relay outputs (DO), the 6ED1055-1NB10-0BA2 offers unparalleled flexibility in signal processing, making it ideal for small to medium-sized automation systems, sophisticated building management, and a variety of industrial control applications. Enhance your control systems with this high-quality, reliable expansion unit designed to meet the demands of modern automation environments.

Key Features

• Model Number: SIEMENS 6ED1055-1NB10-0BA2, ensuring compatibility and reliability within the LOGO! series.
• Enhanced I/O Capacity: Features 8 digital inputs (24V DC) and 8 robust relay outputs (up to 10A per channel) for comprehensive control.
• Versatile Voltage Support: Operates efficiently with a 24V DC input and supports output voltages up to 230V AC/DC, catering to diverse electrical systems.
• Compact & Efficient Design: IP20 protection class and DIN rail mounting offer space-saving installation in control panels.
• Broad Application Spectrum: Suitable for building automation, industrial control, energy management, security systems, and agricultural automation.
• Reliable Performance: Fast switching response times and high-quality relay outputs guarantee dependable operation in critical automation tasks.

Technical Specifications

• Input Voltage: 24V DC
• Output Voltage: Up to 230V AC/DC
• Output Current: Maximum 10A per relay channel
• Response Time: Swift switching for precise and reliable automation processes
• Operating Temperature: -20°C to +55°C, ensuring robust performance in various environmental conditions
• Protection Class: IP20
• Mounting Type: Standard DIN rail for easy and secure installation
• Compliance Standards: CE, UL, RoHS certified, guaranteeing adherence to international safety and environmental regulations.

Applications

• Advanced Building Automation: Perfect for sophisticated lighting systems, comprehensive HVAC control, and integrated building management.
• Industrial Process Control: Optimizes machine automation, production line management, and diverse process control operations in manufacturing.
• Smart Energy Management: Facilitates intelligent power distribution systems, energy monitoring, and optimization for sustainable operations.
• Integrated Security Solutions: Ideal for access control systems, alarm automation, and perimeter security in commercial and residential settings.
• Agricultural Automation: Enhances irrigation systems, greenhouse climate control, and automated feeding systems for modern farming.
• Water Treatment Plants: Controls pumps, valves, and monitoring equipment for efficient water management.

Why Choose This Model?

• Seamless LOGO! Integration: Specifically designed to effortlessly integrate with existing Siemens LOGO! controllers, expanding their potential without complex configurations.
• Unmatched Reliability: Built with SIEMENS's renowned quality, ensuring long-term stable operation and minimal maintenance, even in demanding environments.
• Exceptional Flexibility: The 8DI/8DO configuration offers extensive possibilities for customizing automation tasks, adapting to evolving project requirements.
• Space-Saving Efficiency: Its compact form factor and DIN rail mounting simplify installation and optimize space usage in crowded control cabinets.
• Future-Proof Your Systems: Invest in a module that grows with your needs, providing scalable expansion for future automation initiatives.
• Certified for Global Use: With CE, UL, and RoHS compliance, this module is ready for deployment in a wide range of international projects, meeting strict regulatory standards.

Order Now

Elevate your automation projects with the SIEMENS 6ED1055-1NB10-0BA2 LOGO! Expansion Module. Experience reliable performance, flexible control, and seamless integration for your industrial and building automation needs. Add this essential expansion module to your system today and unlock new levels of efficiency and control.

Discover more about the entire Siemens LOGO! Logic Module family or explore our complete range of Siemens PLCs to find the perfect solutions for your automation demands.
