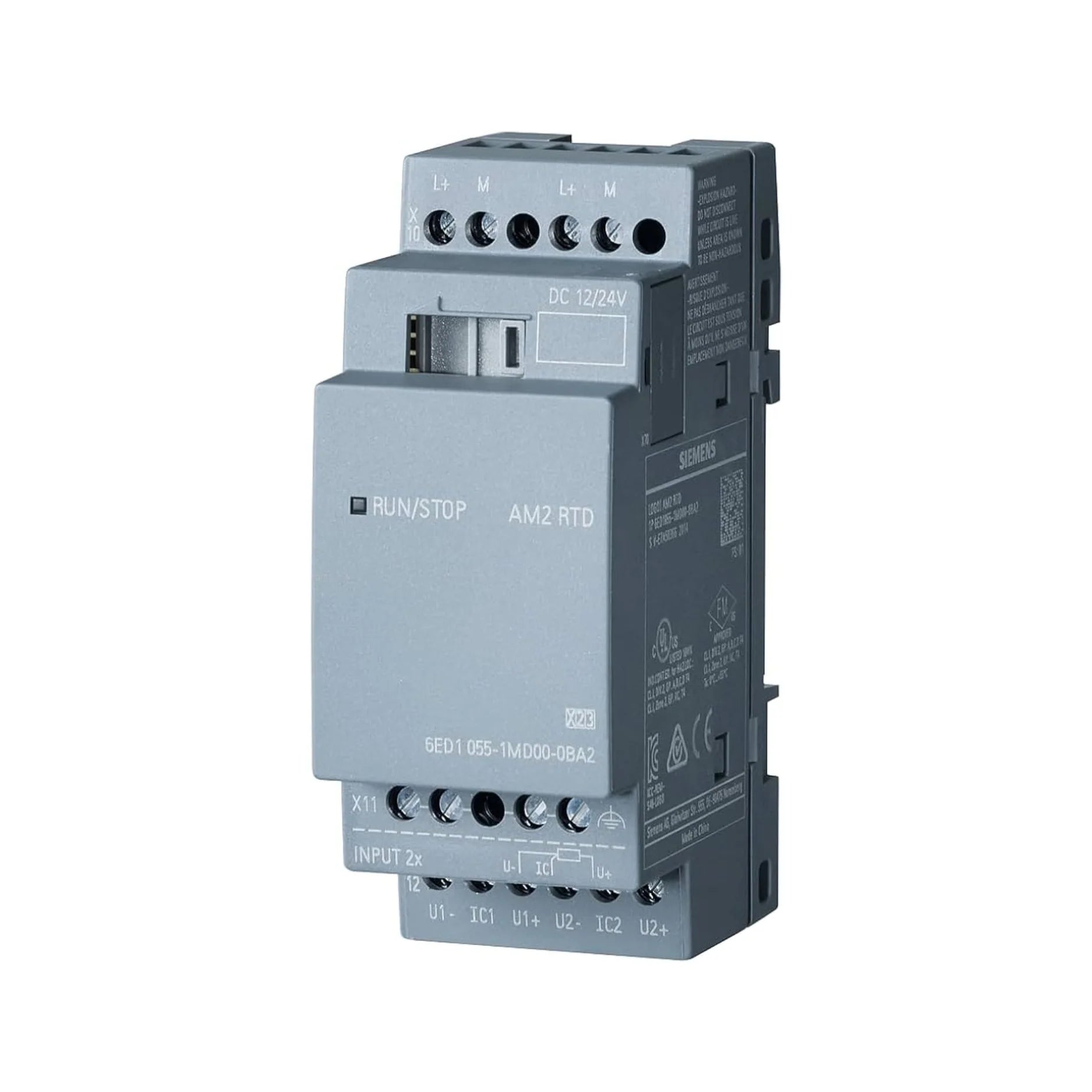

Siemens 6ED1055-1MD00-0BA2

Overview

Unlock precise temperature control and enhance your LOGO! 8 logic module capabilities with the Siemens 6ED1055-1MD00-0BA2 LOGO! AM2 RTD Expansion Module. Engineered for reliability and accuracy, this essential module integrates seamlessly into your existing industrial automation setups. Designed to accommodate two analog inputs specifically for Resistance Temperature Detectors (RTDs) like Pt100 and Pt1000 sensors, it provides superior temperature monitoring across diverse applications. Operating efficiently on a 12/24V DC power supply, the 6ED1055-1MD00-0BA2 ensures broad compatibility and consistent performance within standard industrial environments. Its robust design and Siemens' renowned engineering guarantee long-term stability and precise data acquisition for critical processes.

Key Features

• Dedicated RTD Analog Inputs: Equipped with 2 inputs perfectly suited for Pt100 and Pt1000 RTD sensors, ensuring accurate temperature detection.
• Wide Temperature Measurement Range: Monitors temperatures from -50°C to +200°C, making it versatile for a multitude of industrial scenarios.
• Exceptional Accuracy: Delivers high-precision temperature readings crucial for maintaining optimal process control and operational efficiency.
• Space-Saving Design: Its compact form factor (90 mm H x 35.5 mm W x 58 mm D) allows for efficient use of valuable control cabinet space.
• Effortless Integration: Guarantees simple and rapid connection to LOGO! 8 base modules, significantly extending their analog input capacity.
• Broad Power Compatibility: Functions flawlessly with standard 12/24V DC power supplies, simplifying installation and integration.
• Industrial Durability: Engineered for an operating temperature range of 0°C to 55°C, ensuring robust performance in demanding industrial settings.

Technical Specifications

• Product Model: Siemens 6ED1055-1MD00-0BA2
• Product Type: LOGO! AM2 RTD Expansion Module
• Number of Analog Inputs: 2 (for RTD sensors: Pt100/Pt1000)
• Power Supply: 12/24V DC
• Temperature Measurement Range: -50°C to +200°C
• Accuracy: High precision for reliable temperature monitoring
• Dimensions (H x W x D): 90 mm x 35.5 mm x 58 mm
• Net Weight: Approximately 0.128 kg
• Mounting: 35 mm DIN rail
• Certifications: CE, UL, and various other international standards

Applications

• Precision Temperature Monitoring: Indispensable for applications demanding exact temperature measurement and rigorous control, ensuring product quality and process integrity.
• Advanced Industrial Automation: Significantly enhances the functionality and versatility of LOGO! 8 modules within complex automated systems, enabling more sophisticated control strategies.
• Optimized HVAC Systems: Perfectly suited for monitoring and precisely regulating heating, ventilation, and air conditioning systems in commercial and industrial buildings, leading to improved energy efficiency and comfort.
• Critical Process Control: A vital component in diverse industrial processes where accurate temperature regulation is paramount for safety, efficiency, and adherence to operational parameters.
• Energy Management: Aids in optimizing energy consumption by providing accurate temperature data for intelligent system adjustments.
• Environmental Monitoring: Ideal for monitoring ambient or specific environmental temperatures in sensitive areas.

Why Choose This Model?

• Siemens Reliability: Benefit from the unparalleled quality and engineering excellence synonymous with the Siemens brand, ensuring a dependable and long-lasting solution.
• Enhanced Precision: Gain superior accuracy in temperature sensing with dedicated RTD inputs, leading to better decision-making and tighter process control.
• Seamless Compatibility: Designed for effortless integration with your existing LOGO! 8 infrastructure, minimizing installation time and maximizing uptime.
• Future-Proof Your System: Expand the capabilities of your logic modules, allowing for greater flexibility and scalability as your automation needs evolve.
• Robust and Certified: Built to withstand industrial environments and backed by international certifications (CE, UL), providing peace of mind regarding safety and performance.
• Optimized for Efficiency: Its compact design and ease of use contribute to more efficient panel layouts and streamlined operational processes.

Order Now

Elevate your industrial automation and temperature control capabilities. Order the Siemens 6ED1055-1MD00-0BA2 LOGO! AM2 RTD Expansion Module today and experience the precision, reliability, and seamless integration that only Siemens can deliver. Expand your LOGO! 8 system with confidence and optimize your critical processes for superior performance.
