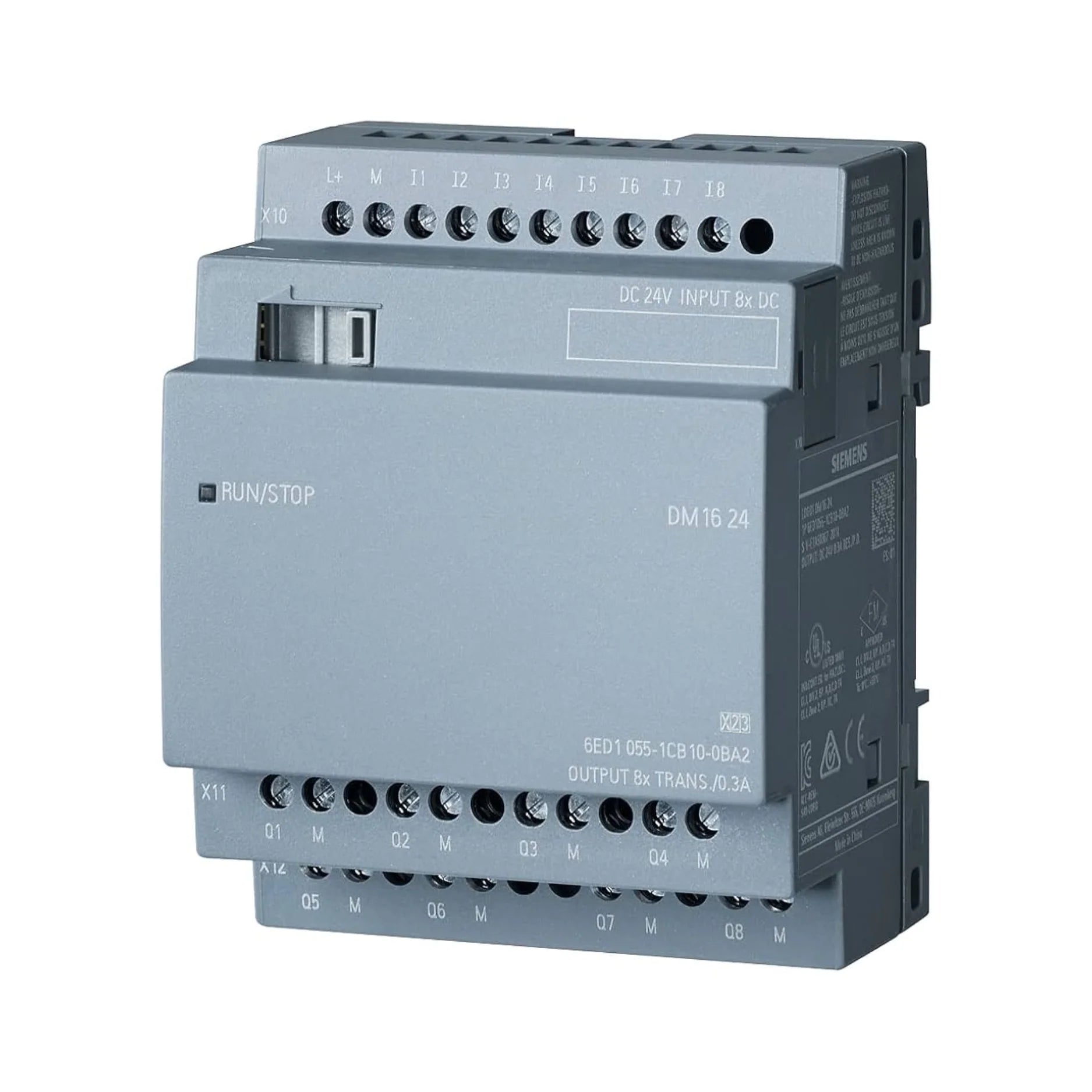

Siemens 6ED1055-1CB10-0BA2

Overview

The Siemens 6ED1055-1CB10-0BA2 LOGO! DM16 24 Expansion Module is an indispensable component for extending the capabilities of your existing LOGO! 8 logic modules. Engineered for robust industrial applications, this versatile module significantly enhances control and monitoring functionalities by adding 8 digital inputs (DI) and 8 digital outputs (DO). Operating flawlessly within 24 V DC systems, it's the perfect solution for a wide array of automation tasks, from intricate machinery control to comprehensive building management. Its thoughtful design prioritizes both efficiency and resilience, ensuring optimal performance even in the most demanding operational environments. Whether you're expanding an existing setup or designing a new automation system, the 6ED1055-1CB10-0BA2 offers unparalleled reliability and seamless integration.

Key Features

• Expanded I/O Capacity: Effortlessly integrate an additional 8 digital inputs and 8 digital outputs, dramatically increasing your LOGO! 8 system's control and monitoring potential.
• Seamless LOGO! 8 Integration: Designed for perfect compatibility with LOGO! 8 logic modules, guaranteeing a smooth and straightforward installation process and configuration.
• Robust Industrial Design: Built to endure the rigors of industrial settings, featuring a compact yet durable construction that ensures long-term, reliable operation.
• Efficient Space Utilization: Its compact form factor is optimized for control panels, allowing for maximum functionality within minimal space constraints.
• 24V DC Power Compatibility: Specifically engineered for stable and efficient operation with 24 V DC power supplies, a common standard in industrial automation.
• User-Friendly Interface: Equipped with clear status indicators and practical screw terminal connections, simplifying wiring, troubleshooting, and ongoing maintenance.
• Enhanced System Versatility: Transforms basic LOGO! 8 setups into more comprehensive automation solutions, accommodating a broader range of applications.

Technical Specifications

• Product Type: LOGO! DM16 24 Expansion Module
• Part Number: 6ED1055-1CB10-0BA2
• Brand: SIEMENS
• Power Supply: 24 V DC
• Digital Inputs: 8 channels
• Digital Outputs: 8 channels (transistor outputs)
• Input Voltage Range: 0 to 24 V DC
• Output Voltage Range: 24 V DC
• Output Current per Channel: Up to 0.3 A
• Mounting: DIN rail
• Dimensions (W x H x D): 71.5 mm x 90 mm x 58 mm
• Net Weight: Approximately 227 g
• Protection Rating: IP20
• Operating Temperature Range: 0°C to +55°C
• Certifications: CE, cULus

Applications

• Advanced Industrial Automation: Significantly expands I/O capabilities for intricate machinery control, process automation, and manufacturing lines, enabling more complex and efficient operations.
• Intelligent Building Management Systems (BMS): Provides enhanced control over critical building functions such as lighting, HVAC systems, access control, and environmental monitoring, leading to more responsive and energy-efficient buildings.
• Comprehensive Environmental Monitoring: Facilitates the seamless integration of a wider array of sensors and actuators, creating robust solutions for detailed environmental data collection and automated responses in diverse settings.
• Custom Control Panel Development: Offers vital flexibility for bespoke automation projects, allowing engineers to design and implement highly specialized control systems tailored to unique requirements.
• Energy Management Solutions: Enables the expansion of monitoring points for energy consumption, allowing for more granular control and optimization strategies in industrial and commercial facilities.

Why Choose This Model?

• Unmatched Siemens Quality: Benefit from Siemens' legendary engineering and manufacturing standards, ensuring a product that delivers consistent, reliable performance for years to come.
• Future-Proof Your Automation: The 6ED1055-1CB10-0BA2 allows you to easily scale your LOGO! 8 system, extending its lifespan and adapting it to evolving operational demands without a complete overhaul.
• Simplified Integration: Designed specifically for the LOGO! 8 series, this module guarantees a hassle-free setup, reducing installation time and potential compatibility issues.
• Space-Saving Efficiency: Its compact footprint is a major advantage in control cabinets where space is at a premium, allowing for more components or a more streamlined layout.
• Increased Operational Flexibility: With expanded digital inputs and outputs, you gain greater control and monitoring capabilities, leading to more precise and responsive automation processes.
• Global Certifications: Carrying CE and cULus certifications, this module meets stringent international safety and performance standards, giving you peace of mind.

Order Now

Elevate your industrial automation and control systems today with the Siemens 6ED1055-1CB10-0BA2 LOGO! DM16 24 Expansion Module. Experience the perfect blend of robust performance, seamless integration, and advanced functionality that only Siemens can deliver. Expand your capabilities, simplify your operations, and ensure the reliability of your systems. Add this essential expansion module to your toolkit and unlock the full potential of your LOGO! 8 setup.
