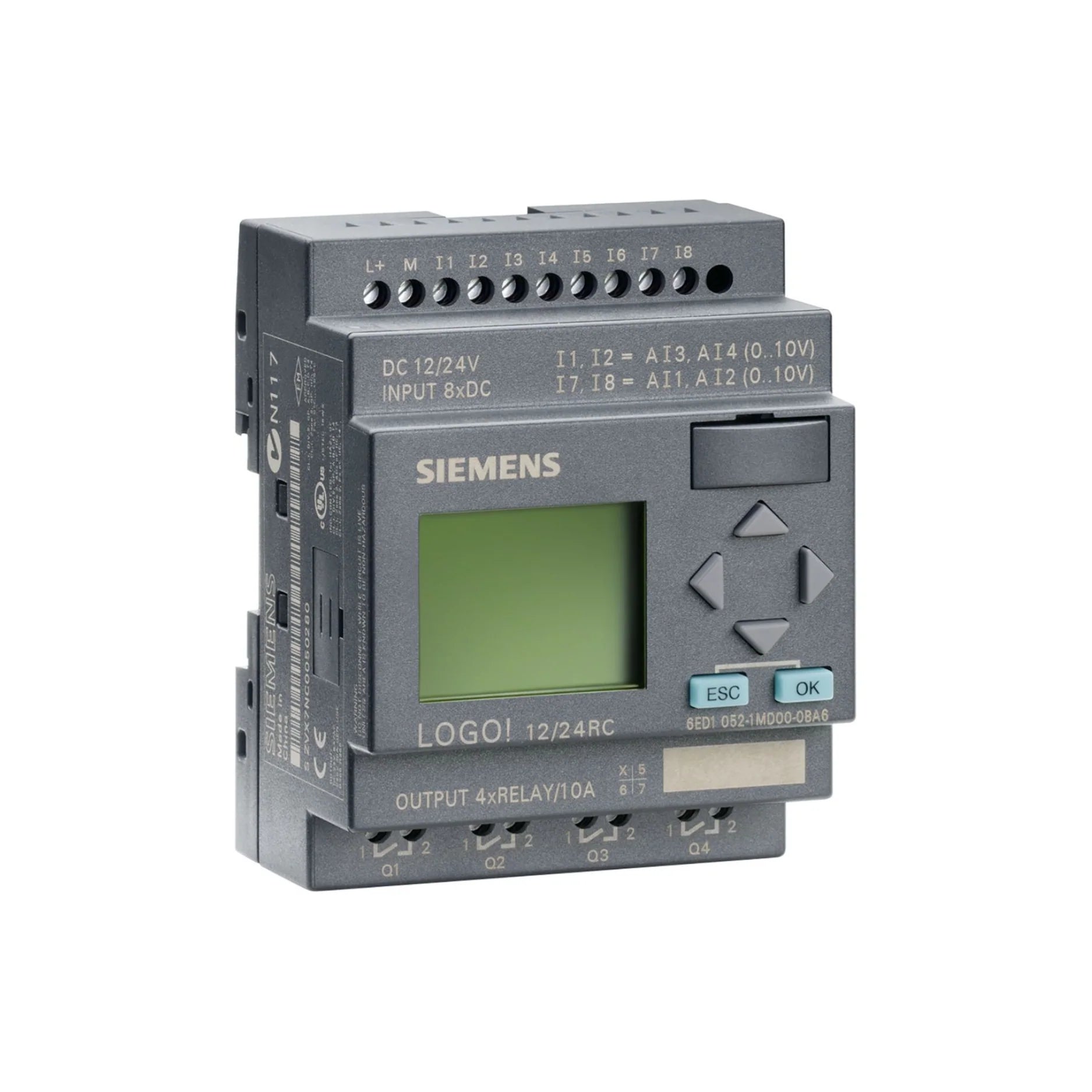

Siemens 6ED1052-1MD00-0BA6

Overview

The Siemens 6ED1052-1MD00-0BA6 LOGO! 12/24RC Logic Module, a respected component within the renowned LOGO! series, was engineered for precision and adaptability in small-scale automation projects. While officially discontinued as of September 30, 2023, this module's reputation for compact design and versatile functionality persists. Integrated with a clear display, it provided a robust array of inputs and outputs, making it a cornerstone for various control applications across industries. Its easy programmability and expandability made it a favorite for optimizing processes and reducing complexity in diverse environments. Though superseded by newer technologies, understanding the capabilities of the 6ED1052-1MD00-0BA6 offers valuable insight into the evolution of Siemens' industrial automation solutions.

Key Features

• Integrated I/O Flexibility: Equipped with 8 digital inputs, including 4 configurable as analog inputs (0-10 V), and 4 powerful relay outputs rated for up to 10 A (resistive load) and 3 A (inductive load), offering broad control possibilities.
• Wide Voltage Compatibility: Operates efficiently across a 12/24 V DC power supply, supporting a flexible voltage range from 10.8 V to 28.8 V DC, ensuring adaptability to different power setups.
• Robust Program Memory: Features a substantial memory capacity to support up to 200 function blocks, enabling the implementation of intricate and sophisticated control programs.
• Clear Integrated Display: An intuitive integrated display allows for direct monitoring of operational status and straightforward on-device configuration without the need for external tools.
• Modular Expansion Capability: Designed for modular expandability with compatible add-on modules, although specific compatibility may vary based on the version, allowing for increased functionality as needs evolve.
• Compact & Efficient Design: Its compact form factor is ideal for space-constrained applications, without compromising on power or performance.

Technical Specifications

• Digital Inputs: 8 (4 configurable as 0-10 V analog inputs)
• Digital Outputs: 4 relay outputs
• Output Current Capacity: 10 A (resistive load), 3 A (inductive load)
• Power Supply: 12/24 V DC
• Voltage Range: 10.8 V to 28.8 V DC
• Program Memory: 200 function blocks
• Mounting: 35 mm DIN rail (occupies 4 spacing units)
• Dimensions (W x H x D): 72 mm x 90 mm x 55 mm
• Operating Temperature: 0°C to +55°C
• Protection Rating: IP20
• Product Status: Discontinued as of September 30, 2023, without a direct replacement.

Applications

• Building Automation Systems: Perfectly suited for the precise control of lighting circuits, heating, ventilation, and air conditioning (HVAC) systems, and access control mechanisms, enhancing building efficiency.
• Industrial Machinery Control: Ideal for automating a wide array of industrial equipment, including conveyor systems, small assembly lines, and process machinery, improving operational throughput.
• Environmental Monitoring & Management: Utilized in critical applications like water treatment facilities and agricultural automation to monitor and control environmental parameters, ensuring optimal conditions.
• Energy Management Solutions: Instrumental in monitoring and regulating energy consumption across various facilities, contributing to significant energy savings and sustainable practices.
• Custom Small-Scale Industrial Projects: Its versatility makes it an excellent choice for a variety of custom control tasks in smaller industrial settings where programmable logic and compact design are paramount.

Why Choose This Model?

• Proven Siemens Reliability: As a Siemens product, the 6ED1052-1MD00-0BA6 embodies the brand's commitment to quality, durability, and reliable performance, ensuring long-term operational stability.
• Versatile Automation Capabilities: Despite its discontinuation, its robust feature set provided exceptional versatility for a wide range of small and medium-sized automation tasks, making it a valuable asset in its time.
• Ease of Integration: Designed for straightforward integration into existing control systems and new setups, minimizing installation time and complexity.
• Cost-Effective Solution: Offered a highly cost-effective solution for automation needs, delivering powerful functionality without the overhead of more complex PLC systems.
• Comprehensive Documentation & Support: Siemens' extensive documentation and authorized distributor network ensured comprehensive support and resources for users, facilitating easy setup and troubleshooting.

Order Now

While the Siemens 6ED1052-1MD00-0BA6 LOGO! 12/24RC Logic Module has been officially discontinued, we understand your potential need for this specific model for existing systems or legacy projects. We encourage you to consult Siemens' official channels or contact authorized Siemens distributors for guidance on alternative, compatible replacement products or potential upgrades that align with current technological advancements. Our team can also help guide you through available options if you reach out, ensuring your automation needs are met with modern, efficient solutions. Explore our range of current Siemens LOGO! Logic Modules and other Siemens PLC families to find the perfect match for your requirements today.
